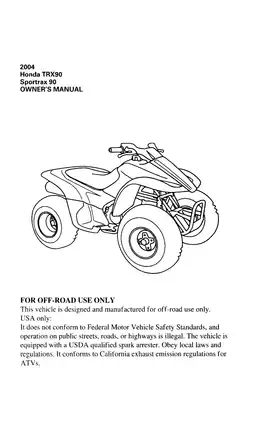

2003–2004 Honda TRX90 Sportrax 90 ATV Owner's Manual (P/N 31HF7710)

This Honda owner's manual for the 2003–2004 TRX90 Sportrax 90, P/N 31HF7710, covers operation, rider safety, and routine maintenance.

PDF navigation and page coverage: Text search and embedded PDF bookmarks are not available. The file omits printed pages 28, 42, 146, and 180–189, including the Consumer Information section listed in the contents.

• Throttle and starting: Adjustable throttle limiter, air intake restrictor, recoil-starter operation, throttle-cable inspection, and starting guidance for different temperatures and a flooded engine.

• Engine maintenance: Oil checks and changes, main and sub air-cleaner servicing, spark-plug inspection and replacement, engine idle-speed adjustment, and spark-arrester cleaning.

• Clutch and drive chain: Shift-activated wet multiplate clutch adjustment, chain-slack adjustment, chain and sprocket inspection, lubrication guidance, and chain-slider wear limits.

• Mechanical drum brakes: Front and rear lever and pedal freeplay adjustments, external brake-shoe wear indicators, and rear brake water-drain checks.

• Tires and wheels: Cold inflation specifications, tread-wear illustrations, tire repair guidance, and emergency wheel removal and installation procedures.

• Inspection and reference: Pre-ride checklists, maintenance schedule charts, component-location diagrams, gear-shifting sequence views, and factory capacity and torque specifications.

The operating guidance is written for owners and supervising parents, while the maintenance tasks require the mechanical skills and tools specified for each procedure.

Youth Controls and Starting Checks

The control-location views identify the fuel valve, choke lever, ignition switch, neutral indicator, and braking controls. Rider-readiness guidance addresses the Y-12 youth category and adult supervision. Follow the manual's age recommendations, off-road restrictions, and no-passenger warnings.

Throttle-limiter adjustment views accompany the explanation of how the limiter and air intake restrictor affect engine response. Understanding their interaction helps distinguish restriction-related rough running from a fuel-system problem before planning a repair.

The no-start section covers fuel delivery, the tank breather, spark-plug connections, and basic ignition checks. Separate flooded-engine guidance addresses unsuccessful starting attempts.

Engine Service and Repair Limits

Air-cleaner instructions cover the main filter element and sub air cleaner, including foam inspection, oiling, and sealing-surface care. Oil recommendations explain which lubricant types and additives can interfere with wet-clutch operation.

Spark-plug drawings identify the electrodes and gap. The accompanying installation cautions explain how incorrect tightening can damage the piston or plug threads.

The centrifugal oil filter and oil strainer appear in the maintenance schedule, but their cleaning procedures are not included. Recoil-starter coverage concerns operation rather than internal repair.

Valve-clearance adjustment, internal clutch repair, and high-altitude carburetor jet installation are referred to a separate Honda service manual. Full engine overhaul procedures and wiring diagrams are outside this owner's manual's scope.

Drive Chain, Drum Brakes, and Tires

Chain condition: Chain-slack diagrams, chain-length checks, sprocket-tooth comparisons, and chain-slider limits distinguish adjustment needs from wear requiring replacement. Chain-care notes warn that certain solvents and pressure washing can damage the sealing O-rings.

Brake inspection: Freeplay drawings distinguish the front lever, rear lever, and rear pedal adjustments. External wear indicators allow brake-shoe assessment without disassembly, while the rear brake drainage check identifies water entry requiring dealer attention to the seals.

Tire and wheel service: Tread-wear illustrations accompany inspection and replacement guidance. The text distinguishes temporary puncture repair from permanent professional repair; wheel-removal instructions are provided for emergency service.

Storage and Technical Reference

Transport and storage coverage includes tie-down locations, carburetor draining, seasonal preparation, and return-to-service checks. Vehicle-identification illustrations locate the frame number, engine number, and color label used when ordering parts.

Reference tables cover fuel and oil capacities, lubricant recommendations, spark-plug specifications, transmission ratios, tire pressures, and selected fastener torques. Emission-control explanations describe secondary air injection and the closed-crankcase system.

English PDF and Included Reference Pages

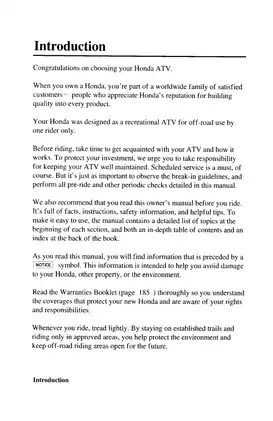

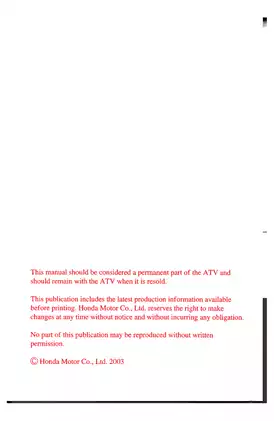

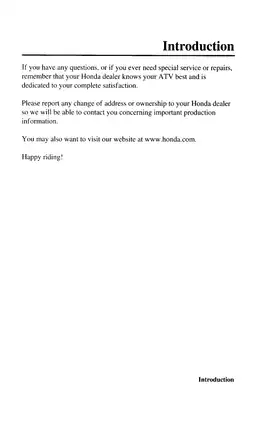

One printable English-language file is supplied as a 207-page PDF: 193 numbered manual pages, nine cover and introductory pages, four Quick Reference pages, and one back cover. These introductory and reference pages are already included in the total.
