2004 Honda CBR1000RR Fireblade Service & Repair Manual

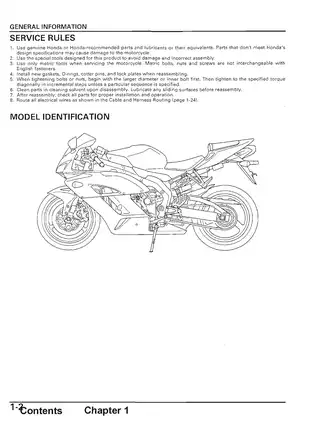

This March 2004 Honda CBR1000RR Fireblade service and repair manual covers the CBR1000RR-4, with A, AC and CM type specifications and wiring information.

• Engine and drivetrain: Cylinder-head and valve service, camshaft timing, crankshaft and piston inspection, clutch repair, transmission disassembly, and balancer adjustment.

• PGM-FI and exhaust controls: MIL troubleshooting charts, sensor and injector tests, fuel-pressure checks, IAC/starter-valve synchronization, and EGCV cable adjustment.

• Cooling and lubrication: Oil-pressure diagnosis, pump and strainer inspection, radiator-cap testing, thermostat checks, and coolant replacement with air bleeding.

• Suspension and steering: Fork disassembly and seal replacement, steering-head bearings, swingarm and linkage service, plus HESD fault isolation and function testing.

• Hydraulic brakes: Radial-mounted front caliper repair, front and rear master-cylinder service, brake bleeding, and pad and disc inspection.

• Electrical systems: Alternator and regulator/rectifier tests, direct-ignition diagnosis, starter-motor overhaul, switch checks, and wiring diagrams.

Suited to mechanically qualified owners and technicians with the proper tools and service equipment; the maintenance schedule identifies work recommended only for an authorized Honda dealer.

Engine, Clutch and Transmission Repair

Engine coverage extends from compression testing and shim-under-bucket valve adjustment to valve-guide replacement, valve-seat refacing and crankcase separation. Crankshaft and piston inspection includes selective-fit main-journal and crankpin bearing tables, plus balancer timing and backlash adjustment.

Camshaft, clutch and transmission service can be performed with the engine in the frame; cylinder-head, crankshaft and piston work requires engine removal. The camshaft procedures warn that incorrect holder-bolt loading can break the holders.

Clutch instructions include master- and slave-cylinder inspection and clutch-outer needle-bearing selection. Gearbox views identify mainshaft/countershaft parts, shift forks and the shift drum. Tool references identify cam-chain tensioner holder 07ZMG-MCAA400.

PGM-FI, EGCV and Emissions Diagnosis

The PGM-FI system diagram and ECM terminal-layout views accompany sensor and primary/secondary injector circuit checks. The MIL code index links symptoms and fault causes to the relevant diagnostic charts.

The EGCV charts separate potentiometer faults from servomotor lock, cable binding and exhaust-valve problems, helping narrow the fault before parts are replaced. California-type EVAP purge-solenoid checks and PAIR control-valve tests are also covered.

Cooling and Oil-System Checks

An oil-circuit diagram traces the pump, strainer, pressure-relief valve and oil cooler. The cooling-system flow pattern is backed by radiator-cap pressure testing, thermostat inspection and water-pump leak diagnosis; a failed pump mechanical seal calls for pump-assembly replacement.

Fork, Steering and Brake Service

Fork procedures cover bushings, seals, damper removal and oil-level checks. Steering-stem bearing replacement, swingarm pivot setup and suspension-linkage bearing work are described separately.

The rear-wheel section specifies 64 N·m for the final driven sprocket nuts, identified as U-nuts.

The HESD damper oil-flow diagram explains the control system. Its Function Test compares damping without a road test when the MIL is not blinking. The sealed steering-damper unit is not serviceable.

Front and rear brake sections cover caliper pistons and seals, master-cylinder inspection and bleeding. Follow the manual's brake-system safety checks before returning the motorcycle to service.

Charging, Ignition and Starter Diagnosis

Charging diagnosis separates battery condition, current leakage, stator continuity and regulator/rectifier faults. Ignition coverage includes direct-coil and crankshaft-position-sensor peak-voltage tests; electric-starter coverage reaches brush inspection and armature checks.

Valve-Clearance and Battery-Leakage Preview

Cold valve-clearance specifications are 0.16 ± 0.03 mm intake and 0.30 ± 0.03 mm exhaust, measured below 35°C (95°F). The maintenance section relates these readings to shim selection.

The charging-system section specifies a maximum ignition-off battery current leakage of 2.0 mA. Its diagnostic chart distinguishes regulator/rectifier leakage from wiring and ignition-switch faults.

PDF Search, Wiring Detail and Page Count

Search, navigation and wiring detail: PDF text search and embedded bookmarks are unavailable. The ignition schematic is readable when enlarged; some ECM pin labels and wire-color codes on the large wiring diagram remain blurred at higher zoom.

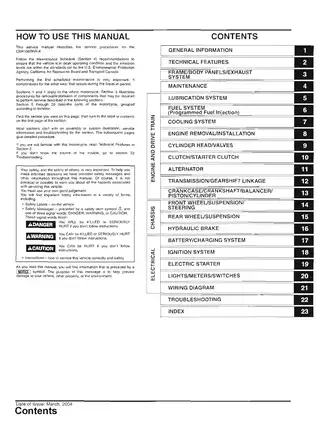

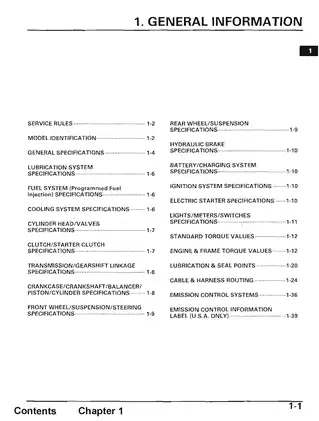

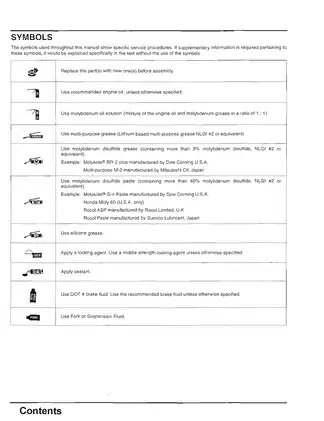

One printable, English-language, 586-page PDF, including the front cover, 12 memo pages and one blank chapter-end page. The contents and two-page index are also included.
