Honda VT700C & VT750C Shadow Shop Manual | 1983–1985
333 Pages • Printable PDF • 45.30 MB • Download
Honda Models Covered & Key Technical Specifications
Models: VT700C, VT750C
Sub-models / Variants: Shadow, California Model, '83 model, '84 model, '85 model
Model Years: 1983–1985 (1983, 1984, 1985)

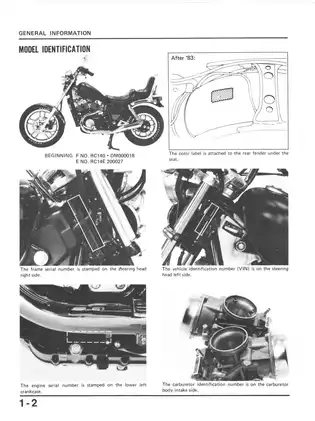

Serial Numbers: VT750C: Beginning F NO. RC140 * DM000018, E NO. RC14E 200027
-
Engine type: Water-cooled 4-stroke SOHC V-twin
-
Displacement: 694.5 cc (After '83), 749.5 cc ('83 model)
-
Transmission: 5-speed with overdrive
-
Compression ratio: 9.6:1 (After '83), 9.8:1 ('83 model)
-
Final drive: Shaft drive
-
Battery capacity: 12V-16Ah

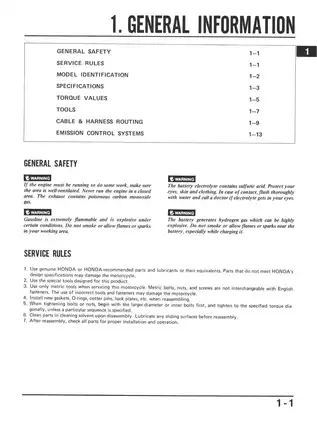

Honda Manual Features & Selected Content Preview
This Honda factory shop manual covers the 1983 VT750C Shadow and 1984–1985 VT700C Shadow. The September 1984 issue is based on the ’83 VT750C, with later-model differences identified throughout. This copy also includes revised service pages dated 1986 and 1987.
PDF Search, Navigation and Wiring Detail
Search and diagram detail: PDF text search and embedded bookmarks are not available. Small wire-color codes and connector labels in the three full wiring diagrams are readable when enlarged.

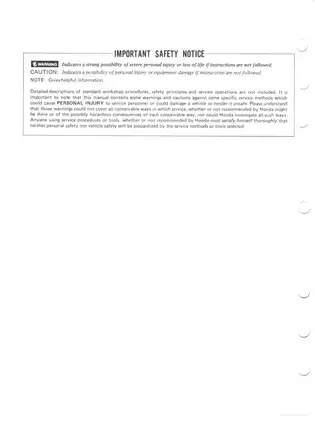

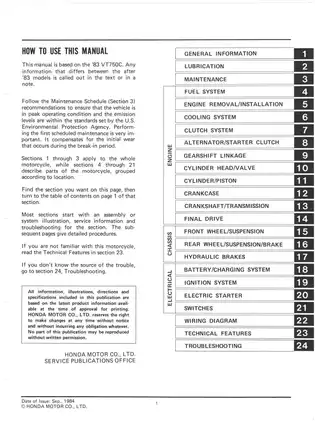

Supplied as one printable, English-language 333-page PDF, including three opening pages: the original cover, safety notice, and manual-use overview. Revised service pages are included in that total.
Engine Overhaul, Shaft Drive and Electrical Diagnosis
The following selected coverage highlights outline the main repair areas rather than reproduce the full contents. Additional topics include headlight and instrument removal, plus control-cable lubrication.
-
Engine repair: Engine removal and installation, cylinder-head and camshaft service, hydraulic-tappet work, cylinder and piston inspection, oil-pressure testing, and oil-pump repair.
-
Carburetors and emissions: Carburetor disassembly and assembly, synchronization, pilot-screw adjustment, and California evaporative-emission and purge-control-valve checks.
-
Cooling system: Cooling-system pressure testing, thermostat inspection, radiator and cooling-fan service, coolant replacement, and water-pump inspection and replacement.
-
Clutch and transmission: Hydraulic clutch bleeding, master/slave-cylinder overhaul, clutch inspection, gearshift-linkage service, crankcase separation, and internal transmission repair.
-
Shaft-drive service: Drive-shaft and universal-joint inspection, final-drive bearing and seal replacement, ring-and-pinion service, backlash measurement, and gear-tooth contact checks.
-
Suspension and brakes: Front-fork disassembly and seal replacement, steering-stem bearings, rear shocks and swingarm, wheel bearings, rear drum brakes, and front hydraulic-brake rebuilding.
-
Electrical troubleshooting: Charging-system, ignition, starter-motor, relay, diode, and switch tests, supported by year-specific wiring diagrams and symptom-based troubleshooting charts.
Suited to mechanically qualified owners and technicians with proper tools and service data, this manual assumes standard workshop knowledge; Honda recommends authorized-dealer service for wheels and steering-head bearings.
Engine Internals and Hydraulic Tappets
The cylinder specifications distinguish the ’83 VT750C’s 79.5 × 75.5 mm bore and stroke from the later VT700C’s 76.5 × 75.5 mm dimensions.
Step-by-step procedures extend to valve-guide replacement, valve-seat inspection and refacing, hydraulic-tappet bleeding, and shim adjustment after specified top-end components are replaced. Camshaft installation includes cylinder-specific timing references.
Bottom-end repair: Crankshaft and connecting-rod bearing selection uses identification codes and bearing tables. Transmission coverage includes gear and bushing inspection, shift forks and shift drum, output-drive-gear bearings, and adjustment shims.
The lubrication section pairs an engine oil-flow diagram with oil-pressure testing, strainer cleaning, relief-valve inspection, and oil-pump disassembly.
The flywheel’s left-hand retaining bolt requires particular care to avoid thread damage; the cylinder-head section warns that torch heating during valve-guide replacement can warp the head.
Carburetor Variants and Cooling-System Limits
Carburetor identification is separated by year: VD7AA for ’83; VD7CA, or California VD7BA, for ’84; and VD7CB, or California VD7BB, after ’84. These distinctions help match the relevant settings and procedures to the installed carburetors.
The fuel chapter also covers main and auxiliary fuel tanks, fuel-pump removal, and high-altitude adjustment. California purge-control-valve testing addresses difficult hot restarting. The later air-cut valve is covered for removal and installation, with an explicit instruction against disassembly.
Pilot-screw cautions identify seat damage caused by overtightening.
Water-pump scope: Mechanical-seal leakage and bearing condition are inspected, but a faulty pump is replaced as an assembly. Pump removal requires engine removal; radiator, cooling-fan, and thermostat service can be performed with the engine installed.
Clutch, Final Drive and Chassis Detail
Clutch coverage includes the wet multi-plate assembly and its one-way clutch, with hydraulic master/slave-cylinder inspection dimensions and exploded views.
Final-drive procedures distinguish backlash adjustment from gear-tooth contact correction. Contact-pattern illustrations show how spacer selection relates to ring-and-pinion engagement.
Rear shock procedures include spring removal and inspection using a compressor. Swingarm coverage extends to pivot-bearing replacement. Front brake chapters document master-cylinder and caliper rebuilding alongside pad and disc inspection; rear drum-brake work includes shoes, cam, and wear-indicator alignment.
Tubeless-tire repair is referred to a separate Honda manual, which is not included.
Support the motorcycle securely before engine, wheel, fork, swingarm, or brake work; the manual also warns against opening the cooling system while hot and against allowing DOT 3 brake/clutch fluid to contact painted surfaces.
Electrical Tests, Wiring and Workshop References
Charging chapters provide stator continuity, regulator/rectifier, and regulator-performance tests. Ignition diagnosis separates the two cylinder circuits and covers ignition coils, pulse generators, and spark units.
Starter coverage includes brush, commutator, and field-coil inspection, starter-relay testing, and clutch-diode checks. Switch chapters add fuel-pump delivery testing, cooling-fan switch checks, and temperature-sensor resistance data.
Stator-removal limitation: Printed page 8-2 is missing from this PDF, leaving the opening part of that procedure incomplete. The following page continues stator removal before the flywheel instructions.
Three full wiring diagrams distinguish ’83, ’84, and after ’84 configurations. Cable-and-harness routing views and the cooling-system layout supplement the repair chapters. Technical-feature cutaways explain the 45-degree V-twin’s offset dual-pin crankshaft, hydraulic valve-adjuster system, three-valve/two-spark-plug combustion chamber, and one-way clutch.
Symptom charts cover hard starting, loss of power, poor running at different speeds, handling problems, and noisy hydraulic tappets. The tappet chart connects lubrication checks with component inspection, helping distinguish an oil-supply problem from a faulty tappet.
Special-tool references: The tool index lists hydraulic tappet bleeder 07973-ME90000, vacuum gauge set 07404-0020000, and pinion joint holder 07926-ME90000.
It also identifies valve guide reamer 07984-6570100, steering stem socket 07916-3710100, and swingarm bearing remover 07936-4150000. Component-specific torque tables, service limits, and inspection dimensions accompany the repair sections.
A Preview of Fluid Capacities and Service Settings
Engine-oil specifications distinguish 3.0 liters after draining from 3.5 liters after disassembly. Total cooling-system capacity is 2.1 liters.
Carburetor float-level data specifies 7.5 mm, while spark-plug service data gives a 0.8–0.9 mm gap. The oil-pressure test lists 5.4 ± 0.7 kg/cm² at 6,000 rpm with oil at 80°C/176°F.
Final-drive oil capacity is 130 cc after draining. After disassembly, the specifications distinguish 170 cc for ’83 models from 150 cc for models after ’83.
