John Deere Tractor Shop Manual (1961–1972) — 3010, 3020, 4010, 4020, 5010 & 5020
88 Pages • Printable PDF • 92.92 MB • Download
John Deere Models Covered & Key Technical Specifications
Models: 3010, 3020, 4010, 4020, 5010, 5020
Sub-models / Variants: General Purpose, Hi-Crop, Standard, Syncro-Range, Power Shift (3020, 4020)
Model Years: 1961–1972 (1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972)
Serial Numbers: 3020 (Before # 123000), 4020 (Before # 201000); 3010 (Below Serial Number 1T28972: surge pressure relief valve configuration); 4010 (Below Serial Number 2T33359: surge pressure relief valve configuration; do not perform the surge pressure test above Serial Number 2T33350)
-
Engine Configuration: 4-cylinder (3010, 3020); 6-cylinder (4010, 4020, 5010, 5020)
-
Displacement: 201–531 cubic inches
-
Transmission Types: Syncro-Range (8 forward speeds), Power Shift (3020, 4020)
-
Fuel Systems: Diesel, Gasoline, LP-Gas (3010, 3020, 4010, 4020); Diesel (5010, 5020)
-
Hydraulic System Pressure: 2250 psi (standby)
John Deere Manual Features & Selected Content Preview

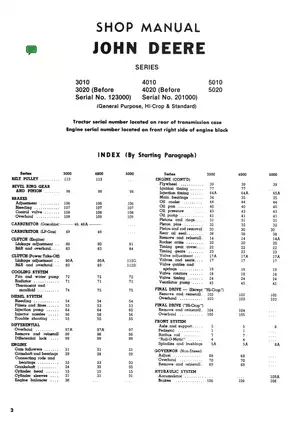

This shop manual covers 1961–1972 John Deere 3010, 3020, 4010, 4020, 5010, and 5020 tractors in General Purpose, Hi-Crop, and Standard configurations. Check the tractor serial number for the 3020 (before 123000) and 4020 (before 201000).
PDF Search, Bookmarks, and Page Count
Finding sections and reading diagrams — The manual pages have a searchable text layer and bookmarks for the main service sections. Check exact specifications against the scanned page images because the text layer contains recognition errors. Enlarge the wiring diagrams to read small terminal labels.
The download is one printable, English-language PDF with 88 pages, including one additional cover page and 87 pages of index, service data, and repair material.
Engine Overhaul, Transmission Repair, and Hydraulic Testing
This selection of shop procedures covers major repair areas. The manual also includes cooling-system service for the radiator, water pump, and thermostat.
- Engine repair — Engine removal, cylinder-head and valve service, camshaft timing, wet-sleeve inspection, crankshaft and bearing work, and Lanchester balancer overhaul.
- Fuel systems — Marvel-Schebler and Zenith carburetor service, LP-Gas troubleshooting, injector-nozzle testing and repair, and Roosa-Master injection-pump removal and timing.
- Transmissions and clutches — Syncro-Range shaft and synchronizer repair, plus Power Shift troubleshooting, clutch and planetary pack overhaul, and engagement-rate adjustment.
- Hydraulics and steering — Transmission-pump flow checks, system pressure and leakage tests, main-pump overhaul, steering control-unit service, and rockshaft adjustments.

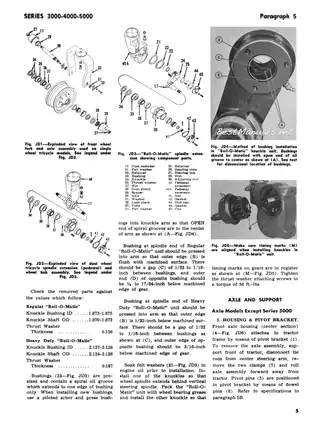

- Axles, brakes, and PTO — Roll-O-Matic front-end service, differential and differential-lock repair, Hi-Crop final-drive work, brake bleeding, and PTO clutch overhaul.
- Starting and charging — Wiring diagrams, starter test specifications, generator and alternator checks, regulator settings, and charging-circuit connections for different equipment configurations.
The procedures are suited to experienced tractor mechanics and owners who use hydraulic test gauges, dial indicators, and dedicated service tools for major repairs.
Engine Inspection and Lubrication
Cylinder-head tolerances, piston-to-sleeve clearances, and component-specific tightening torques support teardown and inspection. Comparing measured clearances with the specified limits helps determine whether parts can be reused or need replacement.
The Lanchester balancer section includes an exploded view and timing references. Diesel and non-diesel balancers in the 3000 series are not interchangeable. Lubrication service covers the oil pump, pressure regulator, diesel oil cooler, and crankcase ventilator pump.
Carburetors and Diesel Injection
Gasoline procedures distinguish the Marvel-Schebler USX carburetor from the Zenith Model 69. LP-Gas procedures cover the fuel strainer, automatic shutoff valve, and converter, with troubleshooting for hard starting, power loss, and converter freezing.
Diesel nozzle procedures for Bosch, Scintilla, and Roosa units include spray-pattern, leakage, and opening-pressure checks, with lapping where applicable. Roosa-Master injection-pump service is limited to removal, installation, timing, and external adjustments. Internal pump overhaul requires specialized service.
Syncro-Range and Power Shift Service
A Syncro-Range component schematic accompanies the shaft, shifter, and synchronizer procedures. Bevel-pinion views support cone-point positioning and bearing adjustments. The manual identifies the synchronizer installing cone and explains modifications to earlier service tools for the 3020 and 4020.
Power Shift coverage includes a transmission schematic, pressure-based troubleshooting, pedal and regulating valve service, accumulator work, and tow-disconnect service.
Hydraulic Fault Isolation and Valve Adjustment
The test sequence helps separate inadequate transmission-pump supply from main-system pressure faults and leakage at individual valves before components are dismantled. A cross-section shows the main pump’s stroke control valve. Steering service includes priority-valve testing and bleeding.
Rockshaft procedures cover housing repair and load-control linkage adjustment. The selective remote control valve section gives separate procedures for metering, detent adjustment, and valve synchronization.
Final Drives, Brakes, and Wiring
The chassis procedures distinguish conventional planetary final drives from Hi-Crop drop housings. Brake service includes control valves, discs, and the 5000-series nitrogen-charged accumulator. Accumulator overhaul requires suitable charging equipment.
The electrical section separates non-diesel wiring from the diesel split-load system and shows different connections for generator- and alternator-equipped tractors.

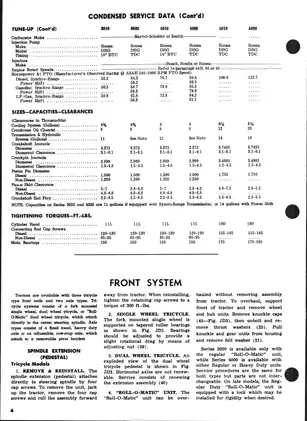

Engine Clearance Examples

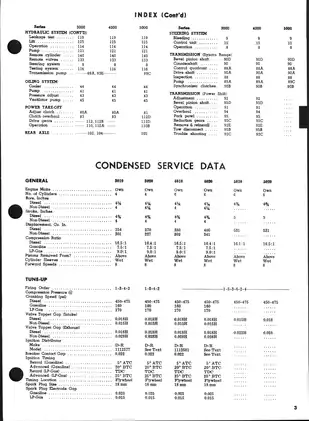

The condensed service data lists a main-bearing diametral clearance of 0.0031–0.0061 in. for all six models. Cylinder sleeves should protrude 0.001–0.004 in. above the block gasket surface, measured with the sealing rings removed.
The piston-ring inspection data gives a compression-ring side clearance of 0.0035–0.005 in. and a maximum wear limit of 0.008 in.
