Honda CT90/CT110 Shop Manual 1977–1982 (P/N 6110205)
199 Pages • Printable PDF • 38.53 MB • Download

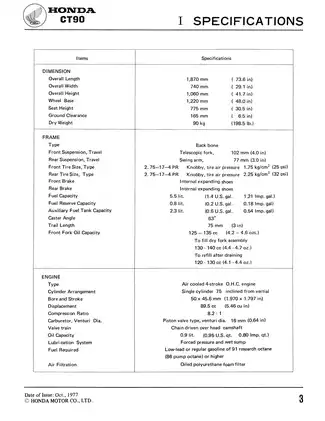

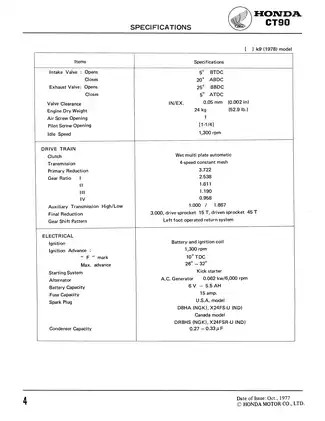

Honda Models Covered & Key Technical Specifications
Models & Model Codes: CT90 (K8, K9), CT110
Model Years: 1977–1982 (1977, 1978, 1979, 1980, 1981, 1982)
-
Engine displacement: CT90: 89.5 cc; CT110: 105.1 cc
-
Engine type: Air-cooled 4-stroke O.H.C. single cylinder
-
Compression ratio: CT90: 8.2:1; CT110: 8.5:1
-
Transmission: 4-speed constant mesh; auxiliary transmission on CT90 and 1981–1982 CT110
-
Fuel type: CT90: Low-lead or regular gasoline (86 pump octane or higher); CT110: Gasoline (91 RON minimum)
-
Dry weight: CT90: 90 kg; 1980 CT110: 89 kg; 1981–1982 CT110: 92.5 kg
Honda Manual Features & Selected Content Preview

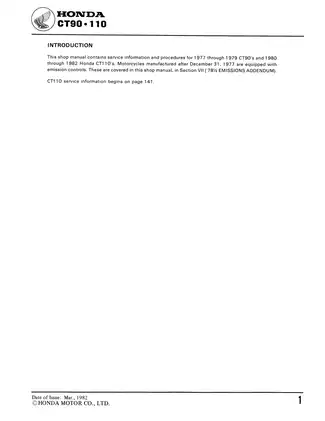

Honda’s March 1982 shop manual, P/N 6110205, covers the 1977–1979 CT90 and 1980–1982 CT110. It combines the base service and repair procedures with integrated emissions and model-year addenda.
PDF Bookmarks and Wiring Detail
Navigation and small print: Embedded bookmarks lead to the main chapters, selected subsections and all five addenda. PDF text search is not available. Small wire-color codes and connector labels in the wiring diagrams require zooming; several diagrams are oriented sideways.

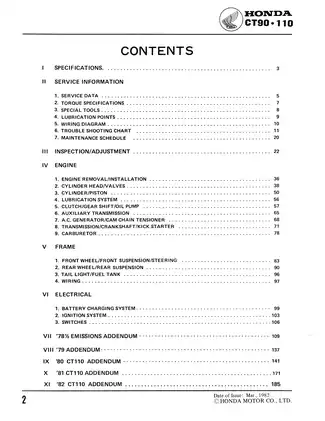

One printable PDF in English contains 199 pages, including the cover, introduction and contents page. The integrated addenda occupy 90 of those pages, including two memo pages.
Engine Overhauls, Chassis Service and Electrical Diagnosis
The following selected coverage highlights outline the main workshop topics. Other documented work includes fuel-tank removal and spark-arrester cleaning.
-
Engine repair: Step-by-step procedures cover engine removal, cylinder-head and valve disassembly, piston replacement, camshaft installation and valve-timing alignment.
-
Clutch and transmission: Clutch overhaul, gearshift mechanism service, crankshaft inspection and kick-starter assembly, plus auxiliary-transmission disassembly and inspection for applicable models.
-
Carburetor service: Throttle-valve, float and jet disassembly, float-height checks, idle adjustment and model-specific pilot-screw and high-altitude procedures.
-
Lubrication: Centrifugal oil-filter and screen cleaning, oil-pump disassembly and clearance checks, supported by lubrication circuit diagrams.
-
Chassis and brakes: Telescopic fork overhaul, steering-stem service, wheel-bearing replacement, drum-brake inspection, rear-shock disassembly and drive-chain adjustment.
-
Electrical diagnosis: Charging-system tests, rectifier and switch continuity checks, contact-breaker service and ignition timing, with separate CDI diagnosis for the later ignition system.
-
Maintenance references: Separate K8 and K9 schedules and subsequent addenda provide service intervals, fluid specifications, torque tables and component wear limits.
This manual suits mechanically qualified owners with appropriate tools and service data, as well as workshop technicians; Honda’s maintenance schedules reserve certain wheel and steering-bearing work for an authorized dealer.
How the Model-Year Addenda Apply
The addenda supplement the base procedures rather than repeat them. The 1978½ section addresses emissions-equipped CT90 models manufactured after December 31, 1977; the 1979 section updates maintenance information.
For the CT110, the 1980 section supplies revised engine, carburetor and electrical information. The 1981 section adds auxiliary-transmission service, while the 1982 section covers CDI ignition. These distinctions help match the test procedures and service data to the machine before disassembly.
Internal Engine and Drivetrain Work
Cylinder-head coverage extends to valve-guide replacement and reaming, valve-seat refacing, rocker-arm inspection and camshaft bearing measurements. Cylinder and piston inspection separates standard dimensions from service limits and addresses oversize replacement parts.
Exploded assembly views show clutch-plate arrangement, shift-fork positioning and kick-starter spring installation. Auxiliary-transmission inspection addresses the idler gear, shaft and shift fork. Honda specifically warns that hammering the clutch into or out of position can damage the assembly.
Special-tool references include the CT90 rotor puller 07933-2160000, with an illustration showing its application to A.C. generator removal.
Carburetor and Emissions Differences
The carburetor sections distinguish K8 and K9 settings from the later emissions-controlled configurations. The emissions material explains the U.S. crankcase breather system and its routing, alongside restrictions on routine pilot-screw adjustment.
CT110 coverage includes pilot-screw limiter-cap replacement and high-altitude jetting. The manual warns that forcing off the limiter cap can break the pilot screw; this is more specific than a general carburetor-cleaning guide.
Charging Tests and CDI Fault Tracing
Battery-charging and ignition circuit diagrams accompany the electrical tests. Cable-routing views and wire-harness routing drawings show how the electrical connections and control cables fit around the chassis.
Troubleshooting flowcharts distinguish fuel-delivery, compression and ignition causes of starting or running problems. For the 1982 CT110, the ignition section adds coil, stator and pulse-generator resistance checks, plus CDI terminal identification and a resistance matrix tied to specified SANWA or KOWA testers.
Fork, Wheel and Steering Inspection
Chassis inspection includes axle runout, wheel-bearing play, brake-drum diameter and lining thickness. Fork service distinguishes filling a dry assembly from refilling after draining; rear-suspension coverage includes spring inspection and damper checks.
Keep the motorcycle securely supported during engine, wheel and suspension work.
Sample Cylinder-Head Torque and Valve-Clearance Data
The CT90 torque table lists cylinder-head nuts at 2.0–2.5 kg-m (14.5–18.1 lb-ft). The 1980 CT110 addendum specifies 1.8–2.1 kg-m (13.0–15.2 lb-ft) for its cylinder-head nuts.
The base CT90 adjustment section gives intake and exhaust valve clearance as 0.05 ± 0.02 mm (0.002 ± 0.0008 in.) with the engine cold.
