2009–2012 Yanmar 3TNV82A–4TNV106T Industrial Engine OEM Service Manual

This Yanmar TNV DI Service Manual covers maintenance, diagnosis and repair of the listed 2009–2012 industrial diesel engines, from 3TNV82A through 4TNV106T. Coverage includes three- and four-cylinder direct-injection engines, CL/VM configurations, and Tier 2 and Interim Tier 4 variants.

The download contains one 378-page PDF in English.

• Engine repair: Cylinder-head and cylinder-block service covers valves, timing gears, rotating components, dimensional inspection and model-specific assembly requirements.

• Fuel injection: MP2 and MP4 pump coverage includes timing, removal and installation, alongside injector inspection, pressure testing and fuel-system priming.

• Cooling and lubrication: Cooling-system checks, coolant-pump replacement and trochoid oil-pump inspection are supported by component views and specifications.

• Turbocharging and emissions: Turbocharger assessment and EGR service address boost-related symptoms, carbon buildup, valve checks and cooled or uncooled arrangements.

• Starting and charging: Starter, alternator and dynamo sections cover component inspection, electrical testing, circuit diagrams and charging faults.

• Maintenance and diagnosis: Service schedules, lubricant references, tightening torques and compression-based troubleshooting connect routine maintenance with engine fault diagnosis.

The manual is intended exclusively for professional engine technicians, authorized dealers and repair shops, and assumes prior workshop experience.

Engine Repair and Dimensional Inspection

Separate cylinder-head procedures cover two- and four-valve designs, including rocker arms and shafts, valve guides, valve-seat lapping and intake/exhaust valve-clearance adjustment. Cylinder-block work includes crankshaft, camshaft, connecting rods, pistons, piston rings, timing gears and flywheel removal, inspection and reassembly.

Crankshaft end-play and bearing-clearance tables support wear assessment. Model-specific piston/connecting-rod orientation distinguishes the 4TNV106/4TNV106T arrangement from smaller engines, helping technicians avoid applying the wrong assembly layout.

Valve-bridge adjustment on four-valve heads includes a warning about bending valve stems if the bridge is not supported during locknut adjustment. Standard and special torque charts distinguish fastener conditions and reduced torque for aluminum components.

Fuel Injection and Electronic Controls

The MP2 pump serves the 3TNV82A–4TNV88 group, while the MP4 serves 4TNV94L–4TNV106T engines. The Fuel System Diagram, injector identification details and model-specific special-tool references help match testing and timing work to the correct system.

Coverage includes nozzle spray-pattern and opening-pressure checks, injector service, water-separator maintenance and bleeding. Pump-timing procedures reference engine-specific Fuel Injection Reference (FIR) data from Yanmar's distributor resources.

Internal injection-pump repair and calibration are assigned to an authorized Yanmar fuel-injection service facility.

E-ECU and Eco-governor coverage explains the rack actuator, sensors, cold-start device and harness connections. EGR coverage includes valve checks, uncooled layouts for 4TNV98-E/-Z engines, and cooler service for 4TNV84T-Z and 4TNV98T-Z engines.

Cooling, Lubrication and Turbocharger Service

The Cooling System Diagram accompanies coolant-leak checks and thermostat, radiator-cap and temperature-sensor testing. Lubrication coverage separates oil-pump designs by engine group and includes rotor-clearance and oil-pressure checks.

Model-by-model specifications list engine displacement and dimensions. The coolant-capacity table covers the engine without a radiator; machine documentation supplies the installed system's capacity.

SAE viscosity charts, filter-service guidance and V-belt deflection illustrations support scheduled maintenance.

Turbocharger coverage includes RHB31, RHB51, RHF4 and RHF5 units, rotor inspection, blower washing and wastegate checks. Internal turbocharger repairs are referred to a qualified repair facility.

Electrical Testing and Fault Diagnosis

Starter coverage includes armature, brush, pinion-clutch and magnetic-switch inspection. Alternator and Dynamo Wiring Diagrams support charging-system diagnosis, with stator and diode tests.

Electronic Control Harness Connections and the representative engine wiring diagram cover engine-side circuits; machine-specific installations require the equipment manufacturer's documentation. Disconnecting battery power during engine operation can damage charging components, a risk addressed in the alternator and dynamo sections.

Compression-test references and symptom/cause charts help distinguish sealing faults from fuel or starting-system problems before major disassembly. Electronic fault tables also cover sensors, actuators and control-system communication.

Follow the manual's factory safety requirements and specified tooling, particularly around high-pressure fuel systems and rotating components.

PDF Format, Navigation and Readability

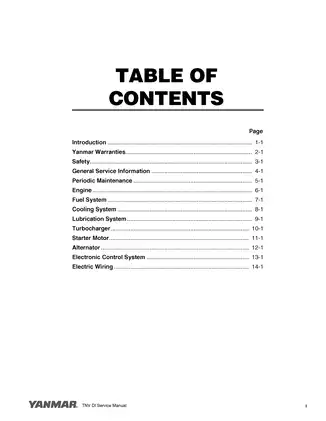

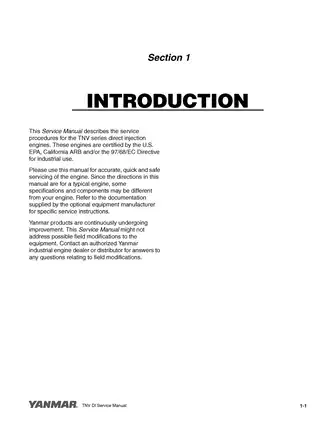

The image-based PDF is not text-searchable. Its bookmarks cover major chapters and numerous subsections, providing navigation to engine, fuel, electrical and diagnostic content.

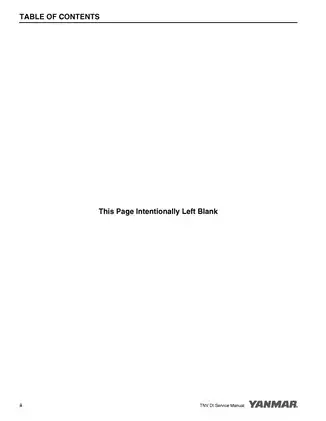

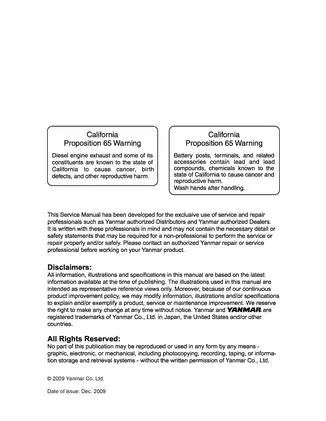

Most pages are readable when enlarged, but some small labels in the dense electronic-control harness diagrams are difficult to decipher, even at higher zoom. The 378-page total includes both covers, the notice/copyright page, table of contents, contact page and 21 intentionally blank pages.
