Honda VT1100C / VT1100T Shadow 1997–2003 Service Manual (P/N 61MAA05)
467 Pages • Printable PDF • 108.58 MB • Download
Honda Models Covered & Key Technical Specifications
Models: VT1100C, VT1100T
Sub-models / Variants: Shadow Spirit, Shadow 1100 A.C.E. Tourer
Model Years: 1997–2003 (VT1100C), 1998–2001 (VT1100T) (1997, 1998, 1999, 2000, 2001, 2002, 2003)
-
Engine: 1,099 cc, 45-degree V-twin, liquid-cooled, SOHC
-
Compression ratio: 8.0:1
-
Transmission: 5-speed
-
Clutch: Multi-plate, wet
-
Ignition: Full transistorized ignition
-
Coolant capacity (radiator and engine): 2.0 liters
-
Engine oil capacity (at draining): 2.9 liters
Honda Manual Features & Selected Content Preview
Honda’s factory service manual, P/N 61MAA05, covers the 1997–2003 VT1100C Shadow Spirit and 1998–2001 VT1100T Shadow 1100 A.C.E. Tourer, including 49-state/Canada and California configurations. The manual carries a March 1997 issue date; this printing has a 2002 copyright and IPC2000.2002.11 back-cover code.
PDF Text Search, Navigation and Diagram Detail

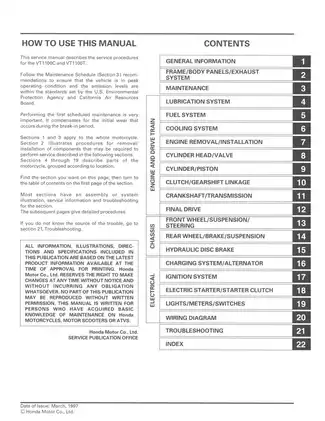

Navigation and wiring labels: PDF text search is not available, and there are no embedded PDF bookmarks. Printed contents pages and an index provide section references. The three full wiring diagrams are stored sideways; their small wire-color codes and connector labels require rotation and zooming.
One printable English PDF contains 467 pages, including the front and back covers and two duplicated service pages.
Engine, Shaft-Drive and Electrical Service
The following selected service topics show the manual’s repair and diagnostic scope rather than reproduce its full contents. Additional subjects include starting-enrichment valve checks and side-stand ignition cut-off testing.
-
Engine repair: Subframe and engine removal/installation, cylinder-head and camshaft service, hydraulic-tappet inspection, valve-guide replacement, seat refacing, and cylinder, piston and ring work.
-
Fuel and emissions: Dual-carburetor removal, separation, cleaning, reassembly and synchronization; pilot-screw idle-drop and high-altitude adjustments; fuel-pump checks and California EVAP diagnosis.
-
Clutch and drivetrain: Clutch and gearshift-linkage service, crankcase separation, crankshaft and connecting-rod work, transmission inspection, bearing selection, and output-gear and final-drive repair.
-
Suspension and brakes: Fork overhaul, wheel-bearing replacement and balancing, steering-stem bearings, shock absorbers, swingarm service, and model-specific drum- and disc-brake repair.
-
Lubrication and cooling: Oil-pressure testing, oil-pump and strainer service, radiator pressure tests, thermostat inspection, coolant replacement and air bleeding, and water-pump replacement.
-
Electrical diagnosis: Charging-system, alternator, regulator/rectifier, ICM ignition, pulse-generator, starter-motor and starter-clutch testing, plus lighting, meter, switch, indicator and fuel-pump checks.
-
Diagrams and service data: Configuration-specific wiring diagrams, cable and harness routing, exploded assembly views, torque tables, fluid data, clearances, wear limits and electrical test specifications.
Honda wrote this manual for people who already have basic maintenance knowledge of Honda motorcycles, motor scooters or ATVs.
Model Differences and Service Access
Within VT1100C coverage, Honda distinguishes ’97–’00 machines from after ’00 models. Changes affect battery and charging tests, cable and harness routing, clutch-center hardware, shift-fork data, switch access and the full wiring diagram. These distinctions help match inspection data and service procedures to the actual configuration.
The Tourer has its own seat, exhaust, windshield, saddlebag and rear-wheel procedures, along with model-specific cable routing.
Engine removal requirements: Water-pump, camshaft, cylinder-head, cylinder/piston, crankshaft, internal transmission and output-gear-case service require engine removal. Oil-pump, clutch-outer and gearshift-linkage work can be performed with the engine installed, but requires subframe removal.
Carburetor and California EVAP Diagnosis
Carburetor identification and hose routing differ between 49-state/Canada and California versions. The California section includes canister removal and vacuum/pressure testing of the EVAP purge and CAV control valves.
The carburetor section warns that compressed-air cleaning can damage the diaphragms if they remain installed.
Internal Engine and Shaft-Drive Repair
Step-by-step procedures cover cylinder compression testing, camshaft oil-clearance inspection and hydraulic-tappet shim selection after specified valvetrain parts are replaced. Lower-end coverage adds color-coded bearing selection, oil-clearance checks, shift-drum and fork inspection, and transmission reassembly.
Output-gear and final-drive service includes bearing replacement and seal work, with gear contact-pattern checks, backlash measurement and shim selection.
Incorrectly positioned connecting-rod bearing inserts can block oil passages and lead to engine seizure.
Chassis and Brake Configurations
The VT1100C rear drum brake has separate shoe, drum and pedal-linkage procedures. Hydraulic front-brake service applies to both models; the VT1100T also has a rear hydraulic disc brake. The hydraulic sections cover bleeding, pad and disc inspection, and master-cylinder and caliper overhaul.
Electrical Fault Isolation and Wiring References
Charging-voltage and current-leakage tests accompany regulator/rectifier checks. Ignition diagnosis uses peak-voltage measurements, while starter troubleshooting separates relay, motor, cable and interlock faults. Switch-continuity charts support the lighting, meter and indicator checks.
Full wiring diagrams are provided for ’97–’00 VT1100C, after ’00 VT1100C and VT1100T. Other references include the model-specific Cable & Harness Routing views, the Ignition System diagram and the Electric Starter system schematic.
Service Layouts and Special Tools

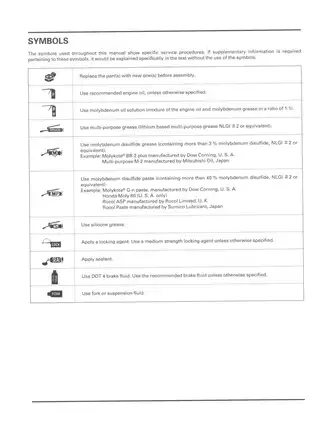

Most sections open with an exploded assembly or system layout, followed by service information, troubleshooting and detailed procedures.
Engine and clutch tool references include oil-pressure gauge 07506-3000000, hydraulic tappet bleeder 07973-MJ00000 and clutch center holder 07JMB-MN50301.
Final-drive and ignition sections identify pinion joint holder 07926-ME90000 and peak-voltage adapter 07HGJ-0020100. The tool tables also list U.S. alternatives where applicable.
Workshop Cautions and Maintenance Scope

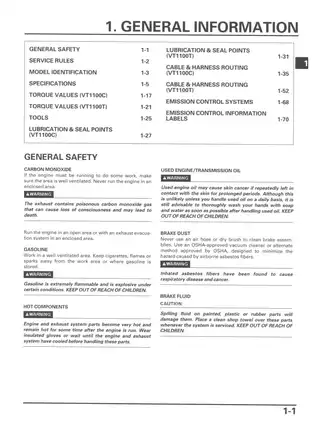

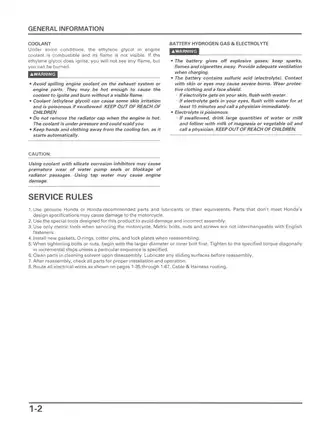

Brake, cooling-system, battery and lifting warnings address contamination control, hot pressurized coolant, live electrical connections and secure frame support.
The maintenance schedule refers pre-ride inspections to the separate owner’s manual.
Fork-Level and Final-Drive Specification Samples
Fork setup: The specified fork-fluid level is 173 mm for VT1100C and 140 mm for VT1100T, measured from the top of the fork tube with the leg fully compressed and the spring removed. These model-specific values accompany the fork overhaul and refilling instructions.
Final-drive inspection: Standard gear backlash is 0.05–0.15 mm, with a service limit of 0.30 mm. The final-drive chapter relates these specifications to backlash measurement, contact-pattern inspection and shim selection.
