Yamaha YF60S / 4-Zinger 60 (1986) ATV Service Manual (P/N LIT-11616-04-87)

151 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$17.45 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model & Model Codes: YF60S (1HN; also known as 4-Zinger 60)

Model Year: 1986

Serial Numbers: JY41HN00*GC000101 (Vehicle, starting number), 1HN-000101 (Engine, starting number)


  • Engine type: 2-stroke, air-cooled

  • Transmission: Single-speed automatic, wet centrifugal automatic clutch, shaft drive

  • Transmission oil capacity: 0.30 L (periodic change), 0.35 L (total amount)

  • Spark plug: BP6HS (NGK) or W20FP-U (N.D.)

  • Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)

  • Ignition timing: 16° ± 1.5° BTDC at 5,000 r/min

  • Piston clearance: 0.040–0.048 mm (0.0015–0.0019 in)

  • Cylinder bore: 44.0 mm standard

  • Tire pressure: 19.6 kPa (2.8 psi) standard front and rear (cold)

Yamaha Manual Features & Selected Content Preview

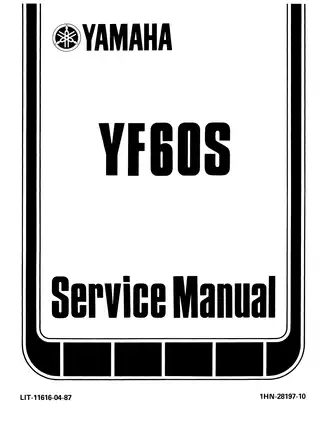

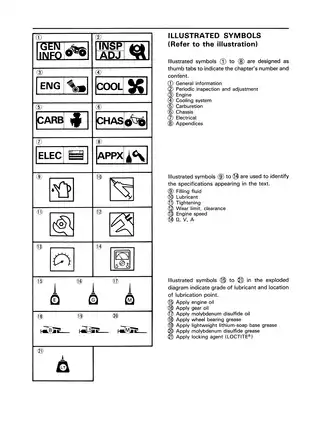

Yamaha’s service manual covers the 1986 YF60S / 4-Zinger 60, model code 1HN, beginning with vehicle number *JY41HN00GC000101 and engine number 1HN-000101. The original cover carries P/N LIT-11616-04-87 and 1HN-28197-10**.

PDF Bookmarks, Diagram Detail, and Page Count

Navigation and wiring detail: PDF text search is not available. Embedded bookmarks provide access to chapters and individual service sections. Small wiring color codes and connector labels are clearly readable when enlarged.

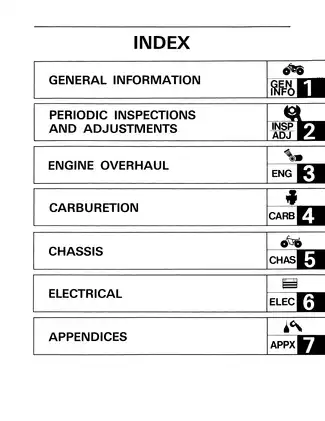

One printable English PDF with 151 pages total, including 1 cover page, 2 introductory pages, 1 index page, 3 blank divider pages, and 2 memo pages.


Engine Overhaul, Chassis Repair, and CDI Diagnosis

The following selected contents highlight the repair and diagnostic coverage rather than reproduce the complete table of contents. Other topics include fuel-cock filter cleaning and crankcase ventilation-pipe inspection.

  • Engine overhaul: Step-by-step procedures for engine removal and remounting, crankcase separation, crankshaft installation, clutch and drive-gear service, recoil-starter repair, and top-end work.

  • Fuel and Autolube service: VM12SC Mikuni carburetor disassembly and inspection, fuel-level and float checks, jet-needle adjustment, reed-valve service, pump adjustment, bleeding, and output checks.

  • Chassis repair: Wheel and bearing service, rear drum-brake inspection, steering-column and knuckle repair, tie-rod and toe-in adjustment, shaft-drive service, and rear-axle removal and installation.

  • Electrical fault tracing: YF60S wiring diagrams, component locations, CDI operating schematic, no-spark and intermittent-spark troubleshooting, plus rectifier, coil, and switch tests.

  • Factory reference material: Assembly drawings, sectional views, cable-routing illustrations, maintenance schedules, component-specific torque tables, lubricant and capacity data, inspection limits, and electrical test specifications.

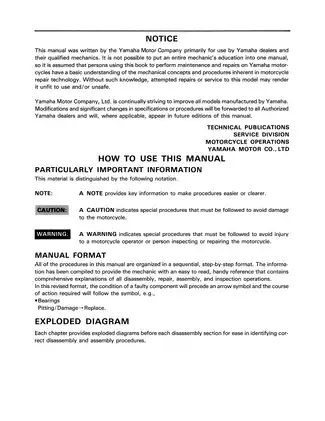

Yamaha wrote this manual primarily for its dealers and qualified mechanics, assuming an understanding of mechanical repair concepts and shop procedures.

Engine Inspection and Reassembly

The covered powertrain uses a 59 cc single-cylinder engine with recoil starting and separate Yamaha Autolube. Fuel metering is handled by a VM12SC Mikuni carburetor, with a 6-volt CDI ignition system.

The cylinder head, cylinder, piston, and CDI magneto can be serviced without removing the engine. Full engine removal also addresses access through the fenders, exhaust, air cleaner, wiring, cables, carburetor, rear hub, shaft drive, and recoil starter.

Internal inspection covers head warpage, cylinder wear, piston and ring fit, crankshaft condition, clutch wear, gear teeth, bearings, oil seals, crankcase condition, and recoil-starter operation.

Reassembly instructions address middle-drive shim placement, crankcase sealing, magneto key seating, clutch-damper orientation, and piston and ring positioning. Remounting coverage includes Autolube bleeding, pump-output verification, and final cable adjustments.

The middle-drive bearing retainer has left-hand threads; treating it as a conventional fastener can damage the retainer or crankcase.

Carburetor, Reed Valve, and Autolube Checks

Carburetor coverage explains fuel-level measurement with the factory gauge, float-height inspection, throttle-valve alignment, and jet-needle clip changes. The fuel-level and float-height sections direct attention to needle-valve and float condition and caution against altering the factory settings.

Reed-valve inspection includes sealing, bending, clearance, and stopper-height checks. Autolube procedures explain pump-cable alignment, minimum-stroke measurement, and when bleeding is required, including after the oil tank runs dry or the system is disconnected.

Chassis Service and Ignition Troubleshooting

Chassis instructions include wheel runout and bearing checks, brake-shoe and drum inspection, the rear-axle ring-nut tightening sequence, steering-column bushing service, and tie-rod identification. Final-drive inspection addresses gears, bearings, seals, ring-gear deflection, and rear-axle runout.

The wheel-bearing section specifies outer-race contact during installation and warns that striking the inner race or balls can damage the bearing.

The electrical chapter explains the START/RUN ignition-control circuit and engine-speed control unit. This explanation helps distinguish the intended starting restrictions from an ignition fault before replacement parts are selected.

System-specific troubleshooting charts support fault isolation, followed by spark-gap, resistance, and continuity tests for the relevant components.

For work involving fuel, raised wheels, the rear brake, steering, or low-pressure tires, follow the manual’s machine-specific warnings and standard shop safety practices. The procedures assume a properly equipped work area and sound mechanical judgment.

Assembly Drawings and Factory Tools

Illustrations include the carburetor sectional view, piston/cylinder/head assembly view, rear-brake exploded view, and shaft-drive/rear-axle exploded view. The YF60S wiring diagram and ignition troubleshooting charts support electrical diagnosis.

Factory tool callouts include the YU-33270 Universal Puller, YU-90050/YU-90063 crankshaft installation set, and YM-01189 Flywheel Puller. Chassis and electrical work references the YU-33975 Ring Nut Wrench, YU-33261 Coil Tester, and YU-03112 Pocket Tester.

The appendices consolidate assembly-specific specifications, general fastener torque guidance, and cable-routing drawings, keeping inspection and reassembly data tied to the covered components.

Selected Autolube and Ignition Test Specifications

For Autolube pump adjustment, the manual specifies a minimum pump stroke of 0.25–0.30 mm, checked with the engine idling and a dial gauge.

Ignition-coil testing includes a primary winding resistance of 1.6 Ω ± 10% and a secondary winding resistance of 6.6 kΩ ± 20%, both specified at 20°C (68°F). These values accompany the component test connections and replacement criteria.
