Honda ATC70 ATV Shop Manual Set – 1973–1985 (P/N 6195700)

260 Pages • Printable PDF • 56.21 MB • Download

$16.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: ATC70

Sub-models / Variants: K1 (ATC70K1), 1978 (engine code ATC70E), 1982, 1983–1984, 1985 (engine code TB03E)

Model Years: 1973–1985 (1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985)

Serial Numbers: 1978 addendum — engine ATC70E-2000004 and subsequent; frame ATC70-2000004 and subsequent.

Spark arrester serial breaks: Pre-K1 — frame numbers before 1100001; K1 — frame number 1100001 and subsequent. The modification bulletin distinguishes mufflers with a drain hole through frame number 1004074 from those without a drain hole at frame number 1004075 and subsequent.

Difficult-shifting bulletin: 1985 ATC70 — engine numbers 3000001 to 3047951.


  • Engine displacement: 72 cc

  • Engine configuration: 4-stroke O.H.C., single cylinder; inclined 80° from vertical in the base and 1985 shop manuals, 75° in the 1982 addendum.

  • Horsepower: 3.6 hp @ 6,500 rpm (pre-1982 models); for 1982+ models, the 1982 addendum lists 3.4 hp @ 9,000 rpm, while the 1985 shop manual lists 3.6 hp @ 6,500 rpm.

  • Transmission: 3-speed constant mesh (base manual and 1978 addendum) or 4-speed constant mesh (1982 addendum and 1985 shop manual), automatic centrifugal clutch.

  • Drive system: Chain drive

  • Fuel capacity: 2.5 liters (0.66 U.S. gallons) in the base manual; 4.0 liters (1.1 U.S. gallons) in the 1978 addendum; 4.3 liters (1.1 U.S. gallons) in the 1982 addendum and 1985 shop manual.

  • Engine oil capacity: 0.8 liters in the base manual and 1982 addendum; 1985 shop manual: 0.7 liters at oil change, 0.8 liters at engine assembly.

  • Tire size: 16 x 8-7

Honda Manual Features & Selected Content Preview

Publication Pages

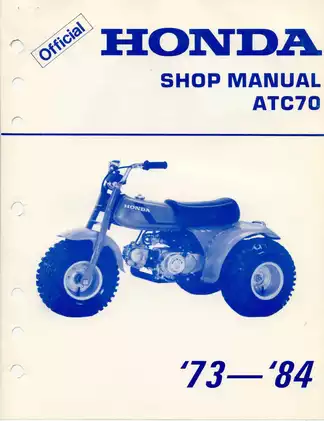

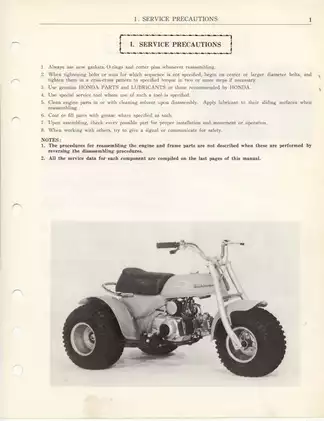

Honda ATC70 Shop Manual — base sections and K1 changes 36
1978 ATC70 Addendum — P/N 6193702Z 14
1982 ATC70 Addendum 13
1983–1984 ATC70 Addendum 6
1985 Honda ATC70 Shop Manual — P/N 6195700 163
Service Tool News ATC70 #1 — August 1983 revision 2
Service Tool News ATC70 #1 — July 1984 revision, three copies 6
Service Bulletin ATC70 #1 — Owner’s Manual and Choke Label 1
Service Bulletin ATC70 #2 — Spark Arrestor 1
Service Bulletin ATC70 #3 — Spark Arrester Modification 2
Service Bulletin ATC70 #4 — 1985 Difficult Shifting 1
Service Letter #100 — Equipment Modifications 1
1985 ATC70 Set-up Instructions 14

The addenda update the earlier shop manual, while the service bulletins address specific production changes and service issues.

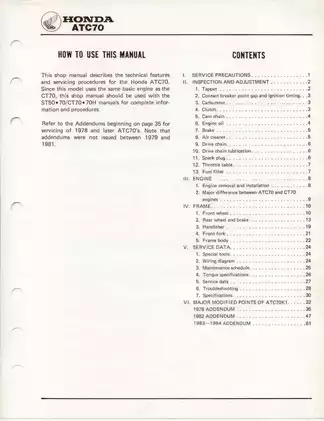

Earlier engine coverage: The earlier manual and addenda call for companion ST50·70/CT70·H or CT70 shop manuals for complete servicing information. Those companion manuals are not included. The separate 1985 publication contains its own internal engine repair procedures.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Text search is partial, with an embedded OCR layer, recognition gaps and unsearchable cover and safety pages. PDF bookmarks provide access to chapters, addenda and the 1985 wiring diagram. Small labels in the early wiring diagram require zooming.

Supplied as one printable, English-language 260-page PDF, including covers, safety notices, memo pages and all supplementary publications listed above.


Engine Rebuilding, Ignition Tests and Chassis Service

This content preview highlights selected sections; additional topics include exhaust spark-arrester maintenance and the throttle speed limiter.

  • Engine repair: Step-by-step 1985 procedures for cylinder-head and piston removal, valve-guide replacement, valve-seat refacing, camshaft inspection and crankshaft service.

  • Clutch and transmission: Centrifugal clutch disassembly and inspection, gearshift linkage service, Transmission Assembly views and the difficult-shifting bulletin.

  • Fuel and lubrication: Carburetor disassembly, float-level and pilot-screw adjustment, oil-pump inspection, centrifugal oil-filter cleaning and the Engine Lubrication System diagram.

  • Ignition and starting: Recoil starter repair, magneto flywheel and AC-generator stator service, contact-point adjustment, ignition timing, coil tests and wiring diagrams.

  • Chassis and brakes: Wheel-bearing replacement, rear axle and brake service, steering-stem bearings, front fork, handlebar, tire repair and frame inspection.

  • Fault tracing: Symptom-based charts for hard starting, power loss, smoking exhaust, shifting problems, engine noise, poor handling and ineffective brakes.

The repair sections suit mechanics and mechanically proficient owners with the specified tools and measuring equipment; the set-up instructions require an authorized Honda ATV dealer.

Engine Access and Wear Assessment

For the 1985 O.H.C. engine, cylinder-head, piston and clutch work is described with the engine installed; transmission and crankshaft service requires engine removal. Piston-to-cylinder clearances, crankshaft runout limits and component torque tables support assessing wear and planning the work.

Valve Seat Grinding illustrations show seat width and contact position. The tool lists identify valve-guide reamer 07984-0980000 and flywheel puller 07733-0010000, with applicable alternatives.

Cam-chain tensioner inspections cover the push rod, spring and sprocket. Gear-ratio tables and gearbox assembly drawings distinguish the transmission versions.

Electrical Diagnosis and Service Updates

The Engine Will Not Start or Is Hard to Start chart connects fuel-delivery, spark and compression checks with likely causes. This gives the workshop a reference for considering electrical, fuel and mechanical faults together.

The electrical section includes condenser-capacitance and alternator-resistance tests. Cable & Harness Routing drawings show wire and hose paths for checking reassembly; the 1983–1984 addendum also details the 1984 rear brake-lever lock mechanism.

Shifting update: The 1985 bulletin specifies a matched shift-drum stopper arm and stopper plate replacement, identified as kit 24410-957-305. Its affected engine range is listed in the model specifications above.

Brake and Tire Service Details

The 1978 addendum warns that an overlong brake-cam-holder bolt can interfere with the brake shoe. The early tire instructions identify bead-seal damage and air leaks as risks of forcing the beads away from the rim with tire irons.

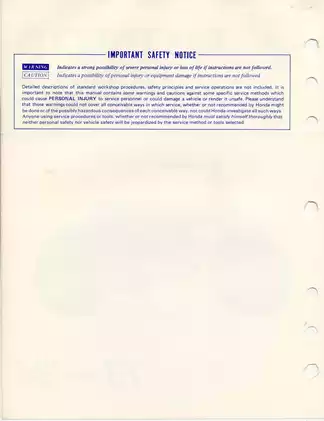

Follow the manual’s brake-dust and recoil-spring precautions, and consult a qualified technician for work beyond your experience.

Valve, Ignition and Brake Specification Examples

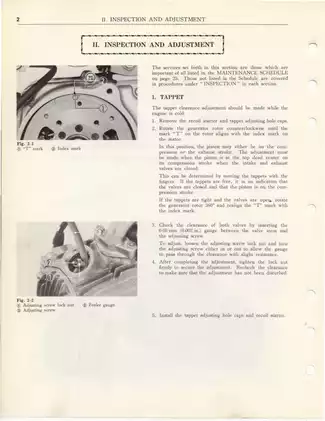

The 1985 valve-clearance section specifies 0.05 mm for both intake and exhaust with the engine cold, below 35°C (95°F). Its spark-plug specification gives a 0.6–0.7 mm gap.

Rear brake-drum limits differ by publication: the base manual gives a 111.0 mm inside-diameter service limit, while the 1978 addendum and 1985 manual give 131 mm. These are wear limits, not standard drum dimensions.
