Rincon 650, TRX650FA / Honda Motor Corporation, Ltd
Engine details:
-
649cc, liquid-cooled
-
OHV, demi-dry-sump longitudinally mounted
-
Single-cylinder four-stroke
-
100.0 mm x 82.6 mm
-
37 mm CV
-
Production year(s): 2003, 2004, 2005
2003-2005 Honda Rincon 650, TRX650 ATV service manual
Includes the following models
File specifications
File type: PDF
Language: English (some of our manuals are multilanguage)
Number of pages: 529
Printable: Yes
Estimated download time: 1.24 Minutes
Product Information

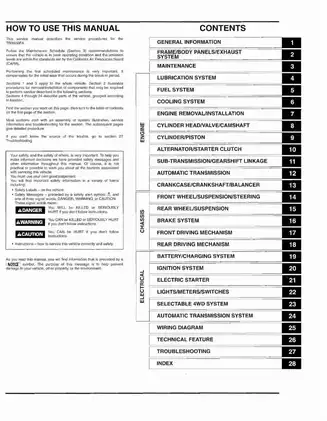

Table of Contents

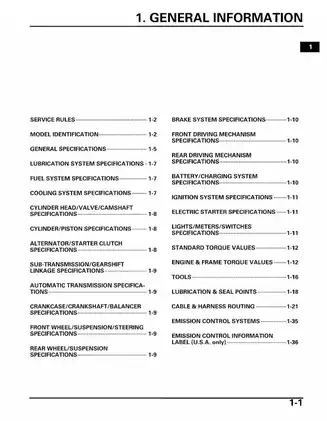

- General Information
- Frame/Body Panels/Exhaust System
- Maintenance
- Lubrication System
- Fuel System
- Engine Removal/Installation
- Cylinder Head/Valve
- Cylinder/Piston
- Clutch System
- Gearshift Linkage
- Subtransmission
- Crankcase/Crankshaft
- Transmission
- Front Wheel/Suspension/Steering
- Rear Wheel/Suspension
- Hydraulic Brake
- Battery/Charging System
- Ignition System
- Electric Starter
- Lights/Meters/Switches
- Wiring Diagram
The 2003-2005 Honda Rincon 650, TRX650 repair and service manual is an essential tool for mechanics, technicians, and owners alike. It provides detailed and comprehensive information on repair procedures, maintenance, troubleshooting, and service for the Honda Rincon 650 ATV, enabling users to effectively maintain and repair their vehicles.
- The pricing for this manual, handbooks, and repair guides is determined by the seller and may vary across different platforms. Compare prices before making a purchase.
- User comments and ratings are available for many of our manuals, aiding in your decision-making process. Share your own review after purchasing to assist others.
- Download the repair manual now with a lifetime guarantee for the download, as outlined in our FAQs.
- Contact the seller using our contact form, and we will handle your request promptly.
How to Download Your Manual - Delivery Policy
Within a minute after completing the payment process, you will receive two emails from us. One for the completed payment and another with the download link. The download link is valid for 3 days.
Lifetime Guarantee
Manuals frequently bought together
2003 Honda Rincon 650, TRX 650 repair manual
1. Introduction to the 2003 Honda Rincon 650, TRX 650 2. General Information 3. Maintenance 4. Fuel System 5. Engine 6. Transmission 7. Electrical
2003-2005 Honda TRX650FA Rincon ATV service manual
1. Introduction 2. General Information 3. Frame / Body Panels / Exhaust System 4. Maintenance 5. Lubrication System 6. Fuel System 7. Engine Removal /
2006-2012 Honda Rincon 680, TRX680FA/TRX680FGA ATV service manual
- General Information - Technical Features - Routine Maintenance - Engine Removal and Installation - Fuel System - Electrical System - Troubleshooting - And More
