1984–1985 Honda ATC125M ATV Service Manual & Bulletins Collection

The shop manual provides the repair procedures referenced by both bulletins. The bulletins add component updates and identification details for the affected ATC125M three-wheelers.

The CDI bulletin applies to all 1984 models and 1985 models with Frame # 100001 to 138210. The difficult-shifting bulletin applies to all 1984–1985 models.

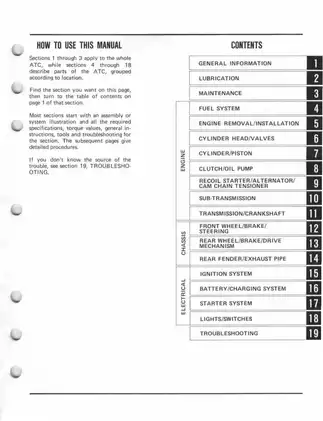

Engine, Drivetrain and Electrical Service Coverage

• Engine repair: Engine removal and installation, cylinder-head and valve service, cylinder and piston inspection, crankcase separation, and crankshaft checks.

• Clutch and transmission: Automatic clutch overhaul, oil-pump inspection, gearshift-linkage service, main transmission disassembly, and high/low sub-transmission repair.

• Fuel and maintenance: Carburetor teardown, float-level measurement, pilot-screw and high-altitude adjustments, maintenance schedules, and oil-filter rotor and screen cleaning.

• Starting and charging: Recoil-starter overhaul, starter-gear inspection, electric starter repair, alternator testing, battery checks, and voltage-regulator diagnosis.

• Brakes and chassis: Drum-brake service, steering-head bearing and race replacement, tire bead-breaking procedures, rear-axle repair, and final-drive servicing.

• Diagnostic references: Wiring diagrams, troubleshooting flowcharts, cable-routing drawings, component assembly illustrations, torque tables, and wear-limit specifications.

This manual suits mechanically proficient owners and technicians equipped for measurement and internal repair; detailed explanations of standard workshop practices are outside its scope.

Engine Repair and Maintenance

The engine sections cover the cylinder head, valve train, clutch and crankshaft, with inspection limits for wear-critical components such as the camshaft and rocker arms. Factory tolerances and maintenance intervals support planning for routine repair or a major overhaul.

Step-by-step procedures cover crankcase separation and transmission reassembly. The manual distinguishes these engine-out jobs from clutch, oil-pump and gearshift-linkage service that can be performed with the engine installed.

Valve-guide replacement and seat-refacing coverage extends beyond routine valve adjustment. The assembly instructions also address cam-sprocket alignment, pulse-rotor positioning and cylinder-head oil passages.

Carburetor and Cam-Chain Details

The fuel section follows carburetor disassembly through jet inspection, reassembly and float-level measurement. It identifies the float as nonadjustable and explains when pilot-screw adjustment is required.

High-altitude jetting is covered separately, including the risk of engine damage when that setting is used at lower elevations. The pilot-screw section warns that excessive tightening can damage its seat.

The cam-chain sections distinguish the adjustable tensioner from the later nonadjustable design, with separate removal, inspection and installation details.

Steering, Brakes and Final Drive

Chassis coverage includes steering-stem race installation, wheel-bearing replacement and front and rear brake inspection. Tire service describes bead-breaking equipment and tire repair, while the rear-drive chapter covers axle removal, sprocket dampers and the bearing holder.

Rear-fender and exhaust-pipe removal are included, along with spark-arrester maintenance and checks for exhaust leakage.

Electrical Testing and Fault Tracing

Electrical coverage spans CDI ignition timing, ignition-coil and pulse-generator tests, charging-output checks and switch continuity. Starter-motor inspection includes brushes, the commutator and field-coil circuits.

The 1984 and later wiring diagrams show different switch and regulator arrangements. Cable & Harness Routing drawings and the Starter System circuit support component identification; the Engine Does Not Start or Is Hard to Start flowchart connects fuel, spark and compression checks to likely causes.

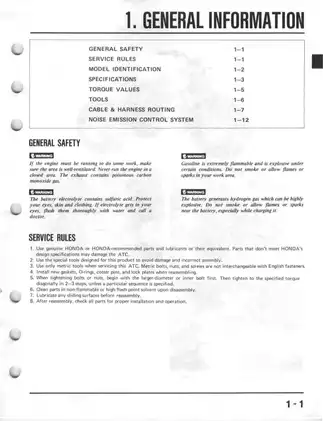

Follow the manual’s fuel-fire and battery-isolation precautions, with proper ventilation for running-engine tests.

CDI and Difficult-Shifting Bulletins

The CDI bulletin addresses overrevving that can damage valves and cylinder heads. It identifies the replacement ignitor assembly by Honda Code 1986611 and explains the modification marking.

The shifting bulletin specifies stopper arm P/N 24430-943-000 and stopper plate P/N 24425-943-000 as a matched replacement set. This distinguishes the documented component update from the clutch-adjustment checks in the main manual.

A Preview of Valve Timing and Assembly Torques

The engine specification table lists intake opening at 5° BTDC and exhaust closing at 5° ATDC, both at 1 mm valve lift.

The cylinder-head installation section specifies 18–21 N·m for the head nuts. The clutch chapter lists 40–50 N·m for the clutch lock nut, alongside assembly illustrations and the required holding tools.

Searchable Text, Diagram Detail and PDF Contents

Text search and wiring detail: OCR text supports searches through the repair chapters, though recognition errors occur and wiring-diagram labels are not reliably searchable. Embedded bookmarks cover the chapters, wiring diagrams and service bulletins. Small wire-color codes and terminal labels require zooming.

The collection is supplied as one printable English-language PDF with 231 pages total, including the cover, one blank page, ten memo pages and both service bulletins.
