2002–2008 JCB 3CX, 4CX, 214e, 214, 215 & 217 Backhoe Loader Service Manual (P/N 9803/3280)

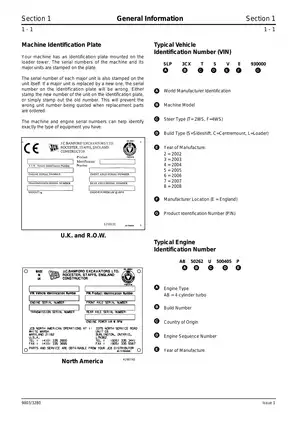

JCB service publication 9803/3280, Issue 4 covers the 2002–2008 3CX, 4CX, 214e, 214, 215, and 217 series backhoe loaders and their documented variants. Coverage starts at machine number 930000, or 903000 for USA machines, with separate information for two-wheel-steer and four-wheel-steer configurations.

Searchable Text, Bookmarks and Diagram Detail

Search and drawing detail: Text search is available throughout the manual. Embedded bookmarks organize the sections and many individual procedures, although some grouping entries have no direct destination. Small wire identifiers, connector numbers, and hydraulic schematic labels require zooming in the detailed drawings.

Supplied as one printable, English-language 890-page PDF, including three front-matter pages and 23 section contents/divider pages.

Hydraulic Testing, Drivetrain Repair and Machine Service

The selected topics below are supplemented by cab-glazing replacement procedures and air-conditioning leak-testing and charging instructions.

• Hydraulic diagnosis: Fixed-flow and variable-flow pump testing, regulator adjustment, loader and excavator valve pressure checks, ram creep tests, and hydraulic cylinder rebuilding.

• Transmission repair: Synchro Shuttle and Powershift removal, internal inspection and assembly, clutch-pack service, torque converter stall tests, and transmission pressure and flow checks.

• Electrical fault tracing: Basic-machine and 214e wiring diagrams, transmission circuit schematics, harness drawings, connector references, and ShiftMaster diagnostic guidance.

• Brakes and steering: Service-brake bleeding, piston-seal leakage checks, parking-brake service, hydrostatic steering tests, proximity-switch adjustment, and steer-mode solenoid checks.

• Body and working equipment: Loader-arm, kingpost, boom, and dipper removal, Extradig wear-pad adjustment, Power Sideshift service, and stabilizer-leg repairs.

• Engine and maintenance: Engine removal and installation, fuel lift-pump strainer cleaning, cooling-system maintenance, service schedules, lubricant specifications, and component torque tables.

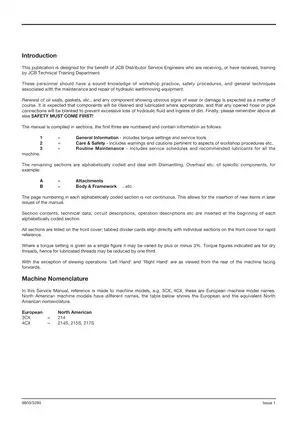

Written for JCB distributor service engineers receiving or having completed JCB training, this manual assumes sound workshop knowledge and experience maintaining hydraulic earthmoving equipment.

Hydraulic Circuits and Component Overhaul

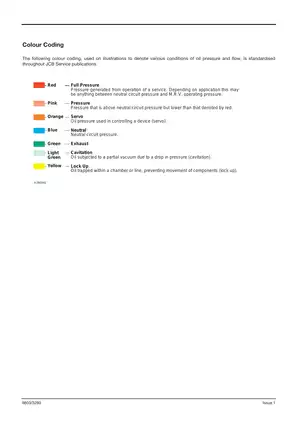

The hydraulic sections distinguish fixed-flow, variable-flow, and Precision Control (Servo) systems. Hydraulic circuit schematics separate the early servo arrangement from the later system, helping technicians select the appropriate test points and valve information before diagnosing a machine.

Coverage extends to the Smooth Ride System (SRS), Hose Burst Protection Valves (HBPV), and Hydraclamp circuits. Pump tests address output flow, load-sense pressure, standby pressure, and regulator operation. Service-tool references include hydraulic pressure test kit 892/00253.

The ram rebuilding instructions explain how hydraulic oil contacting uncured high-strength threadlocker can weaken the threaded joint, with curing requirements addressed alongside assembly information.

Gearbox Repair and ShiftMaster Diagnosis

Step-by-step procedures cover gearbox removal, disassembly, inspection, and reassembly. Four-speed and six-speed transmission drive-path diagrams support the descriptions of clutch operation and power flow.

The ShiftMaster section explains ECU status displays, requested versus selected gears, solenoid outputs, and communication troubleshooting. Diagnostic work uses separate software and the JCB Electronic Service Tool Kit 892/01033; conventional multimeter checks are also described.

Machine-specific ECU setup data cannot be changed with the documented service tools. Application-software updates are discussed separately, so this material should not be treated as an ECU calibration guide.

The torque converter installation cautions explain how incorrect engagement with the gearbox pump can damage the pump when the engine starts.

Wiring, Axles, Brakes and Steering

Side-console harness drawings distinguish the electrical builds identified in the model box. Together with connector views and transmission circuit schematics, they let technicians cross-reference wire identifiers, component locations, and test information during fault tracing.

Axle procedures cover SD55 and SD70 front axles and PD70 and SD80 rear axles, including pinion-depth setting and crownwheel-and-pinion meshing checks. Separate steering schematics explain two-wheel-steer and four-wheel-steer systems, including the priority valve and Steer Mode Control Valve.

Brake coverage includes the compensating master cylinder, servo unit, oil-immersed service brakes, and parking-brake caliper.

Engine Scope and Structural Work

The engine section provides specifications, lift-pump strainer service, and engine removal and replacement. Internal engine overhaul requires separate publications: 9806/0100 for AA/AB engines and 9806/2140 for AK/AM/AR engines; these publications are not included.

Body and framework procedures address component removal, wear-pad adjustment, and Power Sideshift chain adjustment. Section A, Attachments, contains a contents divider only.

Service work requires the manual’s precautions for raised loader arms, stored hydraulic pressure, and properly supported heavy components.

Selected Service Specifications

The cooling-system capacity table lists 23.0 liters. Lubricant charts distinguish axle-oil requirements and temperature-dependent ISO VG46 or ISO VG32 hydraulic oils; general torque tables cover UNF Grade S and metric Grade 8.8 hardware.

For SS700 transmission testing, main-line pressure in neutral is specified at 11.0–13.0 bar with oil at 50°C and the engine at 1,000 rpm. The PS764 and PS766 specification sheets list control-solenoid coil resistance at 7.5 ohms at 20°C.
