Honda AquaTrax ARX1500T3/T3D PWC Service Manual – 2008

Honda Motor Co., Ltd.'s April 2008 service manual covers the 2008 AquaTrax ARX1500T3 and ARX1500T3D (model code SW05), both with the SW05E engine. T3D coverage includes its GPS receiver and boarding step.

PDF Search, Chapter Bookmarks and Wiring Detail

Search and diagram detail: PDF text search is available across much of the manual, but some specification tables and repair pages have no searchable text. Chapter bookmarks are included; the “Keyword Search” bookmark has no usable destination. Small pin numbers and wire-color labels in the two-page color wiring diagram require zooming.

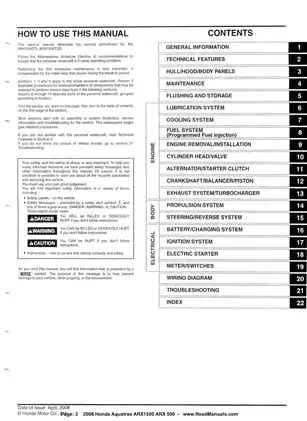

Supplied as one printable, English-language, 448-page PDF, including the cover, two introductory pages and eight blank pages.

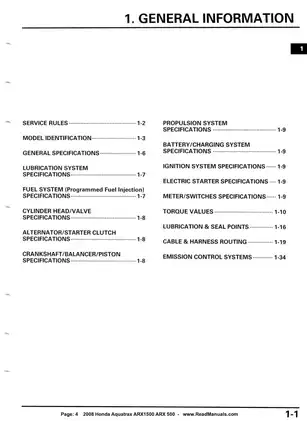

Engine, PGM-FI and Jet-Drive Service

The following selected service topics show the range of work covered, rather than the full contents. Other examples include deck-mat replacement and combination-meter ID-number writing procedures.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve service, camshaft timing, crankcase separation, and crankshaft, balancer and piston inspection.

• PGM-FI diagnosis: Symptom charts, DTC circuit tests, ECM connector checks, fuel-supply testing, injector service and idle-air control diagnosis.

• Lubrication and cooling: Oil-pump disassembly, oil-pressure testing, oil-cooler and thermostat inspection, cooling-flow diagrams and overheating fault charts.

• Turbocharger and exhaust: Intercooler cleaning, wastegate checks, exhaust-component removal and turbocharger assembly replacement.

• Jet pump and controls: Pump teardown, impeller inspection, drive-shaft bearing and water-seal replacement, steering/reverse adjustment and cable replacement.

• Electrical systems: Charging and ignition tests, starter-motor repair, meter and switch checks, wiring diagrams and T3D GPS troubleshooting.

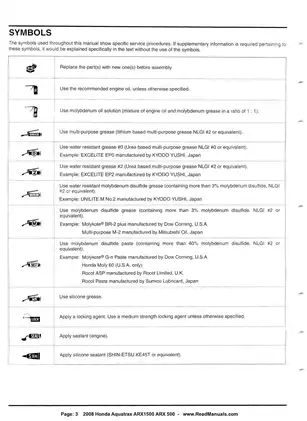

• Maintenance and bodywork: Service schedules, valve-clearance shim selection, flushing, storage, submerged-watercraft procedures, body-panel removal and boarding-step service.

Written for readers with basic maintenance knowledge of Honda motorcycles, scooters, ATVs or personal watercraft; advanced work requires the specified tools and mechanical skills.

Engine Access and Internal Repair

The manual distinguishes in-hull camshaft and cylinder-head work from engine-out oil-pump, alternator/starter-clutch and crankshaft repairs, so you can plan access and workshop equipment before teardown.

Internal repair coverage for the longitudinal inline-four includes chain-driven DOHC timing, valve-guide replacement, valve-seat refacing, piston and cylinder measurements, color-coded bearing selection and balancer timing. Warm-engine cylinder compression is specified at 1,177 kPa (171 psi) at 350 rpm with the throttle fully open.

Engine-to-jet-pump alignment must be checked after engine removal; misalignment can cause vibration and component damage, while incorrect front-cover engagement can damage the oil-pump drive and driven joints.

Oil Service, Cooling and Seasonal Maintenance

The dry-sump fill quantities distinguish repair states: 4.2 L (4.4 US qt) after draining, 4.3 L (4.5 US qt) with filter replacement and 5.3 L (5.6 US qt) after disassembly.

The schedule lists initial maintenance at 10 hours, oil replacement every 50 hours or yearly, and valve-clearance inspection every 200 hours. Turbocharger-anode inspection/replacement is scheduled at 200 hours or 12 months, whichever comes first; the exhaust-manifold, oil-cooler and cylinder-head anodes have a 400-hour interval.

Cooling-system fault charts separate engine, exhaust and oil-cooling symptoms. Flushing, storage preparation and return-to-service procedures address water management and corrosion protection. Incorrect flushing-water timing can admit water into the exhaust and engine; excessive dry running can damage both systems.

Turbocharger Service Limits

The exhaust section covers removal, cleaning and inspection of the water-cooled intercooler, exhaust body, exhaust pipe and water muffler. Turbocharger work includes wastegate checks and assembly removal/installation; a faulty turbocharger is replaced as an assembly, not internally overhauled.

PGM-FI, Electrical and GPS Fault Tracing

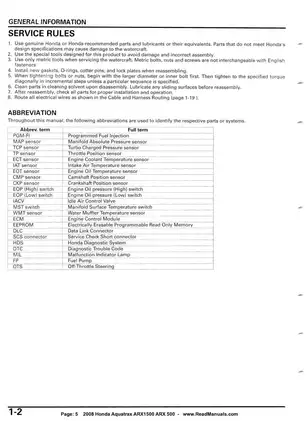

The HDS Pocket Tester reads DTCs, freeze data, current data and ECM conditions. MIL blink-code diagnosis is also documented, but it displays main codes rather than HDS subcodes.

Circuit tests cover MAP, TP, ECT, IAT, TCP, EOT and WMT sensors, CKP/CMP signals, fuel injectors, IACV, oil-pressure switches and wastegate control. Symptom troubleshooting addresses starting trouble, power loss and poor running at low or high speed.

Charging checks distinguish battery condition, current leakage, alternator output and regulator/rectifier faults. Starter coverage extends to brush, commutator and armature inspection; T3D GPS diagnosis separates communication errors from extended start-up times.

Jet-Pump Measurements and Steering Work

The single-stage axial-flow pump uses a stainless-steel three-blade impeller. Impeller-to-stator clearance is 0.3–0.5 mm, with a 0.9 mm service limit; drive-shaft runout has a 0.2 mm service limit.

Steering/reverse coverage extends beyond adjustment to shaft, nozzle, bucket and cable service, with related Off-Throttle Steering (OTS) checks.

Diagrams and Workshop Equipment

Named references include Cable & Harness Routing, the Lubrication System Diagram and Cooling System Flow Pattern. Routing views identify installed sensor, injector, ECM, regulator/rectifier, starter, fuel-pump, warning-buzzer and T3D GPS connections.

The PGM-FI System Diagram, Battery/Charging System Diagram and Wiring Diagram (ARX1500T3/T3D) support circuit tracing, including T3D GPS connections.

Special-tool references include SCS connector 070PZ-ZY30100, ECM test probe 07ZAJ-RDJA110 and compression-gauge attachment 07RMJ-MY50100.

Pressure-testing equipment is identified separately: fuel-pressure gauge 07406-0040004 or 07406-004000B (U.S.A.), and oil-pressure gauge set 07506-3000001 with attachment 07406-0030000.

Service work can involve pressurized fuel, engine lifting, rotating jet-pump components, electrical testing, and water-ingestion risk. Follow the Honda safety messages and the applicable repair procedure for the specific T3 or T3D configuration.

A Preview of Pressure and Valve-Clearance Data

Pressure checks: Oil pressure at the EOP (Low) switch port is specified at 294 kPa (43 psi), at 3,000 rpm and an oil temperature of 80°C (176°F). Fuel pressure is specified at 294 kPa (43 psi) at idle.

Valve adjustment: With the engine cold, below 35°C (95°F), specified clearances are 0.20 ± 0.03 mm intake and 0.26 ± 0.03 mm exhaust. The maintenance section pairs these settings with shim-selection calculations.
