John Deere 310G Backhoe Loader Operation & Tests Manual, 1998–2004 (P/N TM1885)

644 Pages • ZIP Download: Printable PDF • 35.51 MB

5.0starstarstarstarstar(1)
$40.75 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Model: 310G (POWERTECH 4.5L diesel, engine model 4045)

Model Years: 1998–2004 (1998, 1999, 2000, 2001, 2002, 2003, 2004)

Sub-models / Variants: 4-speed synchronized manual transmission with a non-powered front axle or optional mechanical front-wheel drive (MFWD)

Serial Breaks:

  • Engine fuel system and electrical schematics: S.N. —910055 / 910056—

  • Hydraulic component-location diagram: S.N. —910944

  • Non-powered front axle alignment: S.N. —911131 / 911132—

  • Ride control and loader/stabilizer hydraulics: S.N. —913416 / 913417—


  • Engine idle speed (slow): 880–900 rpm

  • Engine fast idle speed: 2350–2400 rpm

  • Speed control lever operating force: 40–49 N (9–11 lb force)

  • Fast idle sensor output: 2.59 ± 0.5 Voltage

  • Slow idle sensor output: 0.85 ± 0.2 Voltage

  • Maximum backhoe and loader function drift during operational checkout: 50 mm (2.0 in.) in one minute at slow idle with hydraulic oil at 38–52°C (100–125°F)

John Deere Manual Features & Selected Content Preview

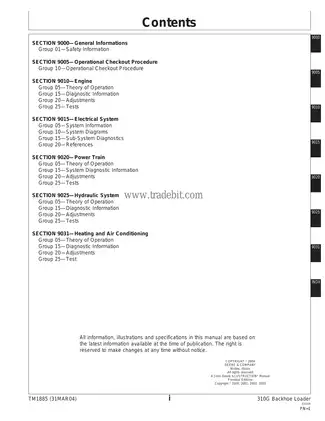

John Deere’s Operation and Tests Technical Manual (P/N TM1885) covers the 1998–2004 310G Backhoe Loader. This is the English edition dated March 31, 2004.

PDF Search, Bookmarks, and Wiring Detail

Finding text and wiring details: The manual text is searchable. Some embedded bookmarks open the wrong page, and many wire and pin labels are part of the drawings. Small labels are best read at higher zoom or on the enlarged foldout pages. An overprint makes a few details on the A/C schematic harder to read.

The ZIP contains one printable 644-page PDF, including the original cover, 28 foldout detail pages, and 4 intentionally blank inserts.


Operational Checkout and System Tests

These are selected checks and procedures. The manual also covers the canopy heater control harness and booster-battery connections.

  • Operational checkout: Run checks from the operator’s seat for monitor lamps, FNR and neutral start, the reverse alarm, steering, brake operation, transmission neutral disconnect, shift behavior, and cab functions.

  • Engine diagnosis: Trace faults on the POWERTECH 4.5L (4045) with visual inspections, speed-control and throttle-position sensor procedures, and tests for intake leakage, radiator airflow, turbocharger boost, injection pump timing, and fuel-line leakage.

  • Electrical troubleshooting: Use serial-specific schematics and harness views to trace power, starting, charging, differential lock, MFWD, display monitor, ECU, park brake/FNR, ride control, selective flow, and pin-disconnect faults.

  • Power train and brakes: Check torque converter stall speed and forward and reverse clutch pressure. The manual also covers transmission pump flow, MICO power-boost brake valve leakage, service brake bleeding, and park brake tests.

  • Loader and backhoe hydraulics: Follow step-by-step procedures for pump flow, relief pressure, cylinder leakage, function drift, and cycle times. Adjustments cover loader self-leveling, return-to-dig, and control linkages.

  • Heating and air conditioning: Trace R134a system faults with wiring and pressure charts. Service procedures cover refrigerant recovery, evacuation and charging, oil charge, flushing, switch and clutch tests, and leak inspection.

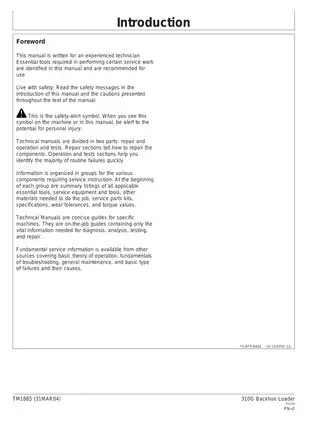

Deere wrote this manual for experienced technicians.

Fault Isolation and the Separate Repair Volume

The seat-based checkout gives you a starting point for intermittent complaints or faults that cross systems. It requires no special gauges, and the results point to follow-up diagnostics, adjustments, tests, or the applicable repair reference.

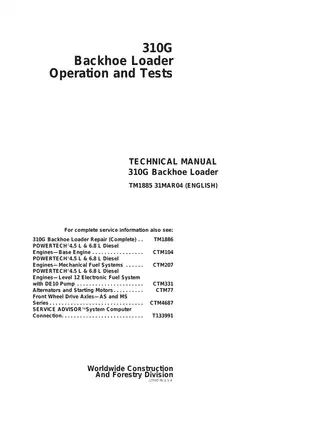

For component removal, disassembly, reassembly, and overhaul, Deere directs technicians to the separate TM1886 repair manual. The cover also references CTM104 for the base engine, CTM207 and CTM331 for the mechanical and DE10 electronic fuel systems, CTM77 for alternators and starting motors, CTM4687 for AS and MS Series front drive axles, and T133991 for the SERVICE ADVISOR computer connection. These are separate publications.

Serial-Specific Adjustments and Schematics

Through S.N. 910055, the engine section covers mechanical fuel-system checks and idle adjustments. Starting at S.N. 910056, it covers the DE10 electronic fuel system, ECU and monitor service codes, revised fuse information, and different Cab/ROPS (W6) and engine/transmission (W7) wiring and component-location views. The electrical reference includes monitor programming, tachometer calibration, and throttle-position sensor testing. A replacement monitor needs programming and tachometer calibration before the other functions are checked.

The hydraulic sections distinguish ride-control layouts, circuit relief valves, loader and stabilizer valve designs, lever settings, and self-leveling and return-to-dig procedures at S.N. 913416/913417. The serial break changes which loader relief test port applies. Non-powered front axle toe-in and tie-rod adjustments also change at S.N. 911131/911132.

Diagrams, Tools, and Test Setup

The engine sectional view, serial-specific system functional schematics, hydraulic system schematic, and A/C circuit schematic support the test procedures. The power train port map identifies separate connections for clutch, modulation, brake, and MFWD pressures. The open-center hydraulic section shows how the pump, filter, steering and priority valves, and loader, backhoe, and stabilizer valves interact. It also covers ride-control accumulator charge checks and discharge.

Tool callouts include the JT05801 clamp-on tachometer, JT05800 digital thermometer, JDG1496 test harness with JT05791 multimeter, JT07148 hydraulic tester, JT07158 TIME TRAC timing kit, and JT02045 R134a service station.

A closed flow-control valve at startup can damage the hydraulic pump. Deere also warns that certain raised-axle test conditions can damage MFWD on machines with power shift. Follow the manual’s precautions for high-pressure hydraulics, rotating drivetrains, raised-machine checks, live electrical circuits, and R134a service.

Sample Pump Flow and Loader Cycle-Time Specs

The 310G hydraulic pump flow test gives separate minimums of 23.5 gpm for a new pump and 18.8 gpm for a used pump. Both apply at 2,000 rpm, with oil at 120 ± 10°F and flow-meter pressure at 2,000 ± 10 psi.

The loader boom raise test allows up to 4.9 seconds from bucket flat on the ground to full height, including bucket self-leveling. The specification applies at fast idle with oil at 150 ± 10°F.
