Maserati Coupe & Spyder 2002–2008 Workshop Manual Collection

The workshop material supplies mechanical repair procedures, while the supporting bulletins address production changes, campaign eligibility and diagnostic-software matching. Other publications cover tester operation, parts identification and period dealer administration.

Coverage limits: Quattroporte and GranTurismo material consists of selected bulletins and references, not complete vehicle workshop manuals. The parts files reproduce the same Coupé extracts rather than separate full Coupé and Spyder catalogs; this collection also does not provide complete body or soft-top repair coverage.

PDF Search, Bookmarks and File Condition

Search and diagram detail: The Spyder workshop PDF has searchable text and section bookmarks, but many wiring drawings and some illustrated pages have no searchable labels. Small labels on the reviewed wiring pages are readable when enlarged. The Scantool and ModisCS manuals have no embedded text search or bookmarks; most other supplementary PDFs contain searchable text, with bookmarks available in seven short files.

The ZIP contains 42 PDF files. The 41 readable files total 976 PDF pages, including their covers, introductory material, forms and supplemental publications. The Coupé PDF declares another 723 pages but is truncated and does not open normally.

Engine, Cambiocorsa and Electrical Repair Coverage

The following are selected contents, rather than a complete table of contents. Additional topics include the battery master-switch earth locations and selected interior-component replacement procedures.

• Engine overhaul: Step-by-step removal, internal disassembly, cylinder-liner installation, crankshaft inspection, cylinder-head service, valve-seat work and camshaft timing.

• Clutch and Cambiocorsa: Gearbox, TCU and hydraulic power-unit replacement, clutch removal and balancing, SD2-assisted bleeding, sensor-magnet adjustment and SOFAST 2 PIS/Kisspoint procedures.

• Transaxle repair: Half-shaft service, gearbox and differential disassembly, reassembly, bearing-preload calculations, backlash measurement, tooth-contact checks and manual gear-control adjustment.

• Engine systems: Cooling, dry-sump lubrication, radiator and filter service, fuel-tank and pump replacement, evaporative-emissions components, exhaust work and R134a service information.

• Electrical diagnosis: Wiring diagrams, connector and pin assignments, fuse/relay information, alarm-trigger checks, alarm-memory interpretation and replacement-key programming.

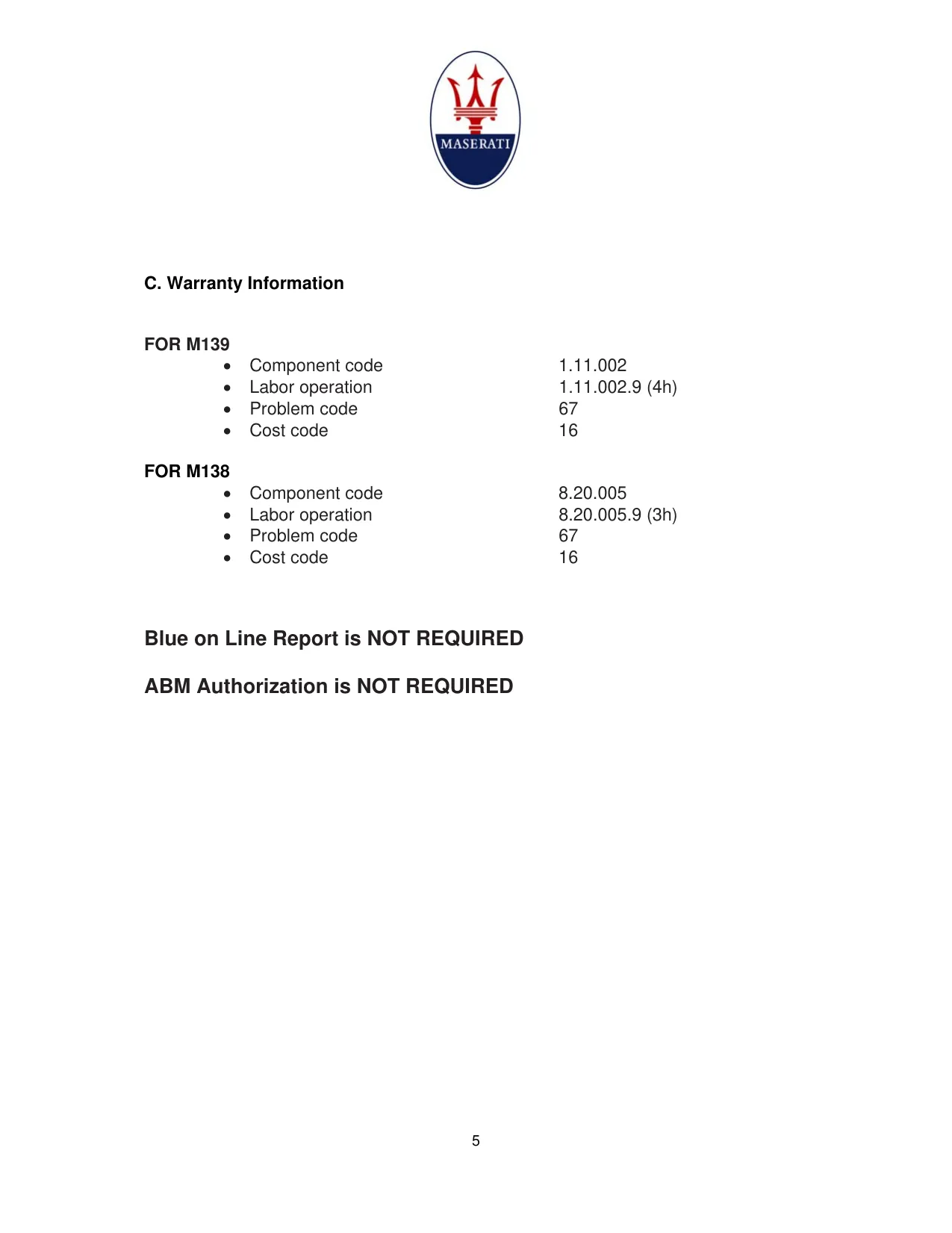

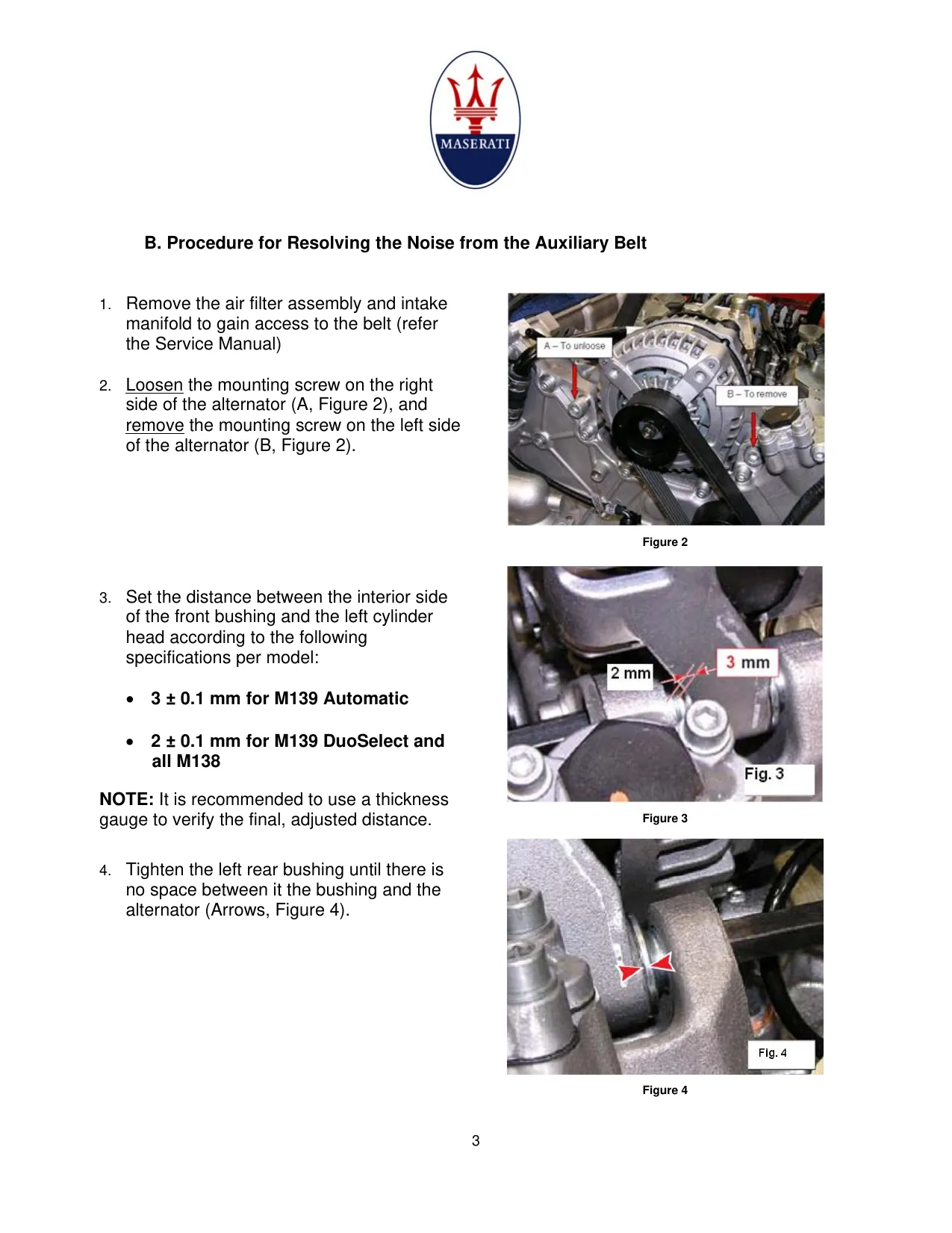

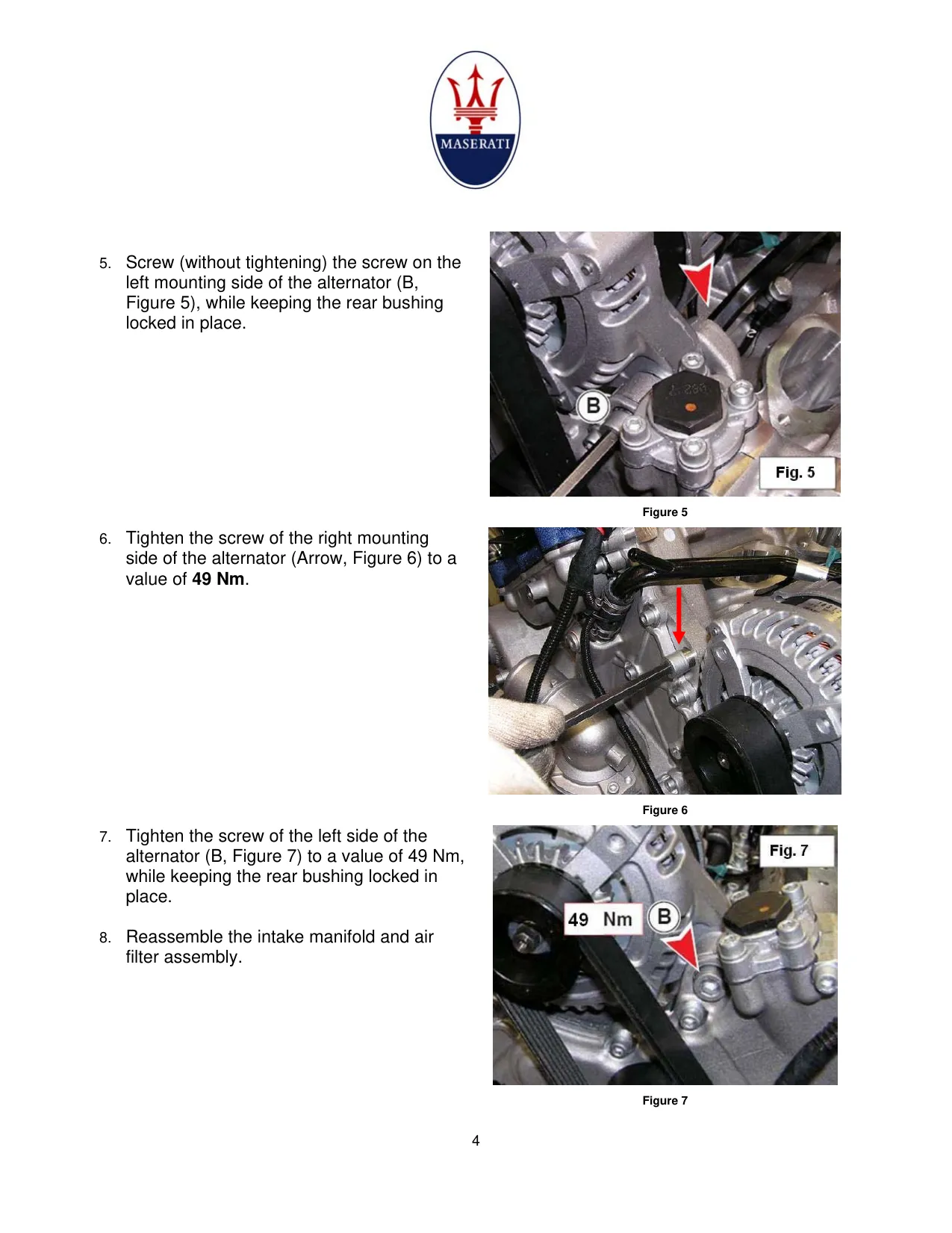

• Campaign repairs: Steering-rack bolts, rough-cold-start ECU software, dampened fuel rails, F1 oil-tank pipe unions, auxiliary-belt alignment and clutch-noise corrections.

• Diagnostic support: SD2/SD3 programming references, engine/Cambio software tables, emissions-readiness drive cycles, transponder-battery diagnosis and tester-update instructions.

This material is suited to experienced technicians and well-equipped independent repair shops because major procedures assume lifting equipment, precision measuring tools, SD2/SD3 access and factory service fixtures.

Engine Inspection and Timing

The M138 technical presentation describes the 4.2-liter V8, Bosch ME7.3.2 management, dry-sump lubrication, continuous intake timing variators, secondary-air injection and evaporative-emissions systems.

The Spyder workshop procedures extend into bearing selection, piston and cylinder-liner measurement, valve-guide and valve-seat inspection, Prussian Blue contact checks and Vacutest sealing tests. Component-specific tightening tables and numbered service tools accompany the work.

The timing chapter explains the controlled crankshaft and camshaft positioning needed to avoid valve-to-piston contact during assembly.

Clutch Setup and Differential Measurement

The PIS/Kisspoint chapter specifically applies to SOFAST 2 versions and describes clutch bedding, diagnostic connections and evaluation of the measured transmittability curve. Differential setup includes spacer calculations and rolling-torque checks, rather than removal instructions alone.

The clutch-bleeding chapter warns that an emptied reservoir can damage the hydraulic circuit and prohibits reusing discharged fluid.

Campaign Eligibility and Software Matching

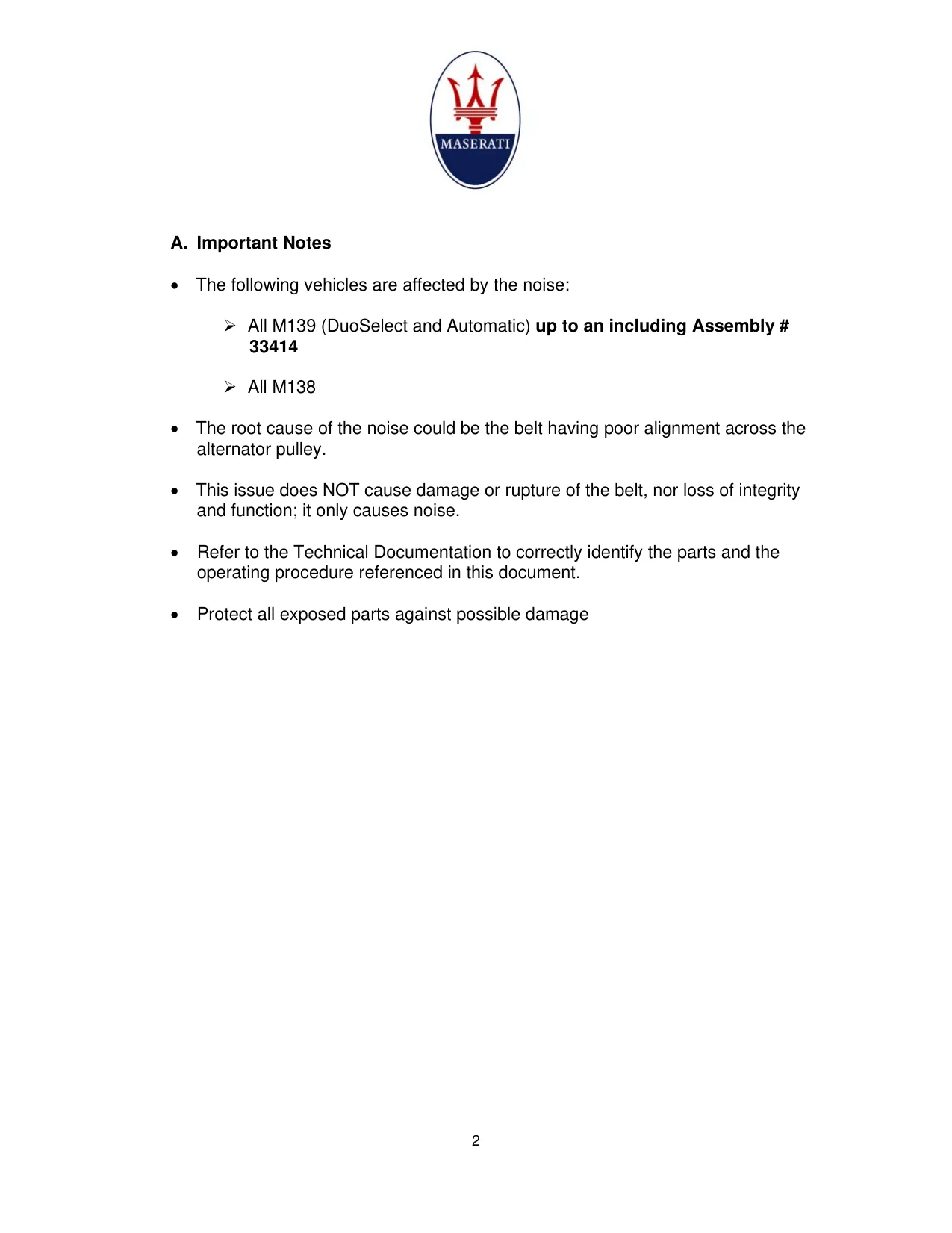

Assembly limits, engine-number cutoffs and factory-corrected vehicle lists help identify the applicable bulletin before parts or software are selected. The clutch-noise bulletin also specifies a post-repair Kisspoint requirement for M139 applications.

The software tables distinguish GT, F1, GranSport, 90th Ann. Spyder, Quattroporte DuoSelect, Quattroporte Automatic and GranTurismo applications. They identify engine and transmission files alongside CFC201, CFC231, CFC301 or ZF hardware.

SD3 references cover releases 8.7.01 and 8.7.04, M138 Porting Software, MTOOLS/KISSPOINT/TELECARICAMENTO, Operating System 2.33, CompactFlash storage and version verification. These are period factory workflows; software files and current MODIS access are not included.

Diagnostic equipment: The 900027470 DuoSelect cable-kit bulletin explains gearbox connection while lowered for self-learning, actuator bleeding and centering. Other references identify the 900027430 switch-matrix cable for M139EV07 diagnostics and the 900026750 tester for transponder-equipped batteries.

Wiring and Supporting References

Electrical examples include fuel-supply distribution, the Cambiocorsa robotized gearbox, engine fuel electronic management and injection wiring. NCM-M005 engine-control-node and NCR-M018 gearbox-node pin assignments connect the diagrams to individual control-unit terminals.

The MY2005 parts extracts cover injection, secondary air, fuel supply, anti-evaporation components, intake and accelerator controls. The AWS bulletin describes fault-data collection and referral to Technical Support, rather than a standalone sensor-repair procedure.

Fuel-system work, lifting operations, hot cooling components, refrigerant service and electronically controlled clutch procedures require suitable shop equipment and safety practices. ECU programming requires stable power and correctly matched diagnostic hardware and software.

A Preview of Cylinder-Head Inspection Data

For the M138 Spyder engine, valve-stem-to-guide assembly clearance is 0.030–0.060 mm for intake valves and 0.035–0.065 mm for exhaust valves. These are assembly clearances, not wear limits.

The cylinder-head section also specifies a Vacutest vacuum range of 0.86–0.94 bar for checking valve-seat sealing.
