Maserati Models Covered & Key Technical Specifications

Models & Model Codes: Quattroporte V (M139), Quattroporte Automatic, Quattroporte Sport GT, Quattroporte GTS, GranTurismo (M145; selected supplemental bulletins)

Sub-models / Variants: DuoSelect (CFC301; SOFAST3), Automatic (M139EV07 GQ; ZF), Quattroporte with ESP8, GranTurismo M145 (supplemental diagnostic and dealer information)

Model Years: 2002–2008 (2002, 2003, 2004, 2005, 2006, 2007, 2008)

Serial Numbers: Software-table assembly applications: Quattroporte through 21925 and from 21926; Quattroporte with ESP8 from 24275; Quattroporte Sport GT from 24557; DuoSelect and DuoSelect Sport GT from 27860; Automatic and Automatic Sport GT from 27465; Automatic and Automatic GTS from 34787; GranTurismo from 34082. These are application breaks within the software bulletin, not an overall serial-number limit for the set.

Campaign Applications: Quattroporte Campaign 126: assemblies 15140 (VIN 14216) through 17559 (VIN 16353); Campaign 128: US VINs 14216–15013 and Canadian VINs 14410–15027, subject to the included vehicle lists; Campaign 138: VINs 14719–17090; Campaign 139: assemblies 15140 (VIN 14216) through 18210 (VIN 17271); Campaign 140: through VIN 18629; Campaign 142: through VIN 20625; Campaign 144: through VIN 20785 (assembly 21975); Campaign 145: individually listed comfort-package vehicles; Campaign 147: assemblies 13757–20642; Campaign 152: assemblies 23742–23997; Automatic Campaign 162: through assembly 31081.

Component Serial Breaks: Quattroporte fuel-tank fasteners through assembly 14279 / from 14280; clutch-sensor harness modification through assembly 17584; quick-release negative battery terminal from assembly 18324; revised rollover valve from assembly 19454 (VIN 18352); revised right-side fuel sender from assembly 19763 (VIN 18193); wheel-alignment bulletin from assembly 21926; instrument-cluster start-date setup from assembly 23742; revised rear brake pads from assembly 25612 (VIN 24365); clutch-sensor connector treatment factory-applied from assembly 26975; larger front stone guards from assembly 28055; window anti-trap inspection and repair for assemblies 27860–30774.


  • Transmission ECU Hardware Types: CFC301 — Quattroporte DuoSelect; ZF — Quattroporte Automatic and GranTurismo software-table entries; CFC201 — Coupe/Spyder; CFC231 — Coupe/Spyder/GranSport. The CFC201 and CFC231 entries are supplemental references for other models.

  • Software/Campaign Updates: Campaign 140, 142, 144, 145, 152

  • Diagnostic Compatibility: SD2 and SD3 factory testers

  • Calibration Tooling: AWS Weight Set (10kg, 5kg), Clutch Balancing Tool Kit (p/n 900026160), Drive Shaft Balancing Weight Kit (p/n 900027520)

Maserati Manual Features & Selected Content Preview

Publication Pages
M139 Quattroporte workshop manual — engine, DuoSelect and electrical/electronic appendix 731
M139_B Quattroporte Release 1.0 spare-parts extract — groups 1.40–1.44 and 5.20 14

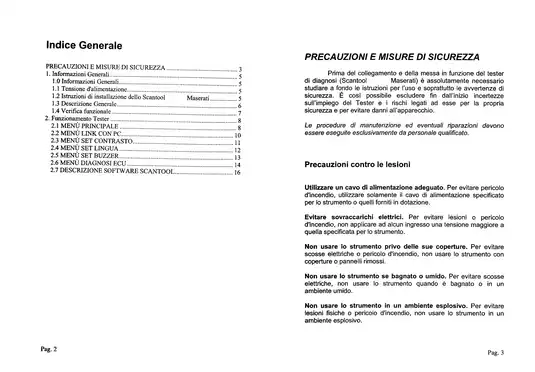

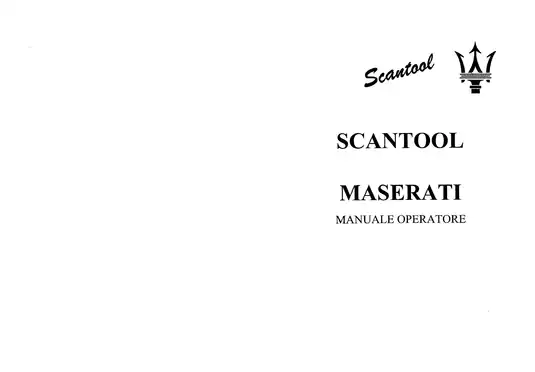

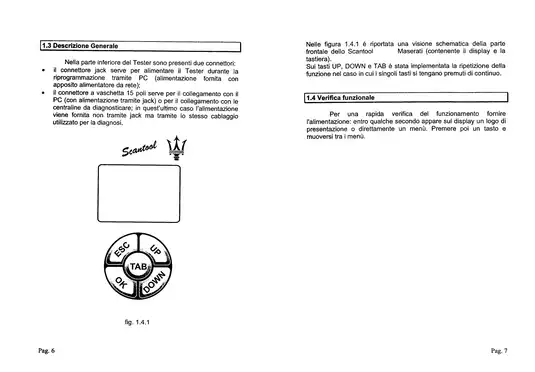

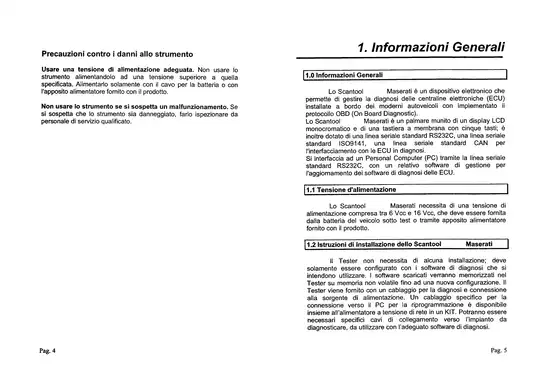

Maserati Scan Tool operator guide — Italian and English 20
AWS Calibration Weight Set 2
AWS Diagnosis and Repair Procedures 1
Aftersales Dealer Extranet 2
Air Conditioning Software Update — Campaign 144 6
Applicable Software Listing for Engine & Transmission — Bulletin 200742, through MY2008 2
Battery Diagnosis Tool — Coupe/Spyder 2
Compact Flash Card Expansion on SD3 3
Technical Support and Blue On Line Reporting Guidelines 3
Closing Down Campaigns 1
Clutch Position Sensor Connector — M139 DuoSelect 3
Clutch Sensor Harness — Quattroporte 2
Digital Camera / Borescope Kit 2
Drive Shaft Balancing Procedure — Quattroporte Automatic (M139EV07 GQ) 12
Driver Seat Harness — Campaign 145 5
Electric Parking Brake Appendix — Quattroporte Automatic 1
Engine Electronic Management — Campaign 140 3
Engine and Transmission Control Unit Reprogramming — Bulletin MNA-24 2
Front Wheel Stone Guard Deflectors 3
Goodwill Payments 1
Instrument Cluster — “NACK UNKNOWN” Display 1
Instrument Cluster Information 2
Instrument Cluster — “Incomplete Vehicle Data” 1
Instrument Cluster Setup 3
MY07 Quattroporte Automatic Introduction and BOL Reporting 1
MY08 GranTurismo (M145) Introduction and BOL Reporting 1
Kiss Point Procedure for MY06 Quattroporte 3
M139 Quattroporte Key Programming 1
Marketing Card Insertion and Warranty Start Date 1
Maserati Engine and Transmission Software on MODIS 2
Microsoft Internet Explorer 6.0 — ModisCS Access Notice 1
NIM Software Update — Campaign 152 6
Refresh/Recondition Checklist — MNA-46A Attachment A 6
Refresh/Recondition Clutch and Electrical Updates — MNA-46A 2
New ModisCS Warranty System User’s Manual, including covering bulletin 16
Oil Pipe Between Pump and Reservoir — Campaign 138 3
Outer Door Handles — Recall 128, US package 19
Outer Door Handles — Recall 128, Canadian package 13
Parking Brake — Campaign 147 4
Passenger Air Bag Light — Campaign 136 Supplemental Information 2
Printing Software Identification Labels After Reprogramming 3
Quattroporte Transmission Diagnosis Software 2
Quick-Release Negative Battery Terminal — M139/M145 3
Right-Side Fuel Pump / Sender — Quattroporte 1
Outer Door Handles — Recall 128, duplicate US package 19
Outer Door Handles — Recall 128, duplicate Canadian package 13
Rear Brake Pad Noises 1
Rear Brake Pad Replacement — Authorization and BOL Requirements 1
Rear Caliper Brake Hose — Campaign 139 3
Rear Seat Armrest Cup Holder Repair 2
Canadian Import Compliance and Recall Letter — Cost Update 1
Reverse Gear Lever — Campaign 126 1
Reverse Shift Lever — CambioCorsa 1
Roadside Assistance Program Changes 2
Rollover Valves — Quattroporte 1
SD3 Version 8.7.01 Software Patch 3
SD3 Version 8.7.04 Upgrade — M139, M139EV07 and M145 12
SD3 Version 8.7.01 Upgrade 14
Quattroporte Service Procedures 1
Quattroporte Automatic Special Tools 6
Tech Tips 6 — Quattroporte and selected GranTurismo topics 10
F1 Clutch Circuit Pressure Sensor — Assembly and Tightening Torques 2
Tire Pressure Check and TPMS Calibration at PDI 3
Transmission Control Unit Software — Campaign 142 7
Transmission Drive Shaft — Campaign 162 4
Using the Correct Diagnostic Software — Quattroporte 2
Canadian Import Compliance / Recall Letter Procedures and Form 3
VIN and Assembly Number Ranges — Bulletin MNA-65 4
Warranty Parts Return Form 2
Wheel Alignment — Quattroporte 2
Windshield Replacement — M139 2

The workshop manual supplies the mechanical repair procedures, while the bulletins add application-specific diagnostics, software updates and campaign repairs. The parts extract supports component identification; the Scan Tool guide explains tester operation and OBD functions.

Coverage limits: The deepest repair coverage concerns early M139 and DuoSelect cars. Later Automatic, Sport GT, GTS and GranTurismo references are supplemental; they do not provide a complete workshop manual for every listed configuration. Automatic coverage does not include a full internal ZF transmission overhaul chapter, and a complete wiring-diagram manual is not included.

PDF Search, Navigation and Download Contents

Search and navigation: The workshop PDF has searchable text and chapter bookmarks. The Scan Tool guide and ModisCS warranty manual do not support PDF text search; the parts extract and several bulletin pages are only partly searchable. Twelve bulletin PDFs have basic bookmarks; the remaining supplemental PDFs have none. Ground-location and harness drawings are included, with zoom useful for smaller callouts. Some callout boxes in the clutch-harness routing illustration are blank.

The ZIP contains 74 printable PDFs totaling 1,044 pages: 731 workshop pages, 14 parts pages, 20 Scan Tool pages and 279 bulletin-folder pages. Covers, forms and 32 pages of duplicated recall documents are already included in that total. An Excel Refresh/Recondition estimate worksheet and an HTML navigation menu are also supplied. Most workshop and bulletin text is in English; the Scan Tool guide includes Italian and English.


Engine Repair, DuoSelect Setup and Dealer Diagnostics

The following are selected content highlights, rather than a complete contents list. Additional subjects include TPMS calibration and rear armrest cup holder repair.

  • Engine repair: Step-by-step engine-and-frame removal, internal disassembly and assembly, cylinder-liner installation, crankshaft and bearing selection, cylinder-head work and camshaft timing.

  • Fuel, cooling and exhaust: Injector and fuel-pump removal, evaporative-system component replacement, radiator and water/oil-pump service, coolant bleeding and market-specific exhaust procedures.

  • DuoSelect service: Clutch and thrust-bearing replacement, hydraulic bleeding, sensor adjustment, gearbox and power-unit removal, PIS/Kiss Point setup, DEIS and gear-grid learning.

  • Automatic driveline: Campaign-specific driveshaft alignment and SD3/DSE balancing, including sensor setup, balance-weight positioning and Initial Run–Trial Run–Final Run documentation.

  • Electrical and body systems: Ground-location drawings, control-unit replacement, key and proxy programming, battery-disconnection relearning, sunroof repair and window anti-trap checks.

  • Dealer diagnostics: ECU/TCU identification and reflashing, NIM and NCL updates, instrument-cluster setup, software-label printing, airbag cycle tests and AWS support requirements.

This material suits professional technicians and experienced Maserati specialists with SD2/SD3 access, lifting equipment and the measuring tools required for engine work.

Engine Inspection and Supporting Systems

The engine chapters go beyond removal and replacement. They cover liner protrusion, piston and connecting-rod inspection, crankshaft journals, color-coded bearing selection, valve guides and seats, spring checks and continuous timing-variator adjustment. Valve-seat replacement includes work expressly assigned to a specialized laboratory.

Illustrations include bearing-selection charts, camshaft timing-reference views and clutch-to-flywheel alignment drawings. The timing chapter explains the piston and camshaft positioning precautions needed to prevent valve-to-piston interference.

Cooling and fuel sections distinguish component replacement from routine checks. They include water/oil-pump sealing checks, heat-exchanger leak testing, fuel-tank and pump removal, and USA/Canada evaporative-system procedures. Exhaust sections identify separate USA/Canada arrangements rather than treating every market version alike.

DuoSelect Repair and Electronic Setup

Mechanical clutch and gearbox work is linked to the required SD3 setup, helping the technician identify which learning operations accompany the repair. The NCR M139 SOFAST3 procedures distinguish DEIS spring calibration, gear-grid self-learning and accelerometer calibration; a separate bulletin addresses the MY06 Kiss Point software.

The clutch chapters distinguish lateral, lower and central bleed arrangements. They also cover thrust-bearing dismantling and clutch-sensor magnet adjustment. The gearbox-oil cooler is absent on US versions and appears on other versions only through the end of 2004.

Tool references include SD3 tester P/N 95970312, clutch-centering shaft P/N 900026250, transmission support P/N 900027300 and gearbox-oil level tool P/N 900027330.

Automatic Driveshaft and Diagnostic Applications

The Automatic balancing bulletin distinguishes its driveshaft from the DuoSelect torque tube. It documents the optical speed sensor, accelerometer, DSE connections and fixed flange positions used for balancing, supported by equipment-layout illustrations and SD3 screens.

Required tool references include the SD3-DSE cable kit P/N 900027400 and balancing weight kit P/N 900027520. The Automatic special-tool bulletin also identifies tools for the differential, torque converter, seals and transmission-fluid level checks.

Bulletin MNA-24 separates Quattroporte CFC301 hardware from Coupe, Spyder and GranSport CFC201/CFC231 applications. The later software table distinguishes DuoSelect and ZF Automatic configurations by trim and assembly break. Using the wrong diagnostic environment can produce false faults or incomplete data.

Control Units, Body Repairs and Campaign Information

Software documentation covers SD3 releases 8.7.01 and 8.7.04, M139/M139EV07 loading and verification, MTOOLS and ECU/TCU reflashing. Instrument-cluster material addresses service-interval behavior, vehicle start-date programming, proxy alignment, “NACK UNKNOWN” and “INCOMPLETE VEHICLE DATA.”

The electrical appendix includes ground-location maps and procedures for several control units, alarms and sunroof components; some entries refer to separate workshop chapters. Sunroof coverage includes motor replacement, glass adjustment, runners and runner alignment.

Dealer bulletins address clutch-harness moisture protection, window anti-trap repairs, the outer-door-handle recall, oil-line and rear-caliper-hose campaigns, fuel sender and rollover-valve changes, windshield stress-crack prevention and loaded-condition wheel alignment.

Tech Tips 6 warns that disconnecting battery power during NIT radio-code entry can permanently lock the unit and require replacement. The PDFs explain dealer software procedures but do not include MODIS/SD3 software or access credentials.

The parts PDF is an extract, not a complete catalog. Its exploded views and lists cover intake components, the air filter, fuel tank, pumps, vapor control and pedal support, including market-specific applications.

The bulletin folder mixes repair information with historical warranty and administrative notices, plus selected Coupe, Spyder and GranTurismo material. Driveshaft balancing involves a rotating driveline on a raised, supported vehicle; fuel, refrigerant, brake and electrical work requires the workshop precautions specified in the documentation.

Selected Cylinder-Head Fitting Clearances

The cylinder-head data list intake valve-stem-to-guide fitting clearance at 0.030–0.060 mm and exhaust fitting clearance at 0.035–0.065 mm. Bucket-to-seat fitting clearance is 0.025–0.057 mm.

These are assembly clearances, separate from the table’s wear-limit entries. They accompany dimensional drawings and inspection procedures for evaluating cylinder-head components.
