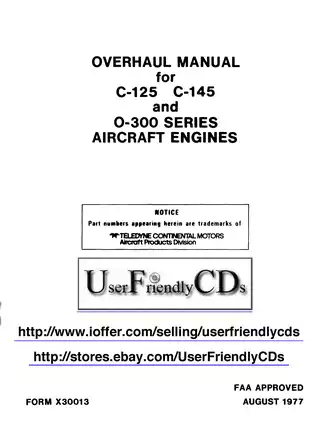

Continental C-125, C-145 & O-300 Engine Overhaul Manual – 1977 (P/N X30013)
66 Pages • 1 Printable PDF (English) • Download
Continental Models Covered & Key Technical Specifications
Models: Continental C-125, C-145, O-300-A, O-300-B, O-300-C, O-300-D, O-300-E
Sub-models / Variants: 6-cylinder, C-125 (C-125-2), C-145 (C-145-2, C-145-2H), dampened C-145 crankshaft (indicated by 'D' in serial)
Model Year: 1977
Serial Numbers: O-300-C engines subsequent to No. 21001: equipped to accept an optional right-angle starter drive
-
Engine displacement: 282 cu. in. (C-125), 301 cu. in. (C-145, O-300)
-
Horsepower: 125 BHP (C-125), 145 BHP (C-145, O-300)
-
Rated RPM: 2550 (C-125), 2700 (C-145, O-300)
-
Compression ratio: 6.3:1 (C-125), 7.0:1 (C-145, O-300)
-
Oil sump capacity: 8 U.S. quarts
-
Firing order: 1-6-3-2-5-4
-
Fuel octane rating: 80/87
Continental Manual Features & Selected Content Preview

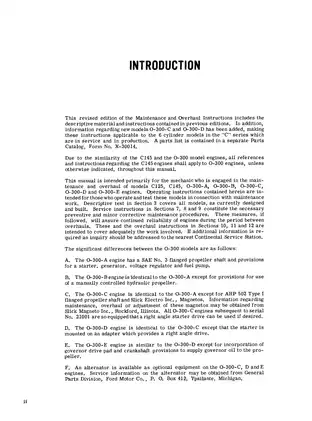

Continental’s FAA-approved August 1977 overhaul manual (P/N X30013) covers the C-125, C-145, and O-300-A through O-300-E aircraft engines. C-145 instructions generally apply to the O-300 unless the manual states otherwise.
PDF Search, Bookmarks and Diagram Detail
Search and drawing detail: An embedded OCR layer supports text search across much of the manual, but recognition errors affect some passages and table entries. PDF bookmarks link the main sections. Small wiring labels require zooming; some fine lettering in the regulator illustration remains less distinct.
One printable English PDF contains 66 pages, including one additional cover page and the 65-page manufacturer manual.
Engine Overhaul and Accessory Service

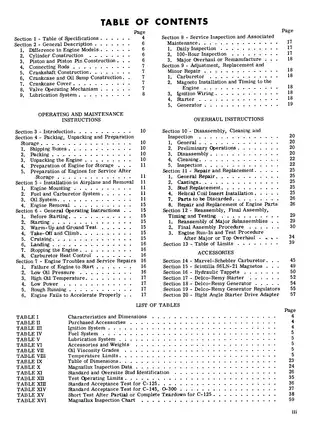

The following is a selected content overview, rather than a complete table of contents.
-
Engine handling and line service: Storage preparation, aircraft installation and removal, operating checks, routine inspection, and troubleshooting for starting, lubrication, temperature, power, rough-running, and acceleration problems.
-
Internal overhaul: Step-by-step disassembly procedures cover cylinders, pistons, valve gear, hydraulic tappets, crankcase separation, crankshaft and connecting-rod removal, followed by cleaning and inspection.
-
Repair and reassembly: Castings, studs, helical-coil inserts, cylinder bores, valves and guides, damper bushings, pistons, oil-pump parts, gear timing, cylinder installation, and ignition timing.
-
Configuration identification: Propeller-shaft, magneto, starter-drive, governor, and hydraulic-propeller differences distinguish the covered variants, including the O-300-C starter-drive serial break.
-
Accessory service: Marvel-Schebler MA-3SPA carburetor, Scintilla S6LN-21 magnetos, hydraulic tappets, Delco-Remy starter, generator and regulator, plus the right-angle starter-drive adapter.
-
Inspection and testing references: Dimensional inspection, magnetic-particle crack detection, engine run-in, acceptance-test schedules, torque tables, wear and fit limits, gear backlash, and spring-pressure data.
Continental wrote this manual primarily for mechanics engaged in engine maintenance and overhaul; its operating instructions address personnel who run and test these engines during maintenance work.
Model Differences and Scope
The variant notes help match parts and repair work to the installed configuration. The O-300-A uses the SAE No. 3 flanged propeller shaft and provides for the starter, generator, regulator, and fuel pump. The O-300-B adds provisions for a manually controlled hydraulic propeller.
The O-300-C substitutes an ARP 502 Type I flange and Slick magnetos. Engines subsequent to S/N 21001 can accept a right-angle starter drive. The O-300-D incorporates that starter arrangement, while the O-300-E adds a governor-drive pad and crankshaft oil provision for the propeller governor. An alternator was optional on the C, D, and E versions.
C-125 and C-145 construction: The manual distinguishes pistons and oil-ring placement, connecting rods, crankshafts and dynamic dampers, camshafts and lifters, crankcases, and oil sumps. It identifies the C-145-2H hydraulic-propeller oiling arrangement and the dampened C-145 crankshaft designation.
Separate documentation: This is an overhaul manual, not a parts catalog. Parts Catalog Form X-30014 is separate and is not included. Slick magneto maintenance, overhaul and adjustment, and service information for the optional alternator are referred to their respective manufacturers.
Inspection, Reassembly and Acceptance Testing
The inspection material covers crankcase, cylinder, valve-train, crankshaft, connecting-rod, piston, camshaft, gear, oil-pump, and accessory-drive checks. It explains dimensional comparison of mating parts and magnetic-particle inspection, rather than relying only on visual condition.
Reassembly instructions address crankcase joining, bearing and thrust-washer installation, camshaft and hydraulic-lifter work, and final assembly. The construction notes distinguish compatible camshaft and lifter types, while the tappet instructions explain why hydraulic plungers and cylinders must remain matched.
Engine run-in leads into separate standard acceptance tests for the C-125 and C-145/O-300. A shorter C-125 test applies after partial or complete teardown when no major parts have been replaced.
Carburetor, Ignition and Electrical Diagnosis
The MA-3SPA section explains idle and main metering, the back-suction economizer, accelerating pump, mixture control, carburetor adjustment, and float-height checking.
Starter service includes no-load and torque tests with guidance for interpreting current draw and speed. Generator and regulator sections distinguish no output, low or unsteady output, excessive charging, and related circuit faults. Hydraulic-tappet troubleshooting separates individual noise from general noise associated with oil supply or aeration.
Workshop Drawings, Tools and Repair Cautions

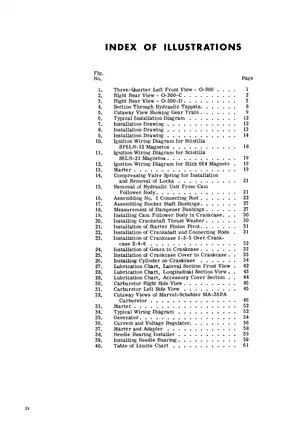

The manual contains 40 numbered illustrations and 16 numbered tables. Drawing examples include the gear-train cutaway; ignition wiring for Scintilla SF6LN-12, Scintilla S6LN-21, and Slick 664 magnetos; three lubrication-system sectional charts; the MA-3SPA carburetor cutaway; the starter-and-adapter exploded view; and the final Table of Limits chart.
Tool references include the Time-Rite piston-position indicator, Bendix-Scintilla 11-851 timing light or equivalent, Heli-Coil service tools, a Borrough’s damper-bushing tool, and an illustrated needle-bearing installer.
Improvised damper-bushing tools can irreparably damage the crankshaft or dampers. Lifting cylinders by their pushrod housings can bend the housings and cause oil leaks.
Engine removal, ignition work, electrical testing, and run-in involve lifting, fuel, high-energy ignition, and rotating machinery, so these procedures belong in a properly equipped aviation-maintenance setting.
Sample Cylinder-Bore and Gear-Backlash Limits
For the covered engines, the standard cylinder-bore diameter is listed at 4.062–4.064 in. for new parts, with a 4.069 in. service limit.
Crankshaft-to-camshaft gear backlash is specified at 0.006–0.009 in. for new parts, with a replacement limit of 0.013 in. These entries appear in Section 13’s Table of Limits.
