2005 Jeep Wrangler TJ Service Manual

Complete factory service manual for all Jeep Wrangler TJ models from 2005. Covers routine maintenance, diagnostics, and component repair with detailed procedures and specifications.

5.0starstarstarstarstar(1)
visibility Preview Available
Jeep 2005 Jeep Wrangler TJ Service Manual manual page preview - page 1 of

Sample pages from the 2005 Jeep Wrangler TJ Service Manual manual

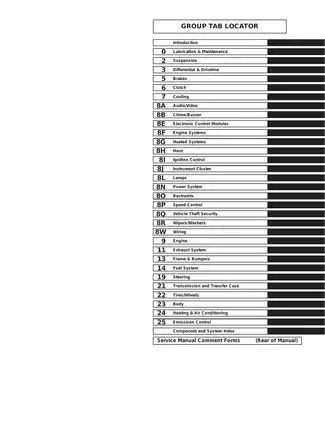

Jeep 2005 Jeep Wrangler TJ Service Manual manual preview page 1 - thumbnail

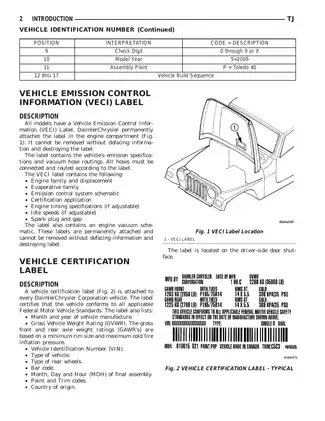

Jeep 2005 Jeep Wrangler TJ Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$17.09 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Jeep Models Covered & Key Technical Specifications

Models: Jeep Wrangler TJ
Sub-models / Variants: SE, X, Sport, Unlimited, Sahara, Rubicon, LHD (Left Hand Drive), RHD (Right Hand Drive)
Build Years: 2005
Technical Data:

  • Engine: 2.4L 4-cylinder DOHC, 4.0L 6-cylinder
  • Transmission: NSG370 6-speed manual, 42RLE 4-speed automatic
  • Transfer Cases: NV231, NV241
  • Axle Models: 181 FBI (Model 30), 194 RBI (Model 35), 216 FBI/RBI (Model 44)
  • Axle Ratios: 3.07, 3.73, 4.10, 4.56
  • Fuel Tank Capacity: 19 U.S. Gallons (71.9 Liters)
  • Coolant System Capacities: 8.5 L (2.4L engine), 9.9 L (4.0L engine)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25265 / Joseph Henry
File Size:
45.39 MB
File Type:
ZIP
Language:
`English
Printable:
Yes
Category:
SUV
Last updated / verified
Jun 16, 2025

Jeep Manual Features & Content Preview

2005 Jeep Wrangler TJ Service Documentation

  • Covers the 2005 Jeep Wrangler TJ including SE, X, Sport, Sahara, and Rubicon variants with 2.4L or 4.0L engines and manual or automatic transmissions
  • Official DaimlerChrysler publication with detailed component breakdown and technical specifications
  • Contains 59 pages of exploded-view diagrams, torque reference tables, and maintenance schedules
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • This 2005 edition provides the factory-authorized procedures for axle, steering, and suspension service, critical for maintaining the specific configuration of the TJ lineup

Manual Content and Coverage

This 2005 Jeep Wrangler TJ publication provides comprehensive documentation for the maintenance and repair of the Jeep Wrangler TJ model line. The document is structured into distinct chapters, beginning with a detailed introduction that includes VIN decoding, body code plate interpretation, and international symbol identification. The core of the manual focuses on lubrication and maintenance schedules, outlining specific service intervals for varying driving conditions, from standard road use to heavy-duty off-road or trailer-towing applications. It provides explicit fluid type recommendations, including proper Mopar coolant formulas, axle lubricant specifications, and transmission fluid requirements, ensuring the correct products are utilized for the Wrangler TJ drivetrain.

Specifications and Technical Data Preview

Technical Depth and Reference Values

Detailed technical tables are provided throughout, including specific torque values for suspension components such as shock absorbers, control arms, and track bars. The manual covers the what an OEM service publication covers in depth, including advanced procedures like pinion gear depth measurements using dial indicators and differential side-bearing preload selection. Torque specs for 2005 Jeep Wrangler TJ axle components are meticulously documented, such as the 237 Nm (175 ft. lbs.) specification for hub/bearing axle nuts. The document details the specific setup for the 181FBI and 216FBI axles, providing clear data for differential cover installation and backlash adjustment values of 0.12–0.20 mm. This 2005 Jeep Wrangler TJ factory manual is the definitive guide for enthusiasts and technicians, covering the complete technical scope of the Jeep Wrangler TJ production build.

Manual FAQ, Purchase & Download Details

What kind of visual aids and component illustrations are provided within this service manual? keyboard_arrow_down

Document includes various exploded views, component breakdown diagrams, and figure-based references for systems such as the body code plate, international symbols, and fastener identification. These illustrations support the textual content by visually defining components and their locations throughout the vehicle.

Is there a reference table available in the document for fluid capacity specifications? keyboard_arrow_down

Yes, the manual contains a specification table that lists nominal refill capacities for components like the fuel tank, engine oil, cooling system, transmission, and axle assemblies.

Are there specific chapters included in the manual for major systems like the engine, transmission, and steering? keyboard_arrow_down

Manual is organized into comprehensive group sections that cover major vehicle systems, including specific chapters for the engine, transmission and transfer case, steering, and electrical wiring. These chapters aggregate technical data and specifications relevant to those areas of the vehicle.
