Ford Models Covered & Key Technical Specifications

Models: 230A, 340A, 445, 530A, 540A, 545

Sub-models / Variants: LCG (Low Center of Gravity), Gasoline, Diesel

Model Years: 1975–1983 (1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982)

Transmission variants: 8 x 2 non-synchromesh (230A, 340A, 445, 530A, 540A, 545); 8 x 4 synchromesh (230A, 530A); 6 x 4 manual reversing (340A, 445, 540A, 545); 4-speed power reversing (445, 540A, 545)


  • Engine displacement: 158–201 cu in (variable by model)

  • Cylinders: 3-cylinder configuration

  • Cooling system capacity: 10.4 L (22 U.S. pt) without heater; 11.4 L (24 U.S. pt) with heater

  • Cylinder head bolt torque: Three stages: 122, 135, and 149 Nm (90, 100, and 110 lb-ft), with engine cold

  • Intake valve clearance: 0.36–0.46 mm (0.014–0.018 in)

Ford Manual Features & Selected Content Preview

This reprinted Ford Industrial Tractors Repair Manual, P/N 40023021 (SE4044), covers the 1975–1983 Ford 230A, 340A, 445, 530A, 540A, and 545. The January 1984 base printing incorporates Rev. 9/86 pages and Bulletin 2-86, with earlier model applications and limited later-model updates identified in the relevant sections.

PDF Bookmarks and Wiring Detail

Search and navigation: PDF text search is not available. Embedded bookmarks open all 12 parts. Small wiring-diagram labels and connector references require zooming for comfortable reading.

One printable English PDF contains 801 pages total: 800 manual pages, including the incorporated revision and bulletin material, plus one additional front page. The manual is organized into 12 parts and 48 chapters.


Engine, Drivetrain, and Tractor System Repair

The following selected coverage highlights outline major workshop tasks rather than reproduce the full contents. Other topics include wheel-tread settings and tire size and inflation tables.

  • Engine and cooling: Cylinder-head rebuilding, valve-train inspection, timing-gear service, crankshaft and camshaft work, oil-pump overhaul, radiator service, thermostat testing, and water-pump repair.

  • Fuel systems: Diesel injection timing, injector testing and overhaul, gasoline carburetor adjustment and rebuilding, fuel-pump service, filters, lines, and air cleaners.

  • Electrical diagnosis: Harness routing, instruments and senders, battery tests, starter and relay overhaul, alternator testing and repair, gasoline ignition service, and wiring diagrams.

  • Clutches, transmissions, and PTO: Single- and double-clutch repair, transmission overhaul, power-reversing hydraulic tests, and transmission, live, and independent PTO service.

  • Axles, brakes, and steering: Differential setup, planetary final drives, expanding-shoe and wet-disc brakes, transmission handbrakes, steering-system overhaul, and model-specific front-axle repair.

  • Hydraulics: Lift-cylinder and lift-cover overhaul, draft and position control, piston and gear pumps, filters, oil coolers, remote-control valves, pressure testing, and troubleshooting.

The manual is written for service personnel carrying out maintenance and overhaul; major repairs require suitable supports, service tools, and test equipment.

Model Applications and Later Updates

Earlier builds: Applicable fuel, clutch, and transmission sections include 1975–1981 coverage for the 231/531 LCG, 340, and 540. The fuel application chart separates the 1975–11/81 group from the 12/81-on 230A/530A/340A/540A/445/545 group, while the transmission matrix uses a 9/81 changeover.

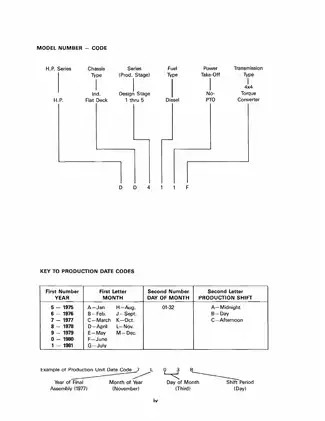

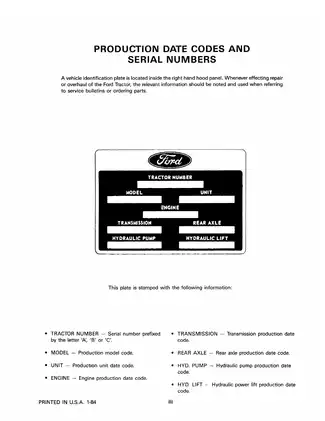

The front matter explains identification-plate and production-date information for the tractor, engine, transmission, rear axle, hydraulic pump, and hydraulic lift. These application charts help match the machine’s configuration to the appropriate repair section before selecting parts or test procedures.

Later revisions: Rev. 9/86 covers the 4 x 4 torque-converter-drive synchromesh transmission used in 340B, 540B, 445A, and 545A applications. Front-wheel-drive coverage for the 445A and 545A includes the axle, front gearbox, transfer case, driveshaft, and toe-in adjustment.

These updates do not provide full B-series repair coverage. The book covers the tractor power unit and chassis, not complete loader or backhoe attachment overhaul.

Engine Rebuilding and Cooling-System Differences

Engine inspection extends to valve seats and guides, rocker shafts, pistons and connecting rods, cylinder-block condition, main bearings, and the flywheel. Component illustrations accompany step-by-step procedures for disassembly, inspection, and reassembly.

Water-pump versions: Separate repair procedures apply before and from engine date code 1C23 (3/23/81). The later pump uses a redesigned cover, impeller, and cassette-type seal; its internal parts are not interchangeable with the earlier design.

Diesel Injection and Gasoline Fuel Service

Diesel sections explain injection-pump operation, timing, engine-speed and throttle-linkage adjustment, bleeding, and Thermostart service. Injector overhaul includes opening-pressure, spray-pattern, seat-leakage, and leak-back testing.

Injection-pump calibration and advance adjustment require a test stand and specialist equipment. Gasoline sections cover carburetor disassembly, inspection, float setting, governor and throttle adjustment, fuel-pump repair, and troubleshooting.

Electrical Fault Tracing and Corrected Wiring

Electrical problem/cause/remedy charts support starting, charging, lighting, and ignition diagnosis. Instrument Cluster Wiring and separate gasoline and diesel wiring diagrams show circuit connections alongside the harness descriptions.

Bulletin 2-86 supplies corrected diesel wiring for flat-top and round-fender configurations, including return-to-dig and transmission-dump circuits.

Transmission, PTO, and Chassis Overhaul

Separate chapters address six-speed, 8-speed non-synchromesh, 8-speed synchromesh, 6 x 4 manual-reversing, power-reversing, and revised 4 x 4 torque-converter-drive transmissions. Power-reversing service distinguishes the 1975–3/81 blocker-valve system from the 4/81-on modulator-valve design.

Drivetrain reference material includes bearing preload, shim selection, end play, backlash, and operational tests. Tractor-separation procedures cover the transmission-to-rear-axle, engine-to-transmission, and engine-to-front-axle joints for the two main model groups.

Assembly cautions: The clutch chapter warns that uneven pressure-plate bolt release can distort the cover. Hydrostatic steering service identifies matched spool/housing, commutator, and rotor/stator components; mixing parts or damaging their lapped surfaces can impair operation.

Hydraulic Testing and Workshop References

Hydraulic coverage distinguishes engine-mounted piston and gear pumps from the transmission-mounted gear-pump arrangement. Remote-valve service includes single- and double-spool units, detented-to-non-detented conversion, and detent-regulating-valve testing.

Problem/cause/remedy charts cover engine, fuel, power-reversing transmission, steering, and hydraulic faults. Illustrated references include the 3-Cylinder Engine Lubrication System, Sectional View of Fuel Injection Pump, 4 x 4 Torque Converter Drive Synchromesh Transmission, Sectioned Steering Gear, and Hydraulic System—Schematic—Ford 230A-530A.

Component-specific torque tables, capacities, lubricants, wear limits, electrical test specifications, and pressure/flow data accompany the procedures. Nuday and V.L. Churchill tool tables identify equipment including the 1262 clutch-disc locator, 2028 pressure gauge, and 2755 Hydra-Analyzer.

Tractor separation, axle removal, clutch work, injector testing, and hydraulic pressure testing involve heavy supported assemblies, stored spring loads, and high-pressure fluid. Use the stands, guards, service tools, and test equipment specified for the job.

A Preview of Diesel Piston-Fit Specifications

Piston skirt-to-cylinder clearance: The engine specifications distinguish the diesel 230A, 340A, and 445 at 0.0075–0.0085 in. (0.191–0.216 mm) from the diesel 530A, 540A, and 545 at 0.0080–0.0090 in. (0.203–0.229 mm).

These model-specific fit specifications accompany piston grading, cylinder-bore inspection, and wear-limit information for engine rebuilding.
