Official Factory Service Manual for Yamaha SS440, SS440D, SS440E and SS440H Snowmobile (1980-1985)

Yamaha SS440 Series Snowmobile Factory Service Manual - 1980-1985

This official factory documentation provides high-level technical guidance for the maintenance and structural repair of the Yamaha SS440 series. It incorporates specialized data for high-altitude tuning and long-term chassis preservation to maximize operational uptime. Utilizing the precise fan belt tension preset of 6.5–8.5 kg for new belts prevents premature slippage and cooling failure, which is critical for maintaining engine thermal stability during high-load operation.

Technical Applicability & Serial Ranges

The following model designations and matching identification prefixes are officially supported under this technical scope:

Series SS440 (Standard & D-Variant)

• Yamaha SS440 (1980–1985) | Machine ID Prefix: 8K4
• Yamaha SS440D (1983) | Machine ID Prefix: 8K4

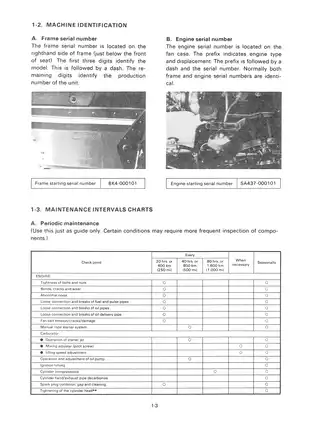

• Starting Frame Serial: 8K4-000101
• Starting Engine Serial: SA437-000101

Series SS440E (Electric Start / Supplemental)

• Yamaha SS440E (1981) | Machine ID Prefix: 8L8
• Starting Frame Serial: 8L8-010101
• Starting Engine Serial: SA437-010101

Series SS440H (Late Generation)

• Yamaha SS440H (1981–1984) | Machine ID Prefix: 8V8
• Starting Frame Serial: 8V8-050101
• Starting Engine Serial: SA437-050101

Resource Utility & Operational Reliability

• Precision calibration charts for high-altitude carburetor jetting ensure optimal air-fuel ratios across varying elevations.
• Dedicated section for "Autolube" oil injection synchronization protects the twin-cylinder engine from lubrication-related seizures.
• Detailed troubleshooting matrices accelerate the diagnostic process for electrical CDI systems and lighting circuits.

Document Metadata

• Print Number: LIT-12116-02-14 (Base) / 8K4-28197-10
• Page Count: 128 Pages
• Format: High-Definition Technical Manual

Technical Depth & Factory Benchmarks

Engine architecture is based on the SA437 axial fan-cooled two-stroke twin featuring torque induction and a 437cc displacement. Internal combustion parameters are set to an effective compression ratio of 6.2:1 with a standard cylinder bore of 66 mm. Precision measurements for the crankshaft deflection are benchmarked at a maximum tolerance of 0.03 mm (Left side) to 0.05 mm (Right side) to mitigate vibration and bearing fatigue.

Visual Navigation Aids & System Schematics

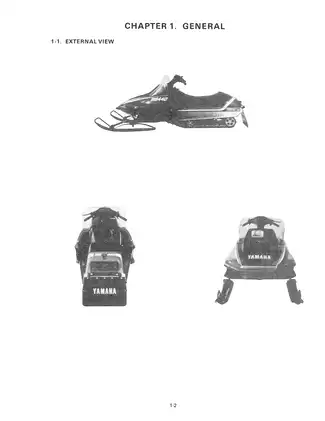

Factory schematics include multi-view external assembly diagrams, comprehensive wiring harnesses for CDI and lighting systems, and specialized "Autolube" piping routes. Power train sections utilize cross-sectional views of the primary and secondary sheaves, emphasizing the correct placement of plate washers for offset adjustment and the 180° to 210° secondary spring twist requirements.

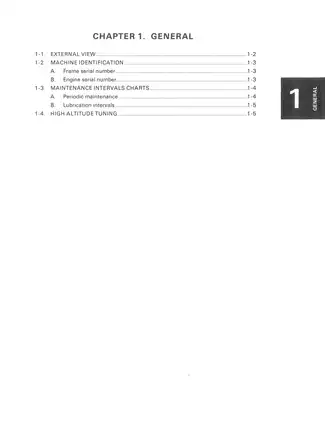

Table of Contents

• Chapter 1: General Information (Identification, Maintenance intervals, High-altitude tuning)
• Chapter 2: Engine System (Disassembly, Inspection, Reassembly, Oil pump, Cooling fan, Magneto)
• Chapter 3: Carburetion (Specifications, Tuning, Overhauling, Reed valve, Fuel pump)
• Chapter 4: Power Train (Sheave adjustment, V-belt, Chain housing, Brake system, Suspension)
• Chapter 5: Chassis (Oil/Fuel tanks, Steering linkage, Skis, Leaf springs)
• Chapter 6: Electrical System (Ignition circuit, CDI unit, Lighting, Voltage regulator)
• Chapter 7: Appendix (Special tools, Detailed specifications, Tightening torques, Wiring diagrams)

Operational Limits & Specifications

Strict adherence to factory torque sequences is required for structural integrity:

• Cylinder Head/Cylinder Nuts: 25 Nm (18 ft-lb)
• Flywheel Magneto (M16): 73 Nm (53 ft-lb)
• Primary Sheave Mounting: Initial 120 Nm (87 ft-lb), final 65 Nm (47 ft-lb)
• Engine Mounting Bolts: 52 Nm (37.6 ft-lb)
• Spark Plug Gap (NGK BR9ES): 0.7–0.8 mm (0.028–0.031 in)
• Chain Housing Fluid: 250 cc (8.5 oz) Gear oil API GL-3 (SAE #75 or #80)
