2004–2006 Harley-Davidson Sportster XL883/XL1200 Service Manual

This service manual covers maintenance, troubleshooting, repair and overhaul for the 2004–2006 Harley-Davidson Sportster XL883 and XL1200 range, including the C, L, and R variants.

The ZIP contains one 462-page PDF, with 14 service chapters, reference pages, an index and wiring diagrams in the same file.

• Engine repair: Cylinder-head, valve-guide and piston service, timing-gear installation, crankcase disassembly, main-bearing replacement and oil-pump overhaul.

• Primary drive and transmission: Clutch inspection and reassembly, primary-chain adjustment, shift-mechanism service, and separate procedures for the two transmission configurations.

• Fuel and emissions: Carburetor overhaul and float adjustment, enrichment-system checks, vacuum-operated fuel-valve testing, and California evaporative-emission system service.

• Electrical diagnosis: DTC retrieval, serial-data troubleshooting, charging-system tests, starter and solenoid service, and turn signal/security module coverage.

• Chassis and brakes: Wheel-bearing replacement, drive-belt adjustment, fork overhaul, steering-head service, swing-arm bearings, caliper and master-cylinder repair, and brake bleeding.

• Service references: Component-specific torque tables, wear limits, fluid specifications, electrical test values, exploded views and wiring schematics.

Written for readers who may be working on the motorcycle for the first time, the manual also identifies jobs that require special tools or a qualified shop.

Engine Top End, Lower End and Maintenance

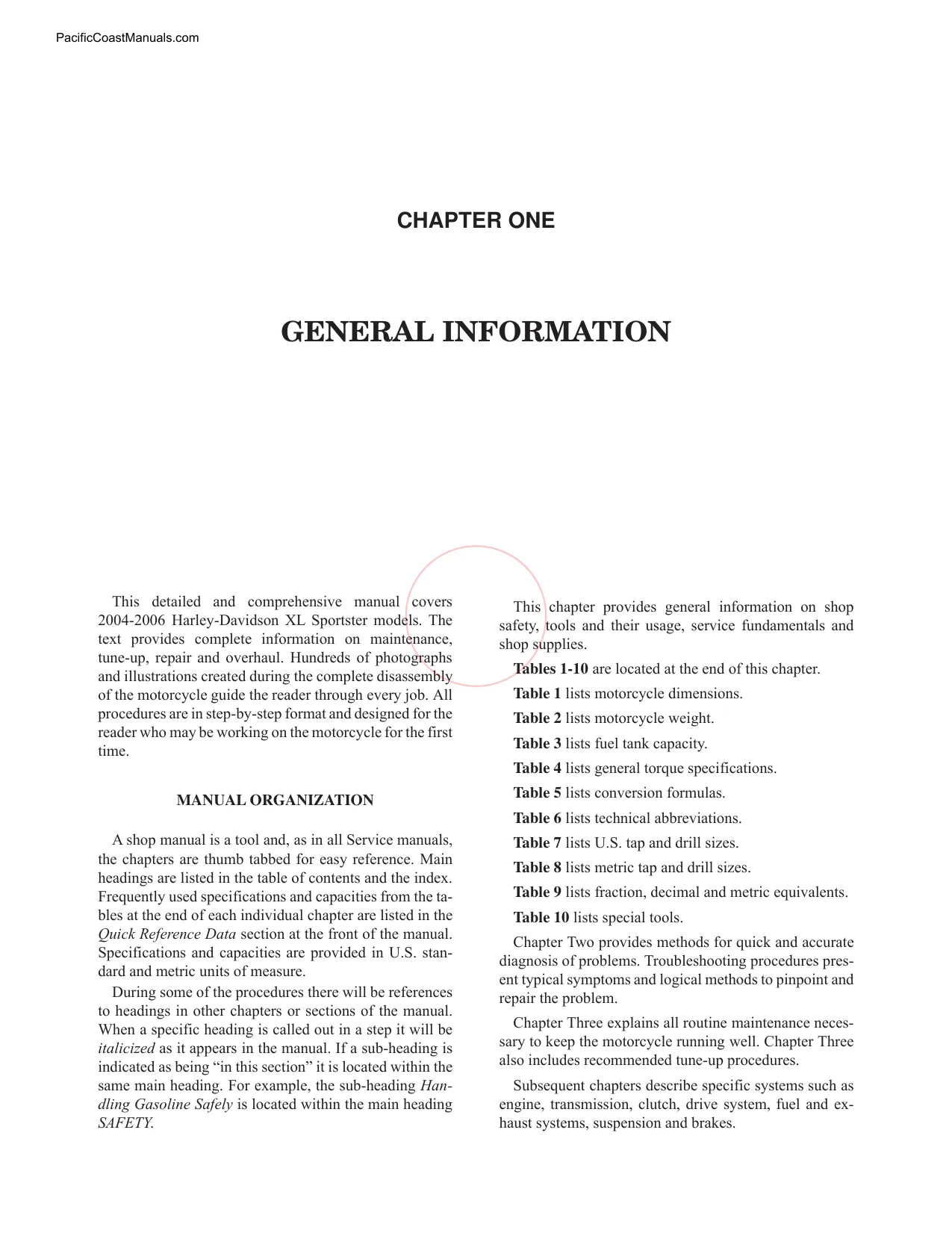

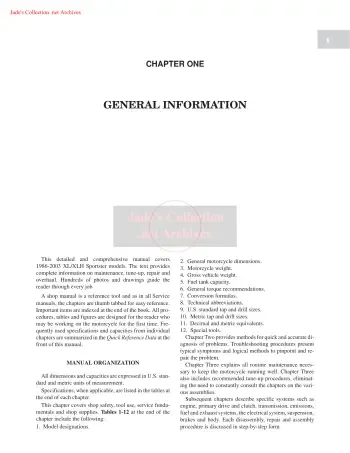

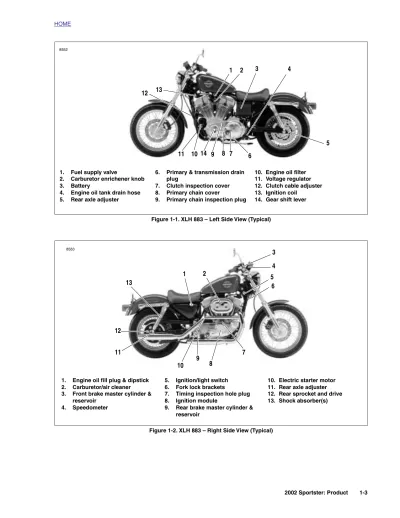

The initial sections establish baseline tool selection and standard measurement practices. Routine maintenance covers lubrication, compression testing and tune-up, with conversion formulas and torque specifications in ft.-lb., in.-lb., and N·m.

Engine coverage extends to rocker-arm bushings, valve seats, piston-pin bushings and crankshaft end-play and runout checks. Cam identification distinguishes D-marked XL883 cams from W-marked XL1200 cams, while the Oil Hose Routing illustration shows the lubrication connections.

The lower-end chapter separates work possible in the frame from jobs requiring engine removal. Specialized crankshaft service is referred to a qualified shop.

Primary Drive, Clutch and Transmission

Separate 2004–2005 and 2006-on sections cover the mainshaft, countershaft, main drive gear and internal shift mechanism. Transmission access requires engine removal and crankcase separation.

The Clutch exploded view accompanies plate-stack, hub and shell inspection. Service precautions identify spring compressor HD-38515A and explain how excessive diaphragm-spring compression can damage the pressure plate.

Lubricant tables distinguish HD Sport Trans Fluid for 2004–2005 from the separate 2006-on transmission-fluid specification.

Carburetor, Emissions and Exhaust

The fuel chapter explains the pilot and main metering circuits, accelerator pump and starting enrichment valve. Its Carburetor Troubleshooting chart links starting, fuel-overflow and running complaints to likely causes.

California-model coverage adds charcoal-canister and vapor-valve service with hose-routing information. Exhaust removal, installation and inspection are also covered.

Electrical Troubleshooting and Wiring Diagrams

The Loss of ICM Serial Data charts address communication faults involving the ignition control module. Their connector references correspond to numbered connections in the wiring diagrams, helping you follow a fault from the test chart to the relevant harness connection.

Some circuit tests require breakout box HD-42682 and adapters HD-46601. The manual identifies H-D Digital Technician as necessary for historic-code handling and new ICM programming. Key-fob assignment and TSSM configuration tables are included.

CKP chart limitation: Printed page 73 is missing, leaving the crankshaft-position-sensor diagnostic flowchart incomplete. A second version of page 72 occupies its place; the continuation on printed page 74 remains.

The wiring section contains Main Harness and Starting and Charging schematics, plus ignition, lighting, instrument and security circuits with connector numbers and wire-color codes.

Suspension, Brakes and Body

Chassis coverage includes laced-wheel truing, steering-bearing adjustment and shock preload. The brake chapter distinguishes single- and dual-disc front master cylinders. Body procedures cover seats, fenders, footrests and the sidestand.

The brake-fluid warnings explain that mixing silicone-based DOT 5 with DOT 3, DOT 4 or DOT 5.1 can damage brake components and cause brake failure. If you lack the tooling or experience for brake service, have a qualified technician perform the work.

File Format and Readability

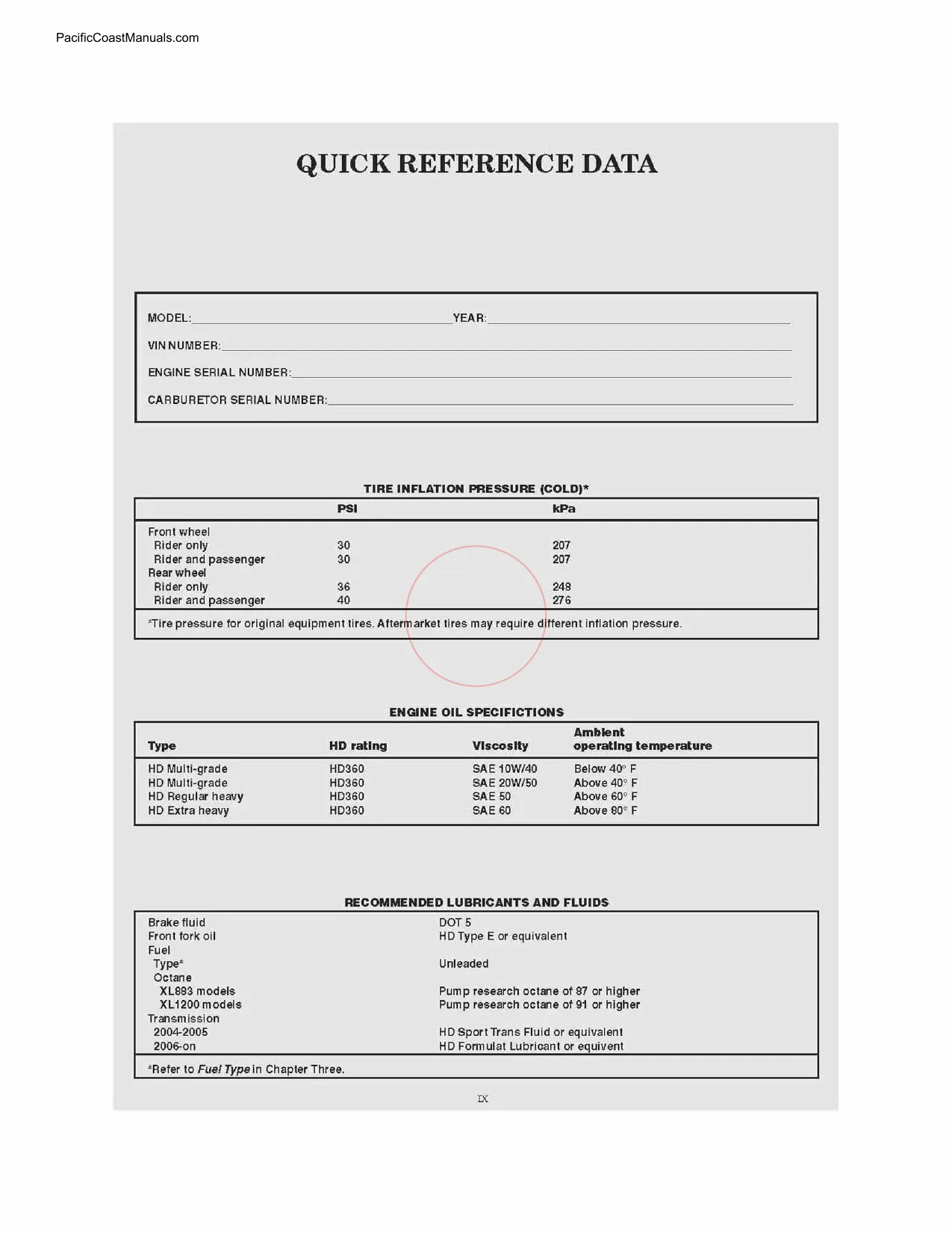

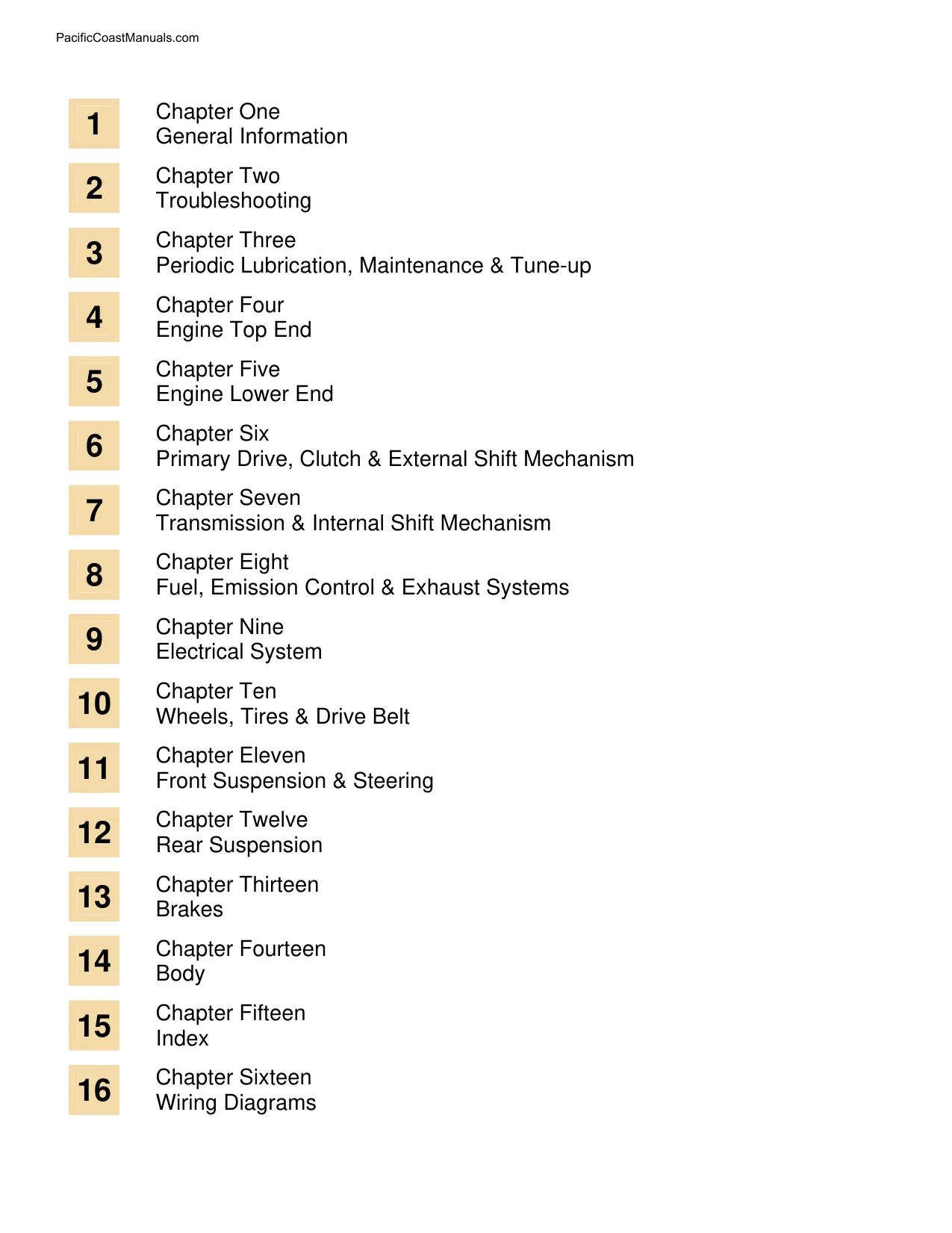

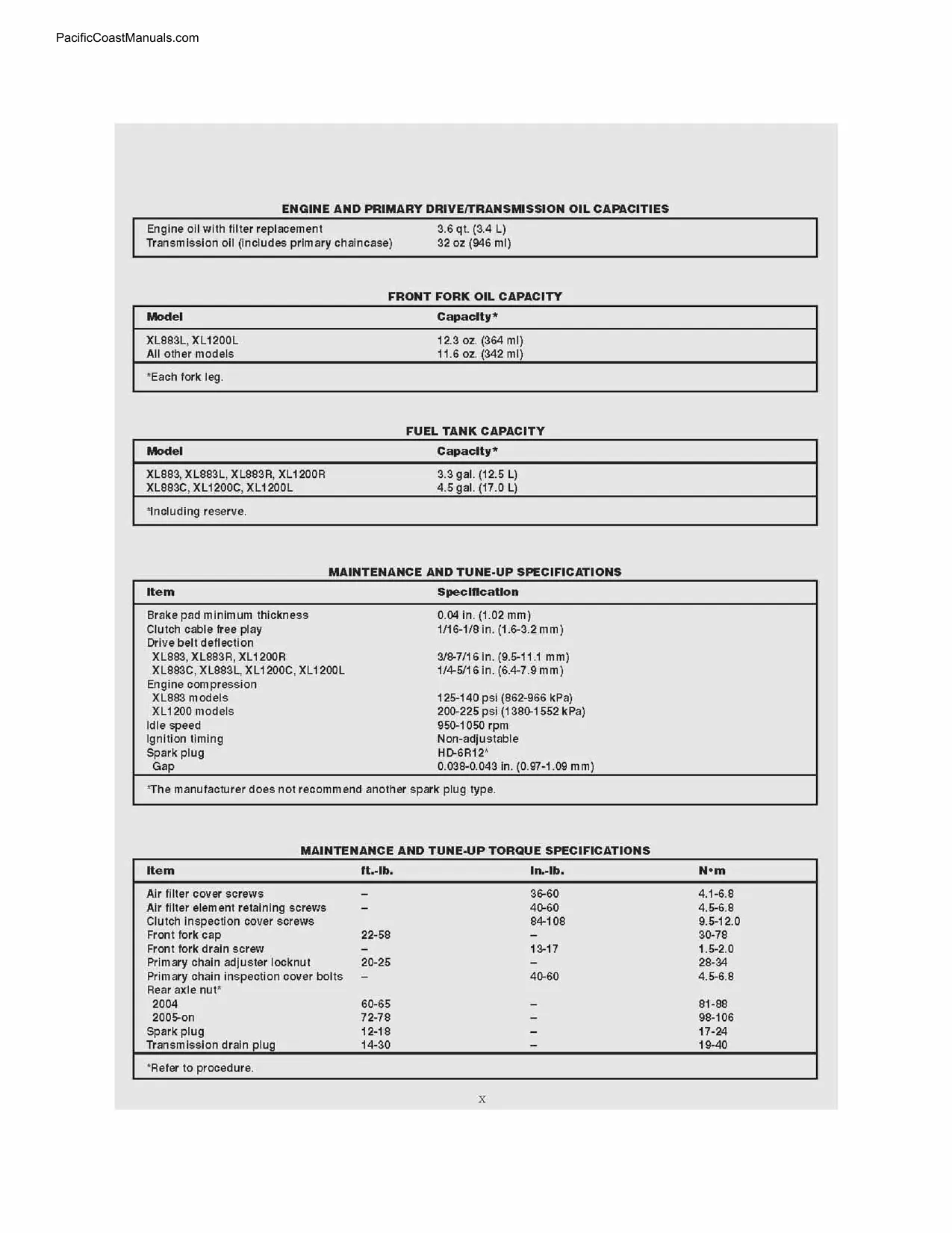

The total comprises 445 service-section pages, including the repeated troubleshooting page, plus a three-page index and nine wiring-diagram pages. Two covers, a one-page chapter locator and two Quick Reference Data pages are also included in the total.

Service text and the index support PDF searches; the Quick Reference Data and wiring diagrams do not have searchable technical text. Nineteen embedded bookmarks link to the chapters and major sections. Small wiring labels require zooming.
