2004-2013 Harley-Davidson XL Sportster XL883 & XL1200 Service Manual

Detailed service manual covering 2004-2013 Harley-Davidson XL883 & XL1200 Sportster models. Addresses engine, drivetrain, suspension, and electrical systems. PN 99427-13

4.5starstarstarstarstar_half(2)

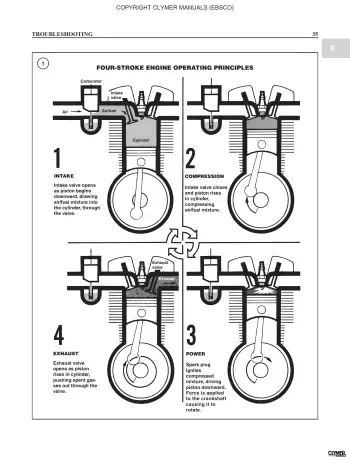

Harley-Davidson Motorbike manual preview - 2004-2013 Harley-Davidson XL Sportster XL883 & XL1200 Service Manual
$19.33 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: Harley-Davidson XL883, Harley-Davidson XL1200
Sub-models / Variants: XL883C, XL883L, XL883R, XL1200C, XL1200L, XL1200R
Trade Names: Sportster
Build Years: 2004–2013
Technical Data:

  • Battery capacity: 12 volt, 12 amp hr.
  • Ignition coil primary resistance: 0.5–0.7 ohms
  • Ignition coil secondary resistance: 5500–7500 ohms
  • Alternator stator coil resistance: 0.2–0.4 ohms
  • Alternator AC voltage output: 19–26 Vac per 1000 rpm
  • Voltage regulator output: 14.3–14.7 VDC at 75° F
  • Starter brush length (minimum): 0.443 in. (11.0 mm)
  • Starter commutator diameter (minimum): 1.141 in. (28.98 mm)
  • Starter commutator runout (maximum): 0.016 in. (0.41 mm)
  • Starter current draw (normal): 160–200 amps
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31876 / Edward King
File Size:
23.74 MB
File Type:
PDF
Language:
English
Pages:
598
Printable:
Yes
Category:
Motorbike
Last updated / verified
Dec 24, 2025

Harley-Davidson Manual Features & Content Preview

Technical Scope and Features

  • Covers 2004–2013 Harley-Davidson XL883 and XL1200 Sportster models, including all sub-variants like Custom, Low, and Roadster
  • Original OEM publication, Chapter 1–2 technical documentation excerpts
  • Contains 67 detailed figures and 10 technical specification reference tables
  • File delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • This official publication serves as the technical reference used for Sportster maintenance, providing the precise specification values required for diagnostic testing and system identification.

Document Content Walkthrough

This 2004–2013 Harley-Davidson XL Sportster technical guide provides data for servicing the entire motorcycle range. The opening chapters document fundamental workshop practices, including shop safety, tool selection, and standard measurement techniques. Subsequent sections detail the troubleshooting methodology for electrical, fuel, and starting systems, featuring flow charts to isolate malfunctions across the engine, charging, and electronic diagnostic systems.

Specification Highlights

Technical data is provided for engine and electrical system components, including starter specifications and fluid capacities. Stator coil resistance is documented at 0.2–0.4 ohms, while ignition coil primary resistance is specified at 0.5–0.7 ohms. The alternator AC output is listed at 19–26 Vac per 1000 rpm, and voltage regulator output is verified at 14.3–14.7 VDC at 75° F. Understanding use this service manual assists in properly interpreting these references during diagnostic procedures. This 598-page OEM publication provides the technical data required to service and maintain the 2004–2013 Harley-Davidson XL883 and XL1200 Sportster motorcycle family.

Document Reference: Chapter One and Two, 2004-2013 edition

Manual FAQ, Purchase & Download Details

What documentation is provided regarding electrical systems, wiring diagrams, and connector references within this manual? keyboard_arrow_down

Chapter listings and content previews indicate the document includes electrical system fundamentals, wiring references, and information on utilizing tools like multimeters for testing. These sections provide the necessary data to understand electrical circuits and connectivity for 2004-2013 XL Sportster models.

Is there information listing fluid capacities and lubrication types for the motorcycle? keyboard_arrow_down

Yes, Chapter One contains specification tables that list fluid capacities and provide guidance on the manufacturer's recommendations for lubricant types, classifications, and viscosities.

Are specific publication cues, edition references, or document revision markers included to help identify this service manual? keyboard_arrow_down

Document is titled as the 2004-2013 Harley-Davidson XL Sportster Service Manual and contains 598 pages of comprehensive coverage. It includes specific chapters and quick reference data tables tailored for the Sportster series within that production year range.

Which chapters or sections feature exploded views, parts illustrations, or component breakdown diagrams? keyboard_arrow_down

Manual contains numerous figures and illustrations, such as those detailing fasteners, tool usage, and component assemblies throughout the various service chapters.
