2007 Harley-Davidson Sportster XL 883, 883C, 883L, 883R, XL 1200C, 1200L, 1200N, 1200R, and XL 50 Service & Electrical Diagnostic Manual Set (P/N 99484-07)

The service manual provides mechanical repair and component replacement procedures. The electrical diagnostic manual supplies the circuit tests and fault charts referenced by the service sections.

The parts catalog and predelivery/setup instructions are separate publications.

Searchable Text, Bookmarks and Wiring Detail

Search and diagram viewing: Searchable PDF text and embedded chapter bookmarks cover both publications. Enlarge the wiring sheets to read small connector numbers, pin labels and wire-color codes.

The ZIP download contains one printable, English-language PDF with 1,007 pages. This total includes all appendices, 25 blank or note pages, and 20 pages containing only repeated wiring-diagram titles.

Evolution Engine Repair, EFI Tests and Chassis Service

These selected coverage highlights summarize the main workshop areas. Further topics include exhaust-system service and optional security-siren maintenance.

• Engine overhaul: Step-by-step engine removal and installation, top- and bottom-end disassembly, cylinder-head repair, piston inspection, cam-gear service and oil-pump work.

• EFI and emissions: Fuel-pump and injector service, induction-module repair, sensor diagnosis, fuel-pressure and intake-leak tests, plus California evaporative-emissions components.

• Primary drive and transmission: Clutch service, secondary-belt replacement, crankcase separation, gearset inspection, main-drive-gear repair and transmission-bearing replacement.

• Scheduled maintenance: Oil and filter service, primary-chain and clutch adjustment, rear-belt checks, bearing inspection, fork-oil replacement and throttle-cable adjustment.

• Chassis and brakes: Wheel lacing and truing, sealed-bearing replacement, fork and steering-stem service, engine isolators, master-cylinder and caliper repair, and hydraulic bleeding.

• Starting and charging: Starter-motor and solenoid repair, bench and current-draw tests, AGM battery checks, and alternator and voltage-regulator diagnosis.

• Electrical and security: Speedometer self-diagnostics, TSM/TSSM/HFSM fault isolation, password learn, connector repair, terminal crimping, wiring diagrams and post-repair DTC checks.

Suited to mechanically qualified owners and technicians with the specified tools and test equipment; several maintenance operations require dealer service unless those qualifications and equipment are available.

Engine Inspection and Internal Repair

Coverage follows the 2007 fuel-injected Evolution platform. Compression and cylinder-leakage tests support mechanical diagnosis, alongside lubrication, oil-pressure and crankcase-breathing checks.

Internal repair material addresses valve guides and seats, piston-to-cylinder fit, connecting-rod bushings, tappets, cam-gear fit, crankcase bearings and oil-pump inspection. Separate new-component specifications and service wear limits distinguish assembly clearances from replacement limits.

Clutch, Gearsets and Crankcase Work

Transmission work extends through mainshaft and countershaft disassembly, shifter inspection, main-drive-gear and case-bearing replacement, reassembly and sprocket service. Internal transmission access requires engine removal and crankcase separation.

The primary-drive instructions identify the transmission mainshaft nut’s left-hand thread. Model and market tables distinguish the applicable engine and final-drive configurations.

Fuel Injection and Diagnostic Requirements

Fuel-system procedures cover the in-tank pump, filter, fuel lines, injectors, induction module and intake manifold. TP, TMAP, IAC, ET and oxygen-sensor sections connect component service with the corresponding electrical diagnosis.

No-start, starts-then-stalls and misfire charts separate fuel-pressure, ignition, power-supply and control-circuit faults. This supports circuit and mechanical checks before replacement parts are selected.

Diagnostic equipment: Fuel-pressure testing specifies the HD-41182 gauge. EFI circuit testing uses the HD-43876 Breakout Box; idle-speed setting requires Digital Technician HD-44750, while ignition timing is ECM-controlled rather than manually adjustable.

Wheels, Brakes and Model Differences

Wheel procedures distinguish 16-, 19- and 21-inch laced-rim arrangements, cast-wheel runout and sealed bearings. Brake repair includes front and rear master cylinders, the remote reservoir, calipers, hoses, lines, pads and discs.

Suspension and control sections address fork tubes, the fork stem and bracket, rear-fork bearings, shock absorbers, handlebars, clutch controls, and mid-mount and forward controls. Shock absorbers are replacement assemblies rather than internally repairable units.

Model-specific equipment: XL 1200N sections cover its rear fender, side-mounted license-plate lamp, rear-lighting converter and short rear-lighting harness. Instrument procedures distinguish single-gauge installations, the XL 1200R dual gauges and XL 883C/XL 1200C speedometers.

Domestic and international wiring applications are identified. Additional material covers the Japanese-market rear-wheel compensating sprocket and Japan/Korea TSM/TSSM security systems.

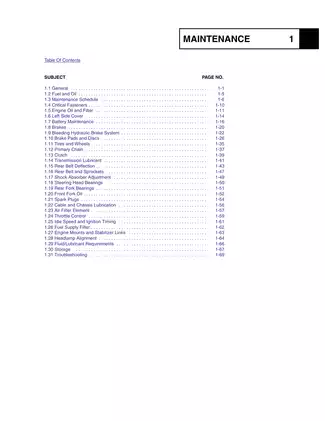

Maintenance chapters also address spark plugs, air-cleaner service, stabilizer links, headlamp alignment, storage preparation and return-to-service checks.

Electrical Fault Tracing and Connector Repair

Diagnostic coverage includes starter voltage checks, serial-data communication faults, sensor and injector DTCs, ignition faults and system-relay testing. Security procedures distinguish TSM, TSSM and HFSM equipment; HFSM fob assignment requires dealer access to Digital Technician.

Named wiring sheets include Main Harness, Indicator Lamps and Controls, Starting and Charging, Engine Management, Lights and Security. Connector tables, pin-and-socket views and diagnostic flowcharts support circuit tracing.

Connector service covers Amp Multilock, Deutsch, Metri-Pack, Packard Micro 64, Packard 100W and Molex systems, including sealed butt splices and cavity identification. Instrument testing specifies the HD-42682 Breakout Box and HD-46601 Instrument Harness Adapters.

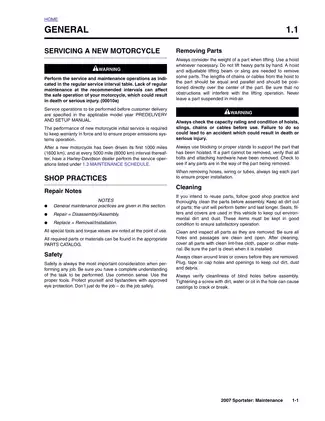

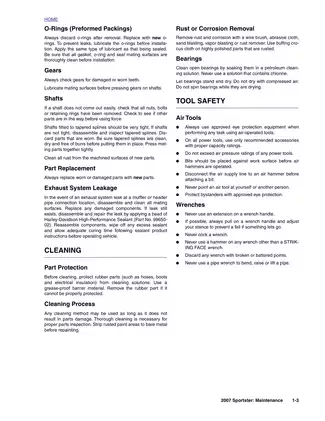

Workshop References and Repair Cautions

Torque tables, lubricant references, clearances and electrical test specifications accompany the procedures. The illustrated tool appendix includes the HD-48030 Fuel Injector Cleaner, HD-46285 Transmission Assembly Fixture and HD-44060-A Wheel Bearing Remover/Installer.

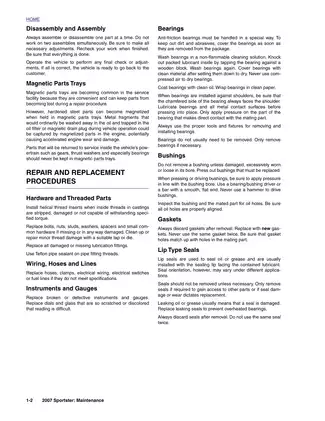

Engine-handling cautions address clutch-cable fitting damage from resting a removed engine on its primary side; shop-practice notes explain accelerated wear from powertrain parts magnetized in storage trays. Primary-drive warnings identify shifter-shaft or crankcase damage from a misplaced sprocket locking link and clutch or transmission failure from incorrect spring-washer orientation.

Pressurized fuel-system work, hydraulic brake repair, supported-motorcycle procedures and final operational checks require the safety practices and service competence specified for those systems.

Examples of Coil and Fuel-Pressure Test Data

The engine-management specifications list ignition-coil primary resistance of 0.3–0.7 ohms and secondary resistance of 1,500–2,400 ohms, both at room temperature.

The fuel-pressure procedure specifies a steady 55–62 psi at idle and while engine speed is varied. Its diagnostic chart distinguishes low-pressure and high-pressure faults.
