2013 Harley-Davidson Sportster Models Service Manual

Comprehensive service and repair guide covering all 2013 Harley-Davidson Sportster models. Includes detailed procedures for maintenance, chassis, engine, fuel, and electrical systems. Part Number: 99484-13.

4.5starstarstarstarstar_half(2)
visibility Preview Available

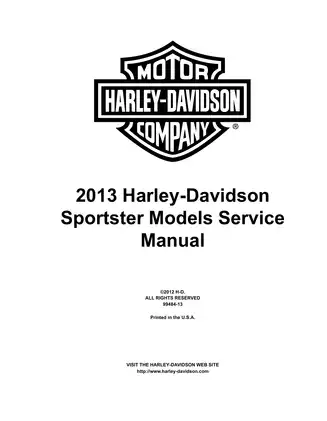

Harley-Davidson 2013 Harley-Davidson Sportster Models Service Manual manual page preview - page 1 of 1124

Sample pages from the 2013 Harley-Davidson Sportster Models Service Manual manual

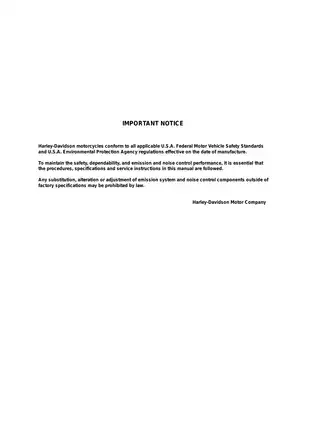

Harley-Davidson 2013 Harley-Davidson Sportster Models Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$19.60 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: SuperLow, Iron 883, 1200 Custom, Forty-Eight, Seventy-Two, XR1200X
Sub-models / Variants: XL 883L, XL 883N, XL 883R, XL 1200C, XL 1200CA, XL 1200CB, XL 1200CP, XL 1200V, XL 1200X, XR 1200X
Build Years: 2013
Technical Data:

  • Engine type: Air-cooled, fuel-injected
  • Engine displacement: 883 cc to 1202 cc
  • Transmission: 5-speed constant mesh
  • Brakes: Hydraulic disc brakes
  • Engine idle speed: 950–1050 rpm
  • Engine oil capacity: 2.8 qt (2.65 L)
  • Spark plug type (XL Models): 6R12
  • Spark plug type (XR 1200X): 10R12X
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31771 / Deborah Peterson
File Size:
54.60 MB
File Type:
PDF
Language:
English
Pages:
1124
Printable:
Yes
Category:
Motorbike
Last updated / verified
Dec 23, 2025

Harley-Davidson Manual Features & Content Preview

2013 Harley-Davidson Sportster Service Manual

  • Covers 2013 Harley-Davidson Sportster models including SuperLow, Iron 883, 1200 Custom, Forty-Eight, Seventy-Two, and XR1200X variants
  • Official Harley-Davidson OEM publication P/N 99484-13
  • Includes 20 detailed fastener torque tables, 28 troubleshooting charts, and over 80 maintenance, diagnostic, and assembly figures
  • Accessible from your device as soon as the order is placed
  • No DRM restrictions on the print function
  • OCR text layer lets you jump to a torque spec by keyword
  • This 2013 factory publication provides the specific settings for the high-performance XR1200X and standard XL platform builds

Manual Content Overview

This 1124-page factory publication documents the mechanical and electrical specifications for the 2013 Harley-Davidson Sportster motorcycle line. The coverage extends from foundational maintenance intervals and fluid change procedures to complex engine, chassis, and transmission service. Major sections define the inspection and assembly of the fuel injection systems, hydraulic braking components, and the unique suspension tuning for the XR1200X.

The maintenance segment details the regular service intervals required for safety and regulatory compliance. It provides the reference data needed to manage tire pressure, drive belt deflection, and clutch free-play adjustments. The troubleshooting chapters categorize common operational symptoms such as engine starting difficulties, electrical system faults, and transmission shifting behavior to assist in identifying root causes.

Specification Highlights

Technical data sections provide comprehensive references for critical assembly points, including torque values in both inch-pounds and foot-pounds. The engine oil capacity is documented at 2.8 qt (2.65 L) for the 2013 Sportster series. Intake manifold and TMAP sensor diagnostics are supported by sensor-specific reference ranges. Spoke nipple torque for laced wheels is specified at 55 in-lbs (6.2 Nm).

Qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. An official 1124-page Harley-Davidson OEM service manual covering the 2013 Sportster line, documenting engine, chassis, electrical, and fuel-injection specifications for the complete model-year range.

Document Reference: 99484-13

Manual FAQ, Purchase & Download Details

Can I find fluid capacity charts and lubricant specifications for the 2013 Sportster models in this document? keyboard_arrow_down

Manual includes dedicated sections for fuel and oil systems that list specifications and lubricant requirements. These reference tables provide technical data for various service points throughout the motorcycle.

Which chapters contain wiring diagrams and connector pinout information for the electrical systems? keyboard_arrow_down

Electrical chapter and Appendix B contain wiring diagrams, harness references, and connector repair details for the covered systems.

What level of coverage is provided for the engine and bottom end components? keyboard_arrow_down

Manual provides comprehensive coverage for engine systems, including sections dedicated to top end disassembly, bottom end service, and lubrication systems. These chapters detail specific component relationships through exploded views and technical reference data. The document serves as a full-scale reference guide for these major sub-assemblies.

Does this manual include references for charging system components and alternator output tests? keyboard_arrow_down

Electrical section contains detailed coverage of the alternator, voltage regulator, and charging system components.

Are there reference tables for fastener torque values and suspension adjustment settings? keyboard_arrow_down

Manual includes multiple fastener torque value tables organized by chapter for easy reference. It also provides specification categories for suspension adjustments such as spring preload and damping settings.
