Harley-Davidson Touring Models Motor Parts & Accessories Technical Manual (P/N 99421-13, 2013 edition)

• 3,045 PDF pages total — 99483-13: 724 pages; 99497-13: 584; 99500-13: 234; 99525-13: 188; 99600-13: 180; 99601-13: 204; 99855-13: 96; the 2013 Genuine Motor Parts & Accessories catalog: 833; plus a two-page contents file.
• Core 2013 Touring repair coverage spans maintenance, wheels and brakes, steering and suspension, engine, fuel/EFI, primary drive and clutch, transmission, electrical equipment, ABS, connector repair, and factory wiring.
• Major mechanical procedures include engine removal and installation, top-end overhaul, cylinder-head and piston service, cam and oil-pump work, crankcase and flywheel repair, transmission disassembly, brake bleeding, fuel-pressure testing, and intake-leak testing.
• Electrical diagnosis covers serial-data and DTC fault isolation, starting and charging systems, instruments, lighting and security, engine management, ABS, Advanced Audio, connector testing, and system-specific wiring.
• Model-specific supplements cover the CVO FLHTCUSE8, FLTRXSE2 and FLHRSE5, FLHTCUTG Trike, and FLHP/FLHTP Police models, including the applicable 110th Anniversary configurations and the systems unique to those motorcycles.
• The separate 2013 Genuine Motor Parts & Accessories catalog extends fitment coverage beyond Touring to VRSC, Sportster, Dyna, and Softail families, with Screamin’ Eagle performance equipment, controls, audio, lighting, wheels, luggage, docking hardware, and specialty tools.

Harley-Davidson describes these service publications as supporting basic maintenance and repair while also documenting factory-approved major repair methods for professional technicians. In practical terms, the set is best suited to experienced hands-on owners and shop technicians who already understand normal motorcycle service practices; the deeper engine, ABS, and electrical work assumes appropriate tools, test equipment, and the ability to work from factory specifications.

Model and Powertrain Coverage

The 99483-13 Touring Models Service Manual identifies the 2013 FLHR Road King, FLHRC Road King Classic, FLHR Shrine, FLTRX Road Glide Custom, FLTRU Road Glide Ultra, FLHX Street Glide, FLHTK Electra Glide Ultra Limited, FLHTC Electra Glide Classic, and FLHTCU Ultra Classic Electra Glide families. Its VIN tables specifically identify 110th Anniversary versions of the Road King and Electra Glide Ultra Limited.

The supplements add the FLHTCUSE8 CVO Ultra Classic Electra Glide, FLTRXSE2 CVO Road Glide Custom, FLHRSE5 CVO Road King, FLHTCUTG Tri Glide Ultra Classic, and FLHP/FLHTP Police models. Anniversary configurations are specifically identified for FLHTCUSE8, FLTRXSE2, FLHRSE5, and FLHTCUTG. The regular Touring material identifies Twin Cam 103 applications, while the CVO publications add their model-specific Twin Cam 110 repair information.

Repair and Diagnostic Depth

Mechanical coverage runs from sealed wheel bearings, brake systems, forks, steering-head bearings, rear suspension, fairings, saddlebags, and Tour-Pak components into internal engine and drivetrain repair. Engine sections cover cylinder heads, cylinders and pistons, rocker gear, lifters and pushrods, cam components, oil pump, crankcase, flywheel, and connecting rods. Primary drive, clutch, transmission, fuel tank and pump, injectors, throttle-control components, sensors, exhaust, and evaporative-emissions hardware are supported by the applicable torque tables, wear limits, capacities, adjustment data, and test specifications.

The 99497-13 Electrical Diagnostic Manual handles initial diagnostics and serial data, battery/starting/charging faults, instruments, accessories, lighting and security, EFI and engine management, ABS, and audio. Its diagnostic routines were developed on the assumption that Digital Technician II is not available, while the manual still documents HD-48650 Digital Technician II for module communication, diagnosis, and programming. Other factory tool references include the HD-48637 ECM Breakout Box, HD-48642 ABS Breakout Box, HD-47941 crankshaft/camshaft sprocket locking tool, and HD-42325-A camshaft needle-bearing remover/installer.

Useful electrical drawings include ABS and non-ABS Main Harness variants, the Starting Circuit, Front Lighting/Console Harness/ABS, Security Circuit with Anti-Theft Tracking Module, Ultra Radio RF Interconnect, and dedicated Police main/fairing harness diagrams. Connector-repair sections cover Delphi, Deutsch, Molex, and JAE terminal families, while exploded assembly views throughout the service material support chassis, engine, clutch, transmission, and body repair.

CVO, Trike, and Police-Specific Material

Each supplement contains the information unique to its model and is designed to be used with the base Touring service and electrical diagnostic manuals included in this package. The CVO publications add hydraulic-clutch service and bleeding, model-specific engine and chassis repair, and equipment-specific procedures or diagnostics for features such as LED lighting, Advanced Audio, power locks, heated controls or seating, garage-door opener, and XM/iPod functions where fitted.

The Trike supplement adds rear axle and differential work, rear brake service, drive-belt replacement, lateral alignment, park-brake and rear-suspension components, panhard rod service, and reverse-control and reverse-motor testing. The Police supplement covers police-specific maintenance, marker lighting, switchgear, and dedicated FLHP/FLHTP wiring.

Parts and Accessory Documentation

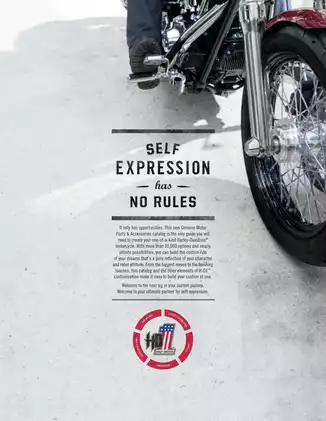

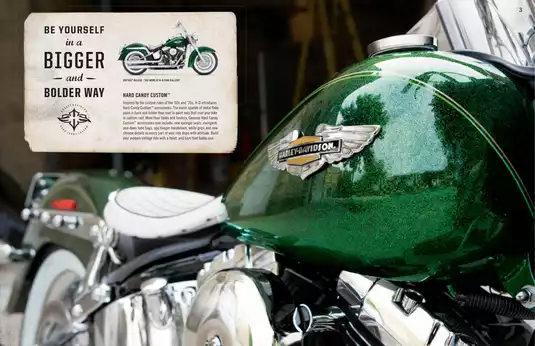

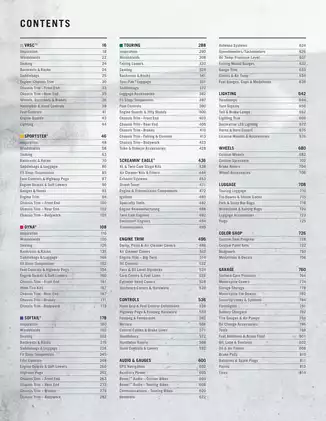

The 833-page 2013 Genuine Motor Parts & Accessories catalog is a fitment and configuration reference rather than a workshop repair manual. It includes listings for Night Rod Special, Fat Bob, SuperLow, and other 2013-family applications, along with Screamin’ Eagle stage kits, air cleaners, exhaust, Street Tuner, engine and transmission components, specialty tools, control-cable and brake-line applications, audio, lighting, wheels, luggage, and docking hardware. Fitment information distinguishes model and year applications and, where relevant, ABS configurations and required installation hardware.

Reference material includes Touring detachable-docking layouts, cam-comparison charts, Daymaker headlamp illustrations, control-cable and brake-line application charts, and Boom! Audio fitment tables. For a 110th Anniversary restoration or period-correct customization, this distinction is useful: the Touring publications supply the service and repair procedures, while the catalog provides the corresponding 2013 accessory and fitment reference.

Two factory cautions illustrate the level of repair-specific detail. The ABS section warns that magnetic tools or parts trays can damage the wheel-speed sensor/encoder-bearing system, while the engine section warns that loading the valve train during rocker-support work can bend pushrods and damage support components.

For safety-critical brake, ABS, fuel-system, chassis, and engine repair, use the applicable factory procedure, required tools, and final inspection checks before returning the motorcycle to the road.
