Honda VT500C Custom (1983) Service Manual (P/N 67MF500)

520 Pages • Printable PDF • 131.96 MB • Download

4.5starstarstarstarstar_half(2)
$17.57 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model & Model Code: VT500C (VT500C D)

Sub-models / Variants: Custom — France (F), Germany (G), Europe (ED), Italy (IT), Switzerland (SW); German Type B; VD6WA carburetor variant (GII)

Trade Names: Shadow

Model Year: 1983


  • Engine: Water-cooled 4-stroke, 52-degree V-twin, OHC

  • Engine Displacement: 490 cc

  • Bore x Stroke: 71 x 62 mm

  • Compression Ratio: 10.5:1

  • Maximum Power: 37 kW (50 PS) at 8,500 min⁻¹; German Type B: 20 kW (27 PS) at 8,500 min⁻¹

  • Transmission: 5-speed with overdrive

  • Idle Speed: 1,100 ± 100 min⁻¹

  • Engine Oil Capacity: 2.5 L (drain), 3.0 L (disassembly)

  • Cylinder Compression: 1,176 ± 196 kPa (171 ± 28 psi)

  • Spark Plug: NGK DPR8EA-9 or ND X24EPR-U9

Honda Manual Features & Selected Content Preview

Honda's factory shop manual covers the 1983 VT500C Custom (Shadow), model code VT500C D, P/N 67MF500. Coverage follows the regional types F, G, ED, IT, and SW; it should not be assumed to cover other VT500 variants or later model years.

PDF Languages, Navigation, and Diagram Detail

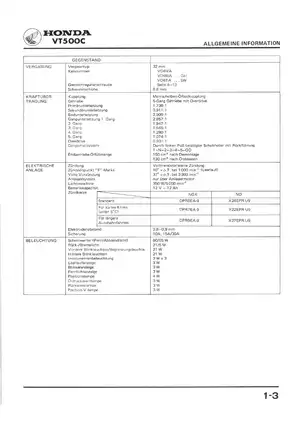

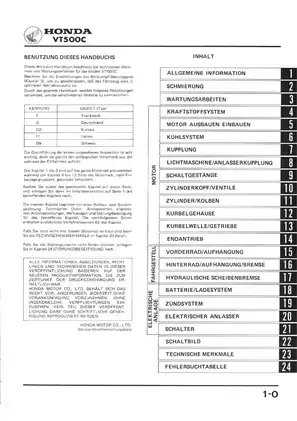

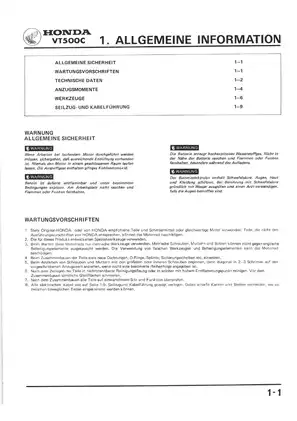

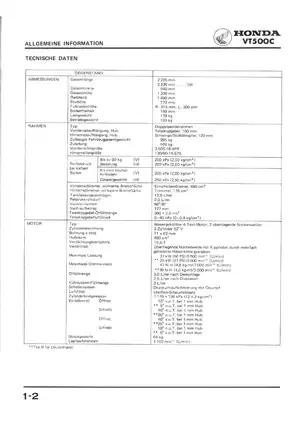

Search and diagram navigation: PDF text search and embedded bookmarks are unavailable. The main wiring sheet is sideways; small labels require rotation and zooming, and some fine lettering remains faint or soft.

One printable PDF contains 520 pages: 518 interior pages plus the original front and back covers, already included in that total. English procedures have French/German companion text, but some introductory specification tables and the closing troubleshooting charts are German-only. The main wiring sheet has German/Spanish labels.


Engine Overhaul, Shaft Drive, and Electrical Diagnosis

These selected workshop topics outline the repair coverage; other examples include clutch-cable adjustment and sidestand inspection in the maintenance chapter.

  • Engine and transmission: Engine removal and installation, cylinder-head and valve repair, cylinder and piston inspection, crankcase separation, crankshaft and connecting-rod service, and gearbox repair.

  • Carburetors: Removal and overhaul, vacuum-diaphragm and float inspection, synchronization, idle-drop adjustment, and installation checks, supported by variant-specific carburetor and jetting data.

  • Lubrication and cooling: Oil-pressure diagnosis and pump-clearance checks; radiator-cap and cooling-system pressure tests, coolant replacement and bleeding, thermostat inspection, and water-pump service.

  • Clutch and shaft drive: Wet-clutch, primary-gear, shift-linkage, alternator, and starter-clutch service, plus driveshaft repair and final-drive shim selection, backlash measurement, and tooth-contact checks.

  • Chassis and brakes: Procedures cover wheel and steering bearings, suspension disassembly, swingarm service, rear-drum inspection, and hydraulic front-brake bleeding and component overhaul.

  • Electrical diagnosis: Charging, ignition, and starting-system tests, a full wiring diagram, connector references, continuity tables, and troubleshooting charts organized by symptoms.

  • Workshop reference data: Torque tables, fluid specifications, standard clearances, wear limits, bearing-selection and preload data, routing views, assembly drawings, and Honda special-tool numbers.

The procedures suit experienced mechanics equipped for precision measurement and press work. Honda's maintenance schedule specifically recommends authorized dealers for wheel and steering-head-bearing service.

Regional Specifications and Crankshaft Design

Carburetor versions: The specifications distinguish VD6VA, VD6WA for GII, and VD6TA for SW. Regional jetting data and separate German Type B output and valve-timing specifications help identify the applicable setup information.

The engine-design chapter explains how the offset dual-pin crankshaft, its 76-degree crankpin offset, and flywheel weighting cancel primary vibration without a separate counterbalancer.

Fuel, Lubrication, and Cooling Components

Carburetor detail: Exploded assemblies accompany vacuum-chamber piston inspection, float and jet service, float-level measurement, pilot-screw handling, and carburetor separation and reassembly. Fuel-tank and air-cleaner-case procedures are also included.

Oil circuit: Coverage extends to strainer and pump removal, relief-valve inspection, pump disassembly, final-drive oil changes, cable lubrication, and the lubrication-point chart.

Cooling components: Radiator and fan-motor work, mechanical-seal checks, and water-pipe service accompany the pressure tests. For pump seal or bearing failure, the procedure specifies water-pump assembly replacement.

Internal Engine Repair and Final-Drive Setup

Cylinder heads: Step-by-step disassembly and reassembly procedures include camshaft-holder and rocker-arm removal, camshaft inspection, valve-guide replacement, valve-seat inspection and refacing, and cam timing.

The assembly cautions address blocked camshaft-holder oil passages and inadequate initial lubrication, which can damage cam and rocker surfaces. Head installation also addresses water-pipe O-ring, head-gasket, and dowel seating to avoid coolant leaks and sealing failures.

Bottom end: Inspection and reassembly instructions cover pistons and rings, transmission shafts and gears, shift forks and drum, bearing-shell selection, and output-gear case components. Engine-removal frame layouts and clutch-stack/primary-gear drawings support the assembly procedures.

Shaft drive: Driveshaft and universal-joint work extends to the final-drive case, pinion and ring-gear assemblies, bearing replacement, and installation. Pinion-setting and tooth-contact diagrams accompany shim-selection procedures; the manual requires setup checks after relevant bearing, gear, or case replacement.

Chassis, Suspension, and Brake Service

Front and rear assemblies: Procedures address the headlight, instruments, handlebar controls, ignition switch, fuse box, front wheel, fork, and steering stem. Fork internal views accompany the front-end work; rear coverage includes the wheel, brake panel, shocks, and swingarm.

Hydraulic brakes: Fluid replacement, pad and disc inspection, master-cylinder disassembly, caliper piston and seal service, and post-assembly checks supplement the bleeding procedures.

Tubeless-tire repair is referred to a separate Honda Tubeless Tire Manual, which is not included here.

Electrical Tests and Fault Isolation

Separate charging, ignition, and starting chapters help a technician distinguish no-charge, no-spark, and no-crank faults. Tests cover the battery and regulator/rectifier, ignition coils and pulse generator, starter motor, magnetic switch/solenoid, and clutch diode.

Circuits and switches: Wiring sheet 0030Z-MF5-6100, cable-and-harness routing views, wire-color codes, and connector references support circuit tracing. Continuity procedures cover switches and temperature components.

The closing fault charts address hard starting, poor low- or high-speed running, lack of power, and poor handling, tracing possible fuel, ignition, compression, and chassis causes.

Honda Tools and Workshop Precautions

The tool index and procedures identify vacuum gauge 07404-0020000 and float-level gauge 07401-0010000 for carburetor work.

Other specified equipment includes flywheel holder 07925-ME90000, clutch-center holder 07923-KE10000, and piston-ring compressor 07954-2830000.

Fuel service involves flammable gasoline; cooling work involves hot, pressurized coolant. Engine removal needs secure support for both engine and motorcycle. Brake, steering, and final-drive repairs require experienced verification if the completed work cannot be checked confidently.

Selected Oil-Pump Clearances and Thermostat Test Data

The oil-pump inspection specifies rotor-tip clearance of 0.15 mm as standard, with a 0.20 mm service limit.

Thermostat data gives an opening range of 80–84°C and at least 8 mm valve lift after heating at 95°C for five minutes.
