2006 Yamaha TT-R50E/TT-R50EV Owner's Service Manual (P/N 1P6-F8199-80)

Yamaha's 2006 TT-R50E/TT-R50EV Owner's Service Manual, publication 1P6-F8199-80, covers TT-R50EV models for the USA, Canada, Australia, and New Zealand, and TT-R50E models for Europe and South Africa. Model codes are 1P61 (USA), 1P62 (Canada), and 1P63 (Europe, Australia, New Zealand, South Africa).

Text search and diagram navigation: The manual text is searchable, with bookmarks for all six chapters and the wiring diagram. The cover has no searchable text. Small wiring labels are clear when enlarged.

• Engine repair: Engine removal, cylinder-head and valve work, camshaft and rocker-arm inspection, piston checks, crankcase separation, and oil-pump service.

• Clutch and transmission: Clutch-plate inspection, free-play adjustment, primary driven gear service, shift-fork and shift-cam assembly, and transmission operation checks.

• Mikuni VM11 carburetor: Disassembly, jet and needle-valve inspection, float-height and fuel-level adjustment, plus throttle-cable and speed-limiter adjustment.

• Brakes and suspension: Drum-brake repair, wheel-bearing replacement, steering-head inspection, front-suspension removal, and swingarm and rear-shock removal.

• Electrical diagnosis: CDI ignition, electric-starting and charging-system inspection charts, starter-motor overhaul, and carburetor-heater and thermo-switch testing.

The repair sections are written for mechanics; the maintenance chart also identifies work requiring special tools, service data, and technical skills.

Engine Repair and Maintenance

The air-cooled SOHC four-stroke sections cover valve-seat lapping, valve-stem/guide measurements, and piston-to-cylinder wear checks. Crankshaft runout, connecting-rod clearances, and trochoid oil-pump rotor clearances have their own inspection specifications.

Exploded views and job instruction charts identify parts and the extent of removal for each job. Clutch illustrations distinguish the silver and brown plates, while transmission assembly notes identify shift-fork markings and checks for smooth operation of the constant-mesh three-speed gearbox.

Camshaft installation notes warn that moving the crankshaft during assembly can cause engine damage or incorrect valve timing.

Carburetor Service and Routine Adjustments

The Mikuni section provides separate float-height and fuel-level measurement views, along with throttle-valve, needle-valve, and fuel-filter inspection. It identifies fuel-level gauge YM-01312-A / 90890-01312 for the fuel-level check.

Maintenance schedules cover fuel hoses, the air filter, and drive chain. Adjustment sections address intake and exhaust valve clearance, drive-chain slack, and steering-head bearings; spark-arrester cleaning is specifically identified for U.S. models.

Fluid-capacity tables distinguish routine engine-oil changes from total capacity. Engine and chassis torque tables, wear limits, and lubrication points for control cables, pivot shafts, and brake components provide the related service specifications.

Drum Brakes, Steering, and Monocross Suspension

Chassis coverage addresses the steel tube backbone frame, front and rear drum brakes, wheel bearings, and Monocross rear suspension. Steering-bearing removal and front-fork inner-tube assembly removal are documented, but internal fork-leg and rear-shock rebuild procedures are not included.

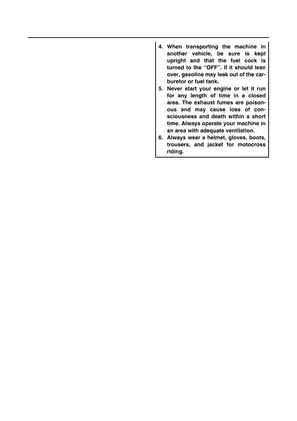

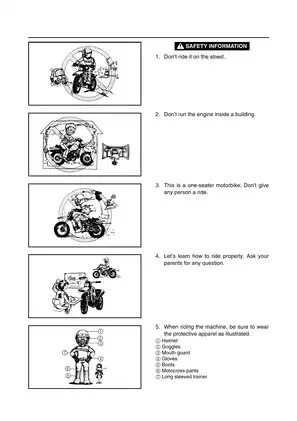

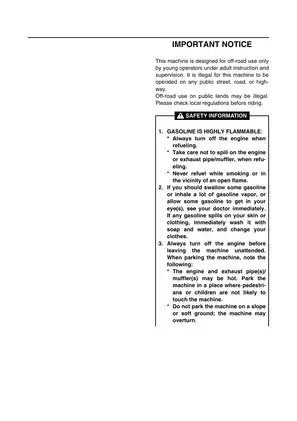

Engine and chassis teardown requires sound mechanical knowledge and proper workshop precautions, particularly when supporting the machine or working around fuel.

Electrical Troubleshooting and Wiring References

The Wiring Diagram identifies component locations, wire colors, and connector layouts for the electric-start configuration. Separate Ignition System and Electric Starting System inspection charts help distinguish no-spark faults from no-crank faults before parts replacement.

Charging-system diagnosis covers the AC magneto and rectifier/regulator. Carburetor Heating System tests address the thermo switch, heater, and lighting coil.

Starter-motor repair includes commutator, brush, and spring inspection, plus armature resistance and insulation tests. Reference tables identify the CDI unit and provide electrical test specifications for the pickup coil, ignition coil, and starter relay.

MF battery charging charts explain how high-rate charging can overheat the battery and damage its plates.

Two cable-routing layouts show harness attachment details and sectional views. Printed page 2-17 is missing, leaving the opening cable-routing key incomplete; the section begins at page 2-18.

PDF Contents and Included Pages

The file is a single, printable 181-page PDF, primarily in English. That total includes one cover page, five memo pages, one maintenance-record page, and one additional German version of the electric-starting inspection chart (printed page 6-6).
