John Deere 310SG, 315SG, 310G, 410G & 710G Backhoe Loader 2000–2011 Operation and Tests Technical Manual (P/N TM1883)

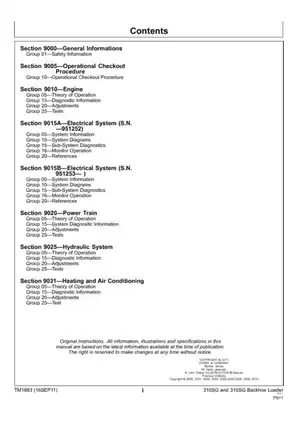

• John Deere TM1883, revision 16SEP11 — a 1,243-page PDF for 310SG and 315SG Backhoe Loaders. This is the factory Operation and Tests volume, not the companion repair manual; full disassembly and component overhaul require the separately referenced TM1884 and component technical manuals.
• Serial-specific electrical coverage is divided at S.N. -951252 / 951253-. Additional early/late procedures mark changes at S.N. -910055 / 910056- for engine speed control, S.N. -911132 / 911133- for ride control, S.N. -943225 / 943226- for system relief valves, and S.N. -926435 / 926436- for A/C pressure switches.
• The 43-page operational checkout covers monitor and alarm functions, FNR and neutral-start logic, reverse warning, brakes, steering, transmission response, MFWD, ride control, loader and backhoe cycle checks, function drift, 315SG sideshift and boom locks, cab accessories, and pilot controls.
• Electrical diagnosis is supported by system functional schematics, fuse and relay tables, cab/ROPS and engine/transmission harness locations, monitor/MDU diagnostics, ECU trouble codes, sensor and throttle-position tests, solenoid checks, and connector repair information.
• Both manual-shift and power-shift power trains are covered, including torque-converter and clutch operation, transmission control circuits, modulation, differential and MFWD, the MICO power-boost brake valve, brake bleeding and adjustment, transmission-oil warm-up, stall-speed and clutch-pressure tests, solenoid leakage checks, and transmission-pump flow testing.
• Hydraulic sections trace the open-center system through the main and auxiliary pumps, unloading and priority valves, loader/backhoe/stabilizer valve sections, ride control, attachment coupler, pilot and pattern-select controls, return-to-dig and self-leveling adjustments, hydraulic-oil warm-up, relief-pressure and pump-flow tests, steering leakage, cylinder drift, and cycle-time checks.
• Engine and HVAC testing covers visual diagnosis, idle and linkage adjustment, intake leakage, radiator airflow, turbocharger boost, injection-pump timing, fuel-line leakage, plus R134a recovery, recycling, charging, evacuation, flushing, leak testing, and electrical checks for the blower, freeze control, pressure switches, and compressor clutch.

Operational Checkout and Diagnostic Walkthrough

The checkout sequence is built for machine-level fault isolation before parts are removed. Checks are arranged in order and use a consistent result format; a failed check points the technician to the applicable diagnostic chart, schematic, adjustment, test, or repair reference. Configuration-dependent checks are separated for optional MFWD, ride control, pilot controls, the attachment coupler, cab equipment, and the 315SG sideshift arrangement, helping prevent the wrong test path from being applied to a different machine build.

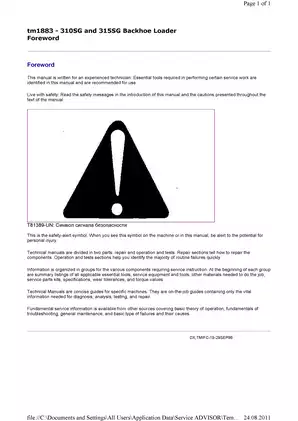

Safety information is tied to actual workshop hazards: supporting raised equipment, relieving high-pressure hydraulic oil, discharging the ride-control accumulator, disabling pilot controls, isolating electrical power before welding, handling pressurized cooling systems, and servicing R134a equipment. One engine-test warning calls out the starting-aid adapter’s red-dot orientation; installing it incorrectly can damage the machine. The A/C section also treats new, used, and internally flushed compressors as different oil-charge cases so a replacement is not run with the wrong lubricant quantity.

System-Specific Test Data, Schematics, and Service Tools

The specification material is organized around usable shop-floor measurements rather than stand-alone data. It supplies engine-speed and timing references, airflow and boost checks, transmission modulation and clutch-test data, brake travel and leakage limits, steering and hydraulic relief tests, pump-flow standards, loader and backhoe cycle times, cylinder drift and leakage limits, and R134a pressure/temperature diagnostic information. Serial breaks and configuration labels remain with the test procedures, allowing the correct circuit and specification set to be selected for the machine being checked.

Representative illustrations include the System Functional Schematics for the two electrical serial ranges; cab/ROPS and engine/transmission harness component-location views; manual- and power-shift transmission control circuits in neutral, forward, and reverse; 310SG manual-control and pilot-control hydraulic schematics; the separate 315SG hydraulic schematic; and A/C compressor and cab wiring diagrams. Named service equipment includes the JT05801 clamp-on electronic tachometer, JT05800 digital thermometer, JT02156A digital pressure and temperature analyzer, and the JDG777 terminal extraction tool from the JT07195A electrical repair kit, along with dedicated R134a charging, recovery, flushing, and test equipment.

TM1883 is intended for troubleshooting, operational verification, calibration, adjustment, and post-repair testing on 310SG and 315SG machines. It does not replace TM1884 for full component removal, disassembly, overhaul, and repair, or the PowerTech CTMs for internal engine service.
