2002–2004 Honda CR250R Service Manual (P/N 61KZ372)
276 Pages • Printable PDF • 34.94 MB • Download
Honda Models Covered & Key Technical Specifications
Model: CR250R
Model Years: 2002–2004 (2002, 2003, 2004)
-
Engine displacement: 249.3 cm³
-
Engine configuration: Single cylinder, inclined 9° from vertical
-
Bore and stroke: 66.4 x 72.0 mm
-
Compression ratio: 8.5:1
-
Transmission: 5-speed, constant mesh
-
Fuel tank capacity: 7.7 liters (2.0 US gallons)
-
Dry weight: 96.5 kg (213 lbs)
-
Cooling system: Liquid cooled
-
Ignition system: CDI
Honda Manual Features & Selected Content Preview

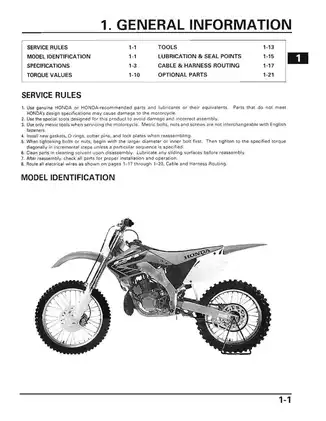

This Honda service manual covers the 2002–2004 CR250R, with factory procedures for maintenance, troubleshooting and mechanical repair. Separate early and later specifications address differences in the fuel system, suspension and ignition setup.

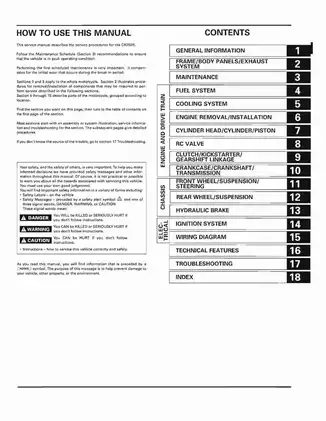

Text Search, Chapter Bookmarks and Wiring Detail
Search and diagram readability: OCR text search is available across the service chapters, but recognition errors can prevent matches, especially in diagram labels. Embedded bookmarks open the main chapters and index. Small wiring labels require enlargement, and some lettering remains soft when zoomed.

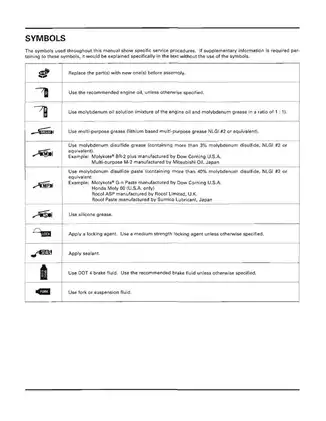

One printable English PDF contains 276 pages total, including one cover page and three introductory pages.
Engine, RC Valve and Suspension Service
These selected service topics preview the repair coverage. Other documented work includes silencer repacking and control-cable maintenance.
-
Engine repair: Engine removal and installation, cylinder-head and piston service, crankcase separation, crankshaft inspection and crankcase-bearing replacement.
-
Fuel system: Carburetor disassembly and assembly, float-level inspection, temperature-and-altitude tuning charts, and configuration-specific reed-valve service.
-
RC valve: Exhaust-valve decarbonizing, flap-valve inspection, servo-motor testing, control-cable adjustment and electrical fault tracing.
-
Clutch and shifting: Clutch inspection and assembly, kickstarter overhaul, gearshift-linkage service, transmission disassembly and internal wear checks.
-
Suspension and steering: Twin-chamber fork rebuilding, rear shock bladder replacement, damper service, steering-head bearings and swingarm-linkage bearing replacement.
-
Hydraulic brakes: Front and rear master-cylinder and caliper rebuilding, brake-fluid replacement, air bleeding, and pad and disc inspection.
-
Electrical troubleshooting: Ignition peak-voltage tests, alternator and pulse-generator checks, ECM circuit diagnosis, ignition-timing inspection and the wiring diagram.

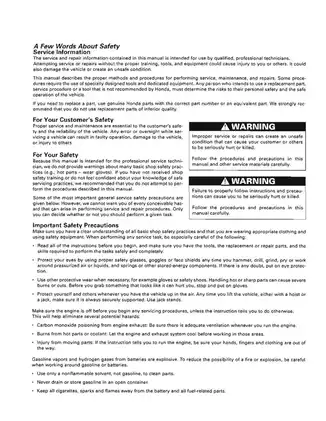

Honda wrote this manual for qualified professional technicians with the training, tools and equipment needed for the procedures.
Top-End and Bottom-End Repair
The top-end section covers piston-to-cylinder clearance, ring-to-groove inspection and cylinder/piston selection using matching A/B size codes. Cylinder-installation cautions explain how rotating the cylinder can snag and break piston rings.
Step-by-step procedures continue through crankcase-bearing replacement, crankshaft installation and transmission reassembly. Gear, bushing, shaft and shift-fork measurements provide the inspection data needed to assess parts during a teardown.
Crankshaft and transmission service requires engine removal and crankcase separation. Cylinder-head, cylinder, piston, clutch and RC valve work is documented with the engine installed.
Carburetor Setup, RC Valve Diagnosis and Cooling
The fuel chapter distinguishes TMX 11B and TMX 11C carburetor configurations, with separate baseline settings and tuning charts. Different reed-valve layouts receive their own disassembly and assembly instructions, helping you match the procedure and setup to the installed components.
RC valve troubleshooting separates restricted flap-valve movement and bent shafts from cable-adjustment, servo-motor and wiring faults. Assembly views identify the flap valves, shaft and pulley, while the electrical checks extend to the ECM connections.
Cooling-system coverage includes radiator-cap and system pressure testing, the coolant specific gravity chart, coolant replacement and air bleeding. Water-pump service extends to shaft inspection and bearing, water-seal and oil-seal replacement.
Forks, Rear Shock and Chassis
Fork service includes damper disassembly, refilling, air bleeding and operation checks. Oil-flow diagrams explain the twin-chamber design. The disassembly cautions identify how incorrect adjuster positioning can damage the damping needles.
Rear shock procedures cover bladder replacement, damper-rod inspection and assembly, with a warning that illustrated valve arrangements may differ from the actual assembly. Steering, wheel, swingarm and shock-linkage sections include bearing replacement and installation details.
Fuel-system and shock service involve flammable fuel and pressurized nitrogen; follow the manual’s precautions for these operations.
Ignition Tests and Fault Isolation
The no-spark diagnostic chart works alongside ignition-coil, pulse-generator and alternator tests. A peak-voltage adapter and meter requirements are identified for the electrical checks.
Cable & Harness Routing drawings, ignition-timing views and the Wiring Diagram support circuit tracing. General troubleshooting charts connect starting trouble, power loss and poor handling with specific checks, helping narrow the affected system before parts are selected.
Selected Fastener, Fluid and Carburetor Specifications
Cylinder-head nuts have a final torque specification of 27 N·m (20 lbf·ft), accompanied by progressive tightening in a crisscross pattern.
Transmission-oil capacity is distinguished as 0.65 liter after draining and 0.70 liter after disassembly. Coolant capacity is likewise separated into 1.08 liters at a change and 1.15 liters after disassembly.
Carburetor float level is specified at 15.0 mm (0.59 in), supported by a measurement illustration and identification of the float-level gauge.
