Audi A3 2003–2010 Repair Manual Set (P/N 4884)

The Haynes volume is the core A3 repair guide, while the supplement adds selected A3/A4 procedures. Match the engine-specific references to the vehicle and engine code before choosing a procedure.

Coverage limits: The main manual excludes 1.4-, 1.8-, and 3.2-liter gasoline models, semi-automatic transmissions, quattro, S3, Cabriolet, and the revised A3 range introduced in April 2008. The two large engine PDFs are A4 references, and the 2009–2010 supplement is not a complete workshop manual for those years.

PDF Search, Bookmarks and Included Pages

Search and circuit detail: All six PDFs support text search; OCR in the Haynes manual and supplement contains recognition errors. The main manual has four coarse bookmarks. The A3 excerpt has partly usable bookmarks, including entries for missing sections; the other four files have none. Small labels in the checked A3 wiring diagrams require zooming.

The ZIP download contains six printable PDFs totaling 1,278 pages. These totals include the Haynes manual’s three title/contents pages and ten notes pages, the supplement’s two contents pages, the A3 excerpt’s four preliminary pages, and one additional end page in the BKH file.

Engine, Drivetrain and Vehicle-System Coverage

The following selected topics show the range of material included rather than reproduce the full contents. Additional subjects include roadside checks and service-interval display resetting.

• Engine repair: Step-by-step instructions for timing-belt and timing-chain work, cylinder-head and camshaft service, oil-pump and balance-shaft work, and engine/transmission removal.

• Fuel and emissions: Gasoline injection components, diesel unit injectors and tandem pumps, turbocharger controls, EGR components, and exhaust-system service.

• Clutch and transmission: Hydraulic clutch bleeding and component replacement, gearbox removal, manual linkage adjustment, and automatic selector-cable adjustment.

• Brakes and running gear: Hydraulic bleeding, caliper overhaul, ABS components, CV joints and boots, wheel bearings, MacPherson front suspension, multilink rear suspension, and electromechanical steering.

• Body and climate systems: Doors, window regulators, trim, bumpers, instrument panel, seats, sunroof, heating, air conditioning, and airbag components.

• A4 engine references: BPG/BWT valvetrain, turbocharger and charge-air work; BKH timing-chain drives, cylinder heads, crankshaft, pistons, lubrication, cooling, and exhaust procedures.

• Electrical diagnosis: Starting and charging systems, ignition, lighting, wipers, central locking, parking aids, fault tracing, and 12 A3 wiring diagrams.

This set is suited to experienced DIY owners and professional technicians who can match the Haynes job ratings to their skills and have the lifting, diagnostic, and VAG/VAS equipment required for engine work.

A3 Engine Work and Fault Finding

The gasoline chapters distinguish SOHC, FSI, and TFSI engines; diesel sections separate the unit-injector engines and their 8- and 16-valve configurations. Overhaul material extends to cylinder-head dismantling, valve inspection, crankshaft and bearing-clearance checks, piston and connecting-rod work, and initial checks after reassembly.

The job-difficulty ratings and symptom-based fault-finding sections help owners plan maintenance and repair work and recognize tasks requiring specialist equipment.

Transmission Service and Chassis Repair

The gearbox chapters concentrate on removal, installation, external controls, and adjustment. They provide general overhaul guidance rather than step-by-step internal gearbox rebuild instructions; detailed automatic-transmission diagnosis is outside the main manual’s scope.

The chassis chapters include clutch master and slave cylinders, brake hydraulic components, steering-column and steering-gear work, and suspension alignment information. Body electrical coverage extends to window controls, lighting, central locking, and parking-aid components.

A4 Engine Procedures, Tools and Repair Cautions

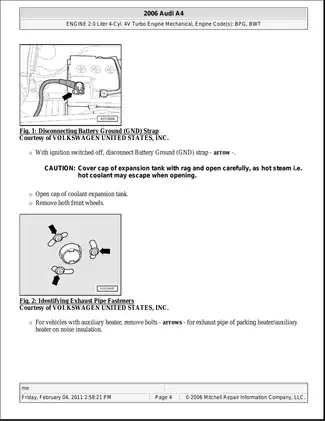

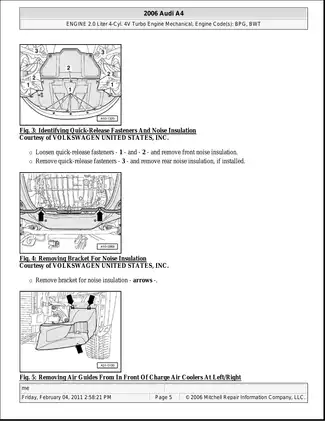

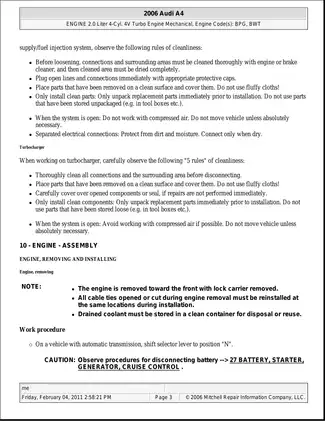

The BPG/BWT reference documents lock-carrier-off engine removal and includes turbocharger component overviews and balance-shaft module illustrations. Equipment references include the VAS 6095 engine/transmission holder, T40039 ignition-coil puller, T10115 locking pin, VAS 5161 valve-cotter service device, and VAS 6213 hand vacuum pump.

The BKH file distinguishes manual- and 09L automatic-transmission engine-removal configurations. It calls out the VAS 6131 scissor-lift table and T40069/T40070 timing fixtures, with camshaft timing-chain views and serial-dependent crankshaft bearing-shell allocations.

The BPG/BWT pages warn that impact-tool use during dual-mass-flywheel bolt removal can damage the flywheel. They also explain how a locked retaining clip during charge-air hose coupling assembly can damage the sealing ring and cause a leak.

Wiring Diagrams and Injection-System References

Representative A3 circuits cover starting/charging and the ignition switch, exterior lighting, and wash/wipe and heated-rear-window systems. The engine references and service supplement together contain more than 1,400 numbered figures.

The A3 injection excerpt contains pressure-safety and cleanliness rules, component-location views, and intake-manifold and fuel-rail exploded views. It ends after the fuel-rail view: later removal, testing, and ignition procedures listed in its contents are not included.

The DTC file maps Audi numeric fault codes to SAE P-codes from P0010 through P1866. It is a code-description cross-reference rather than a fault-isolation manual.

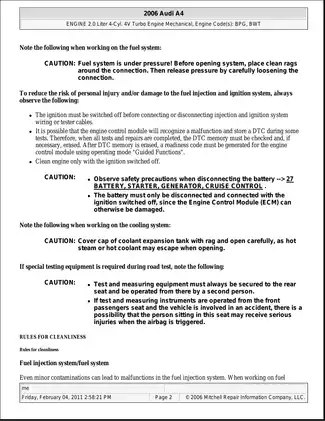

The injection excerpt warns that opening the driver’s door can prime the fuel pump. Work involving pressurized fuel, airbags, brake hydraulics, refrigerant systems, or engine removal must follow the manual’s isolation, pressure-relief, and support precautions.

Oil-Pressure and Idle-Speed Specification Preview

For the A3 2.0-liter gasoline engines, the engine chapter lists oil pressure of 1.2–1.6 bar at idle and 2.7–4.5 bar at 2,000 rpm, both at an oil temperature of 80°C.

For AXX/BPY/BWA direct injection, the excerpt specifies an electronically controlled, nonadjustable idle speed of 640–800 rpm. Its technical-data section also distinguishes the low-pressure fuel supply from mechanically generated high pressure.
