Yamaha XT250 Service Manual Set, 1980–1984 (P/N LIT-11616-XT-04)
327 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Models: XT250
Sub-models / Variants: XT250L (42U), XT250LC (California model, 43E), XT250K (3Y1), XT250KC (20T), XT250J (engine model 3Y1), XT250H, XT250G (model/engine code 3Y1)
Model Years: 1980–1984 (1980, 1981, 1982, 1983, 1984)
Serial Numbers: Starting numbers — XT250L JYA42U00*EA000101, XT250LC JYA43E00*EA000101, XT250K JYA3Y100*DA200101, XT250KC JYA20T00*DA000101, XT250J 3Y1-120101, XT250G 3Y1-000101. * = check digit.
Engine starting numbers: XT250L 42U-000101, XT250LC 43E-000101, XT250K 3Y1-200101, XT250KC 20T-000101.
Transmission: XT250G/J/K/KC: constant-mesh, 5-speed; XT250L/LC: constant-mesh, 6-speed, dog type.
Specifications below: XT250L/XT250LC.
-
Engine oil capacity (periodic change): 1.3 liters (1.14 Imp qt, 1.34 US qt)
-
Compression pressure (Standard): 1,079 kPa (11 kg/cm², 156 psi), at sea level
-
Intake valve clearance (Cold): 0.08–0.12 mm (0.003–0.005 in)
-
Exhaust valve clearance (Cold): 0.13–0.17 mm (0.005–0.007 in)
-
Spark plug: D8EA (NGK) or X24ES-U (NIPPONDENSO)
-
Drive chain tension: 30–40 mm (1.2–1.6 in), with both tires on the ground and the rider seated
-
Front fork oil (per side): 323 cm³ (11.4 Imp oz, 10.9 US oz)
-
Axle nut torque: 105 Nm (10.5 m kg, 75 ft lb), front and rear
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

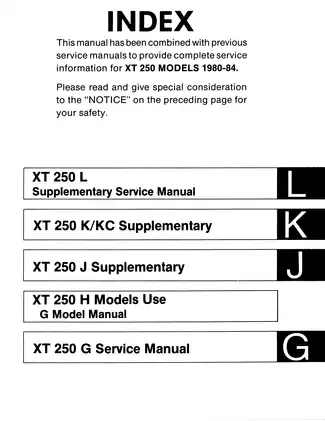

| Combined 1980–1984 edition, P/N LIT-11616-XT-04 — shared front matter; 1st Edition June 1984, 2nd Printing January 1985 | 4 |

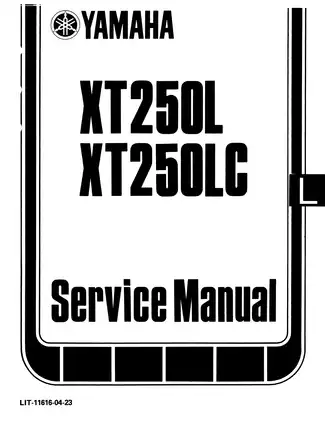

| XT250L/XT250LC Service Manual — P/N LIT-11616-04-23 | 166 |
| XT250K/XT250KC Supplementary Service Manual — P/N LIT-11616-03-58, identifier 20T-28197-10 | 28 |
| XT250J Supplementary Service Manual — P/N LIT-11616-03-01 | 23 |
| XT250G Service Manual — P/N LIT-11616-01-91; also specified for XT250H models | 106 |
Use the J and K/KC supplements with the G base manual, as directed in their forewords. The separate L/LC service section covers the later design; choosing the matching section keeps its repair procedures and settings separate from those for the earlier models.
PDF Access, Bookmarks and Wiring Detail
Search and diagram navigation: PDF text search is unavailable. Embedded bookmarks link to the individual manuals and many chapters and subsections. Dense wiring diagrams require zooming to read small wire codes and connector labels.
The ZIP download contains one printable English PDF with 327 pages. This total includes the four shared preliminary pages and the covers, introductory material and additional pages within each section's listed page count.
Engine Overhaul, Carburetion and Chassis Service
The following selected coverage highlights outline major workshop tasks. Other topics include decompression-cable adjustment and fuel-cock inspection; this is not a complete contents list.
-
Engine repair: Step-by-step removal, disassembly and reassembly procedures, covering the cylinder head, valve gear, piston, crankshaft, balancer and oil pump.
-
Clutch and transmission: Wet-clutch inspection, kick-starter service, transmission-shaft and gear checks, shift-fork inspection and final assembly adjustments.
-
Fuel systems: Mikuni VM28SS and TK Y22PV carburetor service, fuel-level checks, primary/secondary synchronization, coasting-enricher inspection and crankcase ventilation.
-
Wheels and brakes: Wheel-bearing replacement, drum-brake inspection and repair, rim and spoke checks, and drive-chain and sprocket service.
-
Suspension and steering: Front-fork disassembly and seal replacement, steering-head service, swingarm inspection and Monocross rear-suspension work.
-
Electrical diagnosis: CDI and starting-interlock checks, charging and regulator tests, lighting and signal diagnosis, battery and circuit-breaker service, and wiring diagrams.

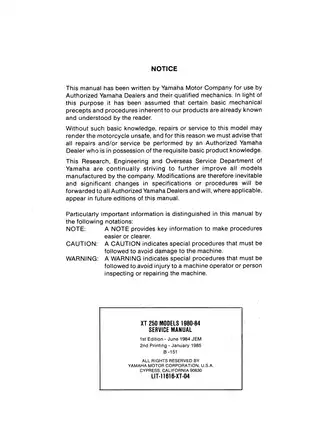

Yamaha wrote these publications for authorized dealers and qualified mechanics, assuming an existing understanding of basic motorcycle repair and the use of appropriate workshop tools and test equipment.
Match the Engine and Fuel-System Generation
The G-based sections cover the air-cooled SOHC engine and Mikuni carburetor. L/LC coverage addresses the later DOHC four-valve engine, staged primary/secondary carburetors, air/oil front fork and New Yamaha Monocross rear suspension. Valve data, cylinder-head torques, carburetor settings and fork capacities differ between these designs.
The VM28SS procedures include carburetor disassembly with its accelerator-pump components. The L/LC primary/secondary carburetor sectional view explains the fuel and air circuits, alongside vacuum-piston and diaphragm inspection procedures.
California-specific material includes L/LC canister hose routing and the K/KC evaporative-control sectional views, with charcoal-canister, roll-over-valve and purge-port checks.
Internal Engine Inspection and Assembly References
Valve-train coverage goes beyond routine clearance checks: valve-guide removal, installation and reaming, seat cutting, spring inspection, L/LC Plastigage checks, adjusting-pad selection and cam-chain timing are documented. Bottom-end procedures address crankcase separation, crankshaft installation, bearing and oil-seal replacement, and lubrication-circuit inspection.
Tool references identify the YU-01135 crankcase separator, YM-01189 flywheel puller, YU-90050 crankshaft installing set and YU-33210 Plastigauge set. Component-specific torque tables, fluid capacities, wear limits, running clearances and carburetor adjustment data support the repair sections.
G-based removal notes flag the flywheel-puller's left-hand thread and the easily damaged magneto-base silicone O-ring. The right-side crankshaft oil seal also has an installation orientation opposite the usual arrangement.
Fork, Swingarm and Rear-Shock Work
The L/LC swingarm assembly chart details the relay arm, connecting rod, bushes, bearings, seals and shims. Fork service identifies the YM-08010 seal/guide-bush installer and warns against scoring the tube during seal removal; a new seal is required at assembly.
Rear-shock coverage addresses removal, inspection, spring-preload adjustment and replacement, rather than rebuilding the pressurized damper internally. The gas-charged shock precautions matter: heat, cylinder damage or tampering with the pressurized unit can create a pressure hazard or impair damping.
Ignition Interlocks and Electrical Fault Tracing
The early sections use 6-volt electrical data; L/LC uses 12-volt data. Model-specific wiring diagrams and cable-routing drawings accompany the J starting-circuit schematic and L/LC charging, lighting and signal circuit diagrams.
The interlock checks distinguish sidestand/neutral-control faults from ignition-component faults before parts are replaced. Electrical references include resistance, voltage and output specifications, plus the YU-33260 and YU-33263 testers.
A Preview of Camshaft and Piston Inspection Clearances
L/LC camshaft inspection specifies a standard camshaft-to-cap clearance of 0.020–0.054 mm and a maximum of 0.150 mm, alongside the Plastigage measurement procedure.
The L/LC piston-inspection section gives a piston clearance of 0.040–0.060 mm. These component-specific figures accompany the cylinder and piston wear checks.
