1986–2002 Honda XLR200R & XR200R Service Manual

This service manual covers the 1986–2002 Honda XLR200R and XR200R, with checking, maintenance, and repair information for the MD29E engine, chassis, and electrical systems.

• Engine repair: Engine removal, cylinder-head and valve disassembly, camshaft installation, cam-chain tensioner service, and cylinder and piston replacement.

• Lubrication and fuel: Oil-pump and filter-rotor service, carburetor disassembly, air-cut valve components, and pilot-screw adjustment using the idle-drop method.

• Clutch and transmission: Clutch removal and assembly, gearshift-linkage service, crankcase separation, and mainshaft and countershaft disassembly.

• Wheels and suspension: Wheel-bearing replacement, fork rebuilding, steering-stem service, and Pro-Link suspension linkage and swingarm bearing replacement.

• Braking system: Front brake-pad replacement, caliper and master-cylinder disassembly, rear drum-brake service, and component-specific inspection limits.

• Electrical diagnosis: Charging, CDI ignition, and starting-system troubleshooting, with system wiring diagrams, starter-motor disassembly, and one-way starter-clutch service.

This manual is intended for readers with basic Honda motorcycle knowledge and practical service skills.

Engine and Transmission Breakdown

Get a clear look inside the MD29E engine. Cylinder-head and piston work requires engine removal, while the clutch, gearshift linkage, and alternator can be serviced with the engine in the frame.

The top-end section details rocker-arm removal, cam-chain tensioner handling, and camshaft alignment. Its cylinder-head sealing notes emphasize keeping the camshaft oil passage clear to prevent oil starvation.

Clutch coverage goes beyond plate and spring limits to explain judder-spring placement, center-locknut retention, and gearshift-linkage assembly checks. The Main Shaft Dismantling and Assembly drawing and corresponding countershaft views identify gear, bushing, washer, and snap-ring positions.

Oil Circulation and Carburetor Service

The Oil Lubrication Flow drawing traces oil delivery to the camshaft, crankshaft, and transmission shafts. Pump coverage includes rotor disassembly and the requirement to replace the pump as an assembly when wear exceeds the specified limits.

Carburetor Disassembly and Assembly identifies the float, jets, throttle slide, and air-cut valve. The pilot-screw section explains when adjustment is required and warns that forcing the screw against its seat can damage the seat. The specialized-tool references include pilot-screw wrench 07908-4730001.

Suspension, Steering, and Brakes

Fork service covers internal disassembly, seal and bushing installation, spring orientation, and reassembly. Rear-suspension procedures address cushion-linkage needle bearings, swingarm pivot bearings, and the associated press tools and installation depths.

The nitrogen-charged rear damper is handled as an assembly. The manual prohibits heating or dismantling the damper unit; the linkage and swingarm procedures should not be mistaken for an internal shock-rebuilding guide.

Front-brake coverage includes caliper and master-cylinder disassembly, with rear-brake instructions for the shoes, cam, panel, and pedal. Brake-fluid replacement and bleeding are referred to the separate Common Manual, which is not included.

Charging, Ignition, and Starting Diagnosis

Charging-system tests cover current leakage, charging output, stator resistance, and regulator/rectifier checks. The ignition section provides peak-voltage testing and timing checks; CDI ignition timing is not adjustable.

The pulse-generator tests compare readings at its own coupler and at the CDI connector, helping distinguish a generator fault from a wiring or connection fault. Starter troubleshooting separates relay, interlock, motor, reduction-gear, and starter-clutch problems.

Main Wire Harness routing drawings, Location of Ignition System Components, and Starting Mechanism Location support component identification and circuit tracing. System wiring diagrams are included, but the separate overall wiring-diagram chapter listed in the contents is absent from this PDF.

Working on motorcycle electrical and fuel systems involves physical risks; familiarity with workshop safety standards is required when using this manual.

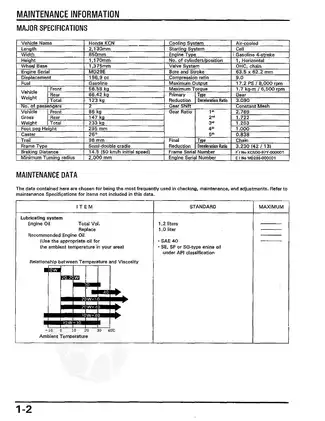

A Sample of Top-End and Lubrication Specifications

These figures are a small sample of the engine checking and assembly data in the manual.

For valve checks with the engine below 35 °C, intake and exhaust clearance is 0.10 ± 0.02 mm. The compression reference is 13.5 kg/cm² at 600 rpm.

Lubrication data distinguishes 1.2 liters total engine-oil capacity from 1.0 liter for an oil change. The oil-filter rotor locknut is specified at 8.5 kg-m with oil applied to the threads.

PDF Search, Diagram Detail, and Included Pages

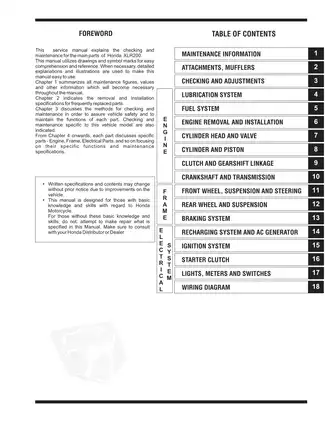

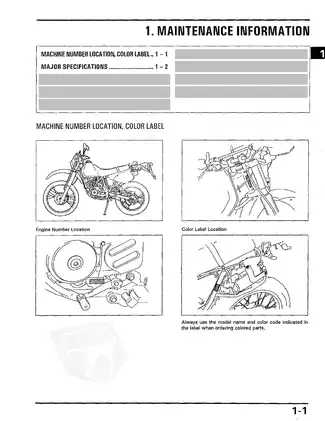

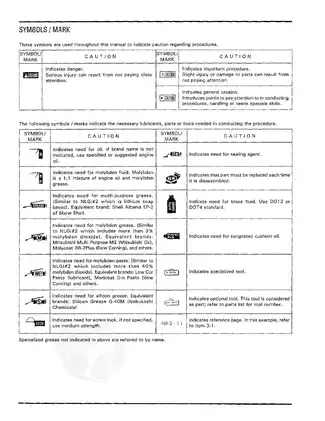

Search and diagram viewing: An OCR text layer supports searches throughout the technical chapters, although recognition errors can affect exact terms. The two embedded bookmarks lead only to the cover and contents page. Small wire-color and connector labels in the system diagrams are best read with zoom.

Delivered as one printable, English-language PDF with 188 pages total, including the cover, two introductory pages, and 16 memo pages. These pages are already included in the total.
