Honda VTX1300R/S Service Manual, 2003–2004

Honda service information dated April 2002, supplied with a cover identifying 2003–2004 VTX1300R and VTX1300S models. The internal introduction identifies the VTX1300S, and the wheel chapters describe spoke-wheel service. The file also contains a July 2002 revision to the engine-oil maintenance page.

PDF Bookmarks and Wiring Detail

Search, navigation, and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the numbered sections and introductory instructions. Small wire-color codes and connector labels in the full wiring diagram require zooming; the checked enlarged details are readable.

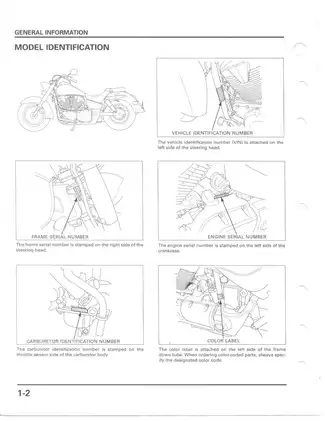

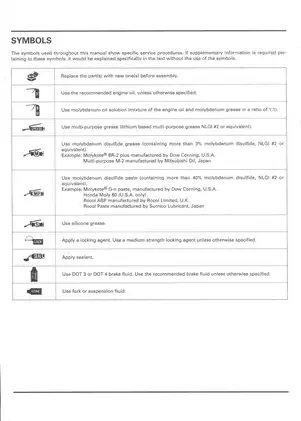

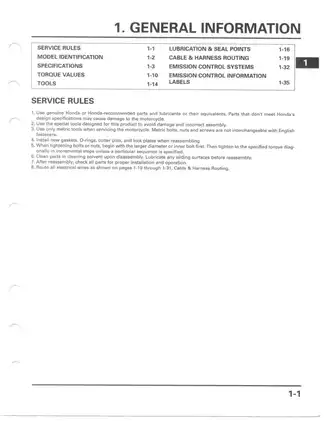

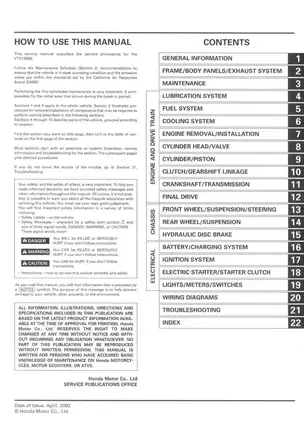

The ZIP download contains one printable English PDF with 350 pages. That total includes the cover, introductory contents page, symbols page, two-page index, and revised maintenance page. There are no separate supplement files.

Engine, Shaft-Drive, and Electrical Service

These selected coverage highlights outline the main repair areas rather than reproduce the complete contents. Other included topics range from the maintenance schedule to speedometer and vehicle-speed-sensor diagnosis.

• Engine repair: Step-by-step engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, piston and cylinder inspection, and cam-timing installation.

• Carburetor and emissions: Carburetor removal, cleaning and reassembly, float-level inspection, pilot-screw adjustment, high-altitude setup, PAIR testing, and California EVAP diagnosis.

• Clutch and transmission: Clutch disassembly, primary-gear service, crankcase separation, crankshaft and connecting-rod inspection, balancer-shaft service, and transmission/output-gear-case repair.

• Shaft final drive: Gear-case removal and disassembly, bearing and seal replacement, gear inspection, shim selection, and reassembly procedures.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, coolant replacement and bleeding, oil-pressure checks, and oil-pump/pressure-relief-valve service.

• Chassis and brakes: Fork-seal replacement, steering-stem and wheel-bearing service, swingarm work, brake-fluid replacement and bleeding, and master-cylinder/caliper overhaul.

• Electrical diagnosis: Charging and ignition tests, starter-circuit troubleshooting, starter-motor overhaul, starter-clutch service, and a full wiring diagram.

Honda wrote this manual for readers who already have basic maintenance knowledge of Honda motorcycles, scooters, or ATVs; internal repair and electrical testing require the specified workshop equipment.

Engine Access and Internal Repair

Top-end coverage includes compression testing, cylinder-head-cover removal, and camshaft and rocker-arm inspection. The bottom-end chapters extend to the constant-mesh five-speed transmission, shift drum and forks, output gear case, and crankcase bearings.

Planning the job: The manual separates work that can be performed with the engine installed from work requiring engine removal. That distinction helps establish the dismantling and lifting requirements before an internal repair begins.

The carburetor, water pump, wet multi-plate clutch and gearshift linkage, alternator, starter motor, and starter clutch can be serviced in the frame. Camshaft, cylinder-head, cylinder/piston, crankshaft, transmission, and output-gear-case work require engine removal.

Engine removal calls for a hoist or equivalent motorcycle support and an adjustable engine support. The handling cautions specifically address the risk of damaging the oil filter by using it to support the engine.

Carburetor and Emissions Configurations

The VE7BA constant-velocity carburetor procedures address the vacuum piston and diaphragm, air cut-off valve, accelerator pump, float chamber, jets, carburetor heater, throttle-position-sensor bracket, and intake manifold.

The float is inspected rather than adjusted; an out-of-specification float requires replacement. Pilot-screw coverage includes the idle-drop method, with separate instructions for high-altitude operation and the return to low-altitude settings.

Emissions equipment: The manual distinguishes 49-state/Canada configurations from California equipment. PAIR secondary-air coverage is supplemented by California EVAP canister, purge-control-valve, and carburetor air-vent-control-valve tests.

Numbered vacuum hoses, test connections, and routing illustrations help keep the two configurations separate when investigating hard starting, afterburn, rich or lean running, and poor driveability.

Cooling and Oil-System Service

Cooling coverage includes radiator and fan removal, reserve-tank service, and water-pump mechanical-seal inspection. Leakage at the pump’s telltale hole is addressed through water-pump replacement.

The lubrication chapter explains the main and scavenging pump circuits and covers pump inspection, assembly, and relief-valve checks. Oil-pump service requires crankcase separation, unlike the in-frame water-pump work.

Final-Drive Setup and Inspection

Beyond bearing and seal replacement, the shaft-drive chapter explains ring-and-pinion contact-pattern assessment, backlash measurement, assembly preload, stop-pin clearance, and the corresponding shim choices. These checks are tied to gear, bearing, or gear-case replacement.

The ring and pinion are replaced as a matched set. A component-specific caution explains that excessive vise clamping can damage the gear-case housing.

Wheels, Suspension, and Hydraulic Brakes

Wheel procedures include spoke inspection, rim runout, wheel-center adjustment, balancing, and driven-flange service. Swingarm coverage extends to pivot bearings, the universal joint, and drive-shaft inspection.

Rear-shock instructions cover removal, inspection, and replacement as an assembly. Brake service includes pad and disc inspection limits alongside the hydraulic repair procedures.

Electrical Tests and Diagnostic Illustrations

Battery load testing is supported by current-leak and charging-voltage checks, alternator-circuit inspection, and regulator/rectifier diagnosis. Ignition coverage adds peak-voltage measurements, ICM connections, and throttle-position-sensor checks.

Starter-system procedures include relay and diode testing plus starter-clutch torque-limiter inspection. Symptom-based troubleshooting charts address starting difficulties, loss of power, poor running, and handling problems.

Illustrated references include the cooling-system layout, charging-system schematic, ICM/TPS ignition circuit, California EVAP vacuum-hose routing, cable-and-harness routing views, and the Section 20 wiring diagram.

Reference Tables and Honda Service Tools

Assembly-specific reference material includes torque tables, fluid capacities, lubricant and sealant applications, wear limits, running clearances, pressure and vacuum tests, and electrical resistance and peak-voltage data. Crankshaft work includes bearing-selection codes and Plastigauge clearance checks.

Engine and fuel-system tools include valve-adjusting wrench 070MA-MEA0100, float-level gauge 07401-0010000, and pilot-screw wrench 07KMA-MS60101.

Drivetrain and chassis listings include clutch-center holder 07JMB-MN50301, pinion-holder plate 07924-ME40010, and steering-stem socket 07916-3710101, with U.S.-market alternatives identified where applicable.

Selected Float-Level and Thermostat Test Data

The carburetor’s specified float level is 18.5 mm (0.73 in), checked with the float valve seated and the float arm just touching it. The accompanying illustration shows the gauge position.

Thermostat test data specify initial opening at 80–84°C (176–183°F) and a minimum valve lift of 8 mm (0.3 in) at 95°C (203°F).
