2008 Harley-Davidson Sportster 883/1200 Factory Service Manual (P/N 99484-08)

Harley-Davidson’s 2008 Sportster Models Service Manual, P/N 99484-08, covers the XL 883 and XL 1200 variants listed above. The factory publication carries a 2007 copyright and describes routine maintenance, mechanical repair, component inspection, and electrical component replacement.

Searchable PDF with Chapter Bookmarks

Text search and diagram detail: Searchable text and embedded bookmarks provide access to chapters, individual procedures, and reference sections. Small connector numbers, pin labels, and wire-color codes in the wiring diagrams are readable when enlarged; dense diagrams require zooming.

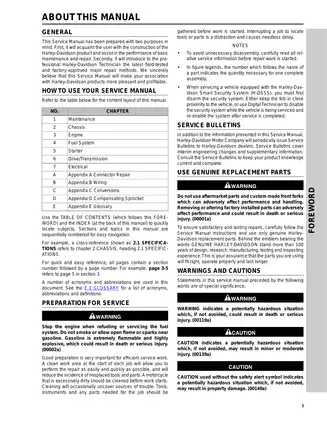

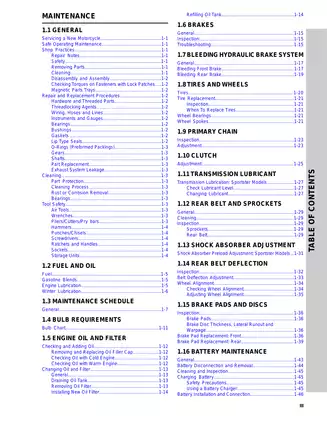

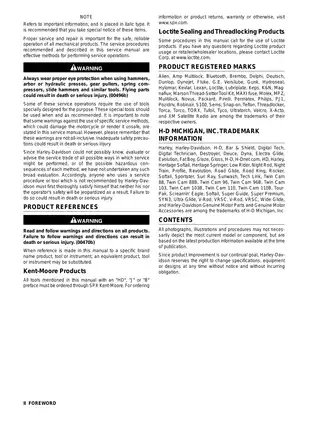

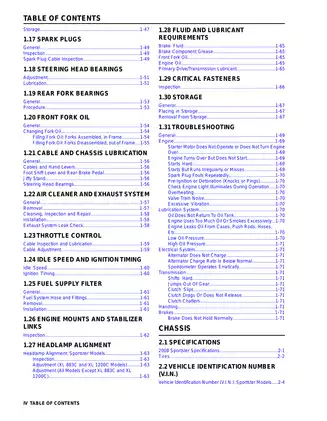

Supplied as one printable, 657-page PDF, including the cover, contents, appendices, and index. The total also includes 20 notes pages, 11 caption-only pages, and two back-cover placeholder pages.

Engine Overhaul, Chassis Service, and Electrical Components

The following selected coverage highlights outline the main workshop topics. Additional sections include California evaporative-emissions equipment and international-model jiffy-stand switch replacement.

• Routine maintenance: Service schedules, oil and filter changes, primary-chain and clutch adjustment, drive-belt inspection, and component-specific torque references.

• Engine repair: Compression and cylinder-leakage tests, engine removal, top- and bottom-end disassembly, cylinder-head repair, cam-gear installation, and oil-pump service.

• Primary drive and transmission: Clutch troubleshooting, clutch-pack inspection, primary-drive replacement, transmission shaft disassembly, gear inspection, and case-bearing replacement.

• Brakes and chassis: Step-by-step procedures for hydraulic brake bleeding, master-cylinder and caliper rebuilding, laced-wheel truing, sealed wheel-bearing replacement, and front-fork rebuilding.

• Fuel system: Fuel-pressure and intake-leak tests, fuel-pump and injector service, induction-module disassembly, and Idle Air Control (IAC) replacement.

• Starter and electrical components: Starter armature and field-coil tests, solenoid service, alternator replacement, lighting repairs, and Electronic Control Module (ECM) removal and installation.

• Wiring and connectors: Main-harness, starting-and-charging, and engine-management diagrams, connector-location references, terminal repair, and sealed-splice procedures.

The manual introduces users to basic maintenance and repair while addressing major repair methods to professional Harley-Davidson technicians; specialist procedures require the specified tools and workshop equipment.

Engine Diagnosis and Rebuild Planning

Whether managing routine service or tackling an engine teardown, the maintenance charts, inspection limits, and assembly instructions provide a common reference for the work. Compression-test interpretation and cylinder-leakage testing help distinguish ring, valve, and head-gasket problems before dismantling the engine.

The engine section separates work possible with the engine in the chassis from repairs requiring removal and crankcase separation. Cylinder-head coverage extends to valve guides, valve seats, rocker-arm bushings, and spring inspection. Lubrication-flow diagrams and cylinder-head bolt tightening sequences support the assembly procedures.

The manual warns that resting a removed engine on its primary side can damage the clutch-cable end fitting. It also identifies the risk of the flywheel assembly falling from the right crankcase half if the engine stand is rotated incorrectly.

Clutch, Transmission, and Chassis Details

Transmission service includes mainshaft and countershaft inspection, shift components, and bearing installation. Access to the internal transmission requires engine removal and crankcase separation, an important distinction when planning the job.

Chassis instructions distinguish mid-mount and forward controls, laced and cast wheels, and model-specific fork arrangements. Steering-head adjustment, rear suspension work, belt-guard removal and installation, and drive-belt wear illustrations are also included.

Appendix D covers the Japanese-market rear-wheel compensating sprocket, including isolator inspection and sprocket-bearing replacement with tool HD-48921.

Fuel-System Tests and Diagnostic Boundaries

Fuel-system procedures cover pump-module disassembly, filter replacement, injector installation, and intake sealing. The pressure-test section identifies gauge HD-41182 and adapter HD-44061. Idle-speed setting requires Digital Technician HD-44750.

Separate diagnostic manual required: Detailed EFI, charging-system, and security-system troubleshooting is referred to the Electrical Diagnostic Manual, which is not included. ECM reprogramming and password-learning instructions are also referred there.

Security Modules, Lighting, and Harness Repair

The electrical chapter covers replacement of the TSM/TSSM/HFSM modules. It distinguishes the Japan/Korea Turn Signal Security Module from the Hands Free Security Module used in other markets; module setup and password learning require the separate diagnostic publication.

XL 1200N lighting coverage distinguishes domestic bulb assemblies and the rear lighting converter module from HDI sealed LED assemblies. Connector repair covers AMP, Deutsch, Molex, and Packard designs, with terminal and housing illustrations.

For brake, pressurized-fuel, and engine-lifting work, follow the complete procedures and safety precautions in the manual.

Examples of Fuel-Test and Fastener Specifications

The fuel-pressure test specifies a steady 55–62 psi (380–425 kPa) while engine speed is varied during the running test. Fuel-pump module mounting screws are specified at 40–45 in-lbs (4.5–5.1 Nm).

For the hand controls, the clutch-lever and front master-cylinder handlebar-clamp screws are specified at 108–132 in-lbs (12.2–14.9 Nm). These are the control clamps, not the upper handlebar mounting clamp.
