1997 Jeep Wrangler Sport SE Sahara, 2.5L & 4.0L Factory Service Manual (P/N 80632206)

• 1,153-page PDF edition of the 1997 Jeep Wrangler TJ factory service manual, covering Sport, SE, and Sahara models with 2.5L and 4.0L MPI gasoline engines.
• Covers the AX5 and AX15 manual transmissions, 30RH and 32RH automatic transmissions, NV231 transfer case, 181 FBI front axle, and 194/216 RBI rear axles, including standard and Trac-Lok differential service where equipped.
• Details engine removal and internal repair, clutch service, manual and automatic transmission overhaul, transfer-case teardown, propeller-shaft and U-joint work, differential setup, brake and ABS service, suspension alignment, and manual or power steering repair.
• Includes system wiring diagrams, connector pin-outs and locations, splice maps, diagnostic charts, exploded assembly illustrations, special-tool callouts, torque tables, fluid-capacity data, wear limits, clearance specifications, and electrical test values.

Manual Contents

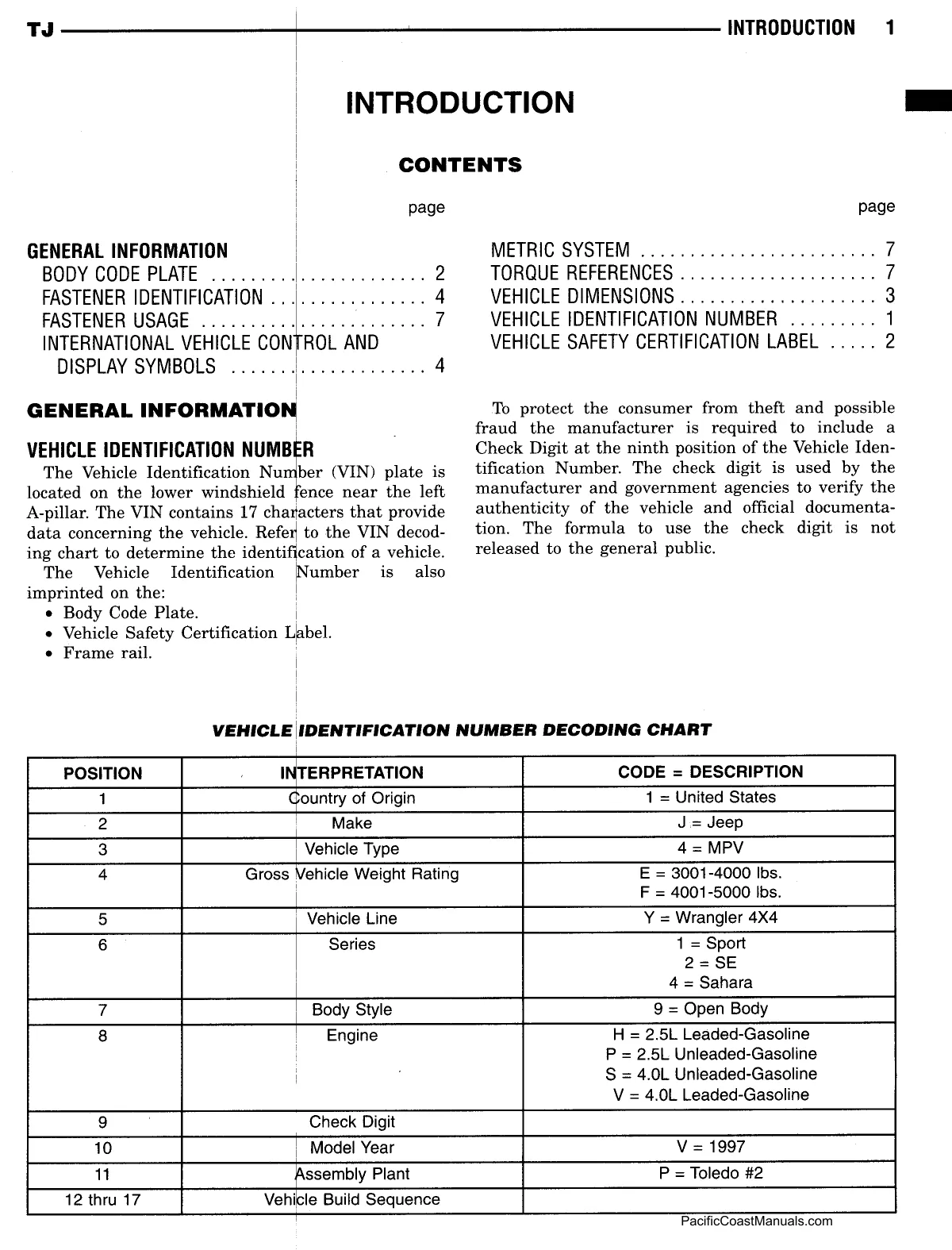

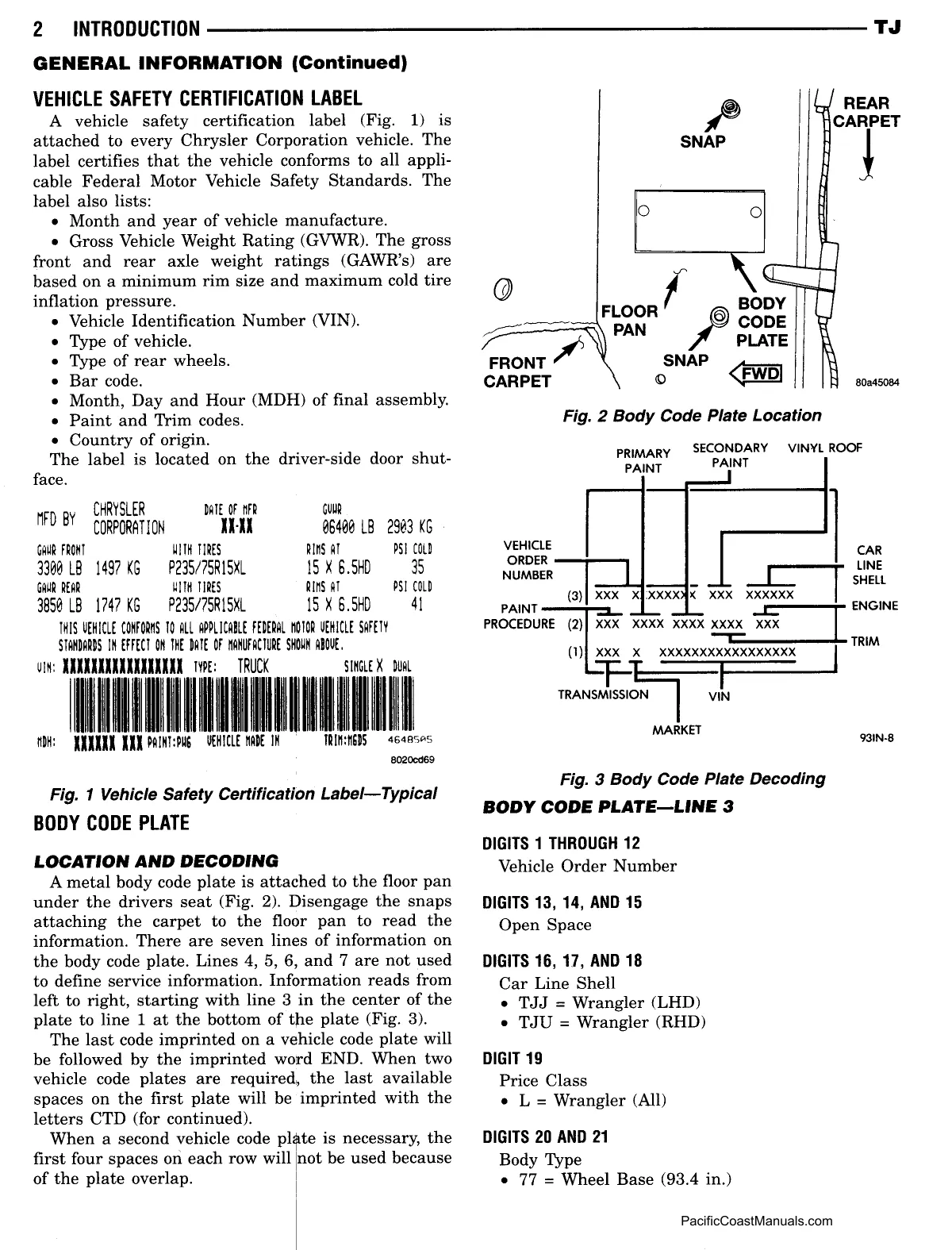

Mechanics, independent repair shops, and experienced DIY owners working on a 1997 TJ need the correct build information before choosing parts or opening an assembly. The identification section decodes the VIN, vehicle certification label, and body code plate, including EPE for the 2.5L engine, ERH for the 4.0L engine, DDQ for the AX5, DDO for the AX15, DGD for the 30RH, and DGG for the 32RH. Fastener identification, metric conversion, Maintenance Schedules A and B, fluid classifications, capacities, hoisting, towing, and jump-starting information are also included.

Separate 2.5L and 4.0L engine chapters go well beyond routine maintenance. They cover compression, intake-manifold leakage, cylinder leakage, oil-pressure, mechanical, performance, and lubrication diagnosis. Internal repair coverage includes engine removal and installation, cylinder-head and valve service, rocker arms, pushrods, hydraulic tappets, timing chain and sprockets, camshaft, crankshaft bearings, pistons and connecting rods, oil pump, seals, and block inspection. Bearing fitting, piston and ring fitting, valve timing, component cleaning, wear inspection, and engine-specific specifications are documented for both powerplants.

The drivetrain sections are equally detailed. AX5 and AX15 coverage includes low-lubricant, hard-shifting, and noise diagnosis; transmission removal; seal replacement; and complete disassembly, inspection, and reassembly of the shift mechanism, geartrain, shafts, synchronizers, and reverse components. The 30RH/32RH chapter adds road testing, hydraulic pressure testing, converter stall testing, clutch and band air tests, leak diagnosis, cooler flushing, valve-body service, front and rear clutch repair, servo and pump work, planetary geartrain service, cable and band adjustments, and hydraulic schematics. NV231 coverage includes diagnosis, removal, speedometer indexing, internal teardown and inspection, oil-pump and chain service, reassembly, and shift-linkage adjustment.

Propeller-shaft material covers vibration and runout diagnosis, operating-angle measurement, and single- and double-Cardan universal joints. The 181 FBI, 194 RBI, and 216 RBI axle chapters address hubs, bearings, shafts, seals, steering knuckles and ball studs, ring-and-pinion service, standard and Trac-Lok differentials, pinion depth, bearing preload, and backlash setup. Chassis coverage extends to front disc and rear drum brakes, hydraulic bleeding, rotor and drum service, parking-brake adjustment, ABS controller and hydraulic-control-unit service, wheel-speed sensors and tone wheels, suspension links and track bars, caster/camber/toe alignment, and both manual and power steering systems.

Cooling-system chapters include pressure and leak testing, draining and filling, thermostat, water-pump, radiator, hose, fan, and viscous-drive service. Fuel-system material covers fuel-pressure diagnosis, pressure release, tank and pump-module service, filter/regulator, rail, injectors, quick-connect fittings, and PCM input/output components. Heating and air-conditioning coverage includes performance and vacuum diagnosis, refrigerant leak detection, recovery, evacuation and charging, plus compressor, clutch, condenser, evaporator, heater-core, blower, control, and housing service. Body sections address hard and soft tops, full and half doors, glass, latches, weatherstrips, seats, restraints, trim, and panel adjustments.

Technical Specification Highlights

Group 8W supplies system-specific electrical schematics for Power Distribution, Ground Distribution, Fuel/Ignition Systems, All-Wheel Anti-Lock Brakes, Air Conditioning/Heater, and Airbag System. It also provides a component index, connector pin-outs, connector locations, splice information, splice locations, wire-code identification, and repair methods for terminals, connectors, diodes, and intermittent or poor connections.

The FSM includes mechanical diagnosis, circuit checks, and component tests. Some complete DRB/scan-tool procedures for powertrain, ABS, airbag, and data-bus faults are assigned to separate Chrysler diagnostic publications, an important scope distinction when buying the manual for electronic fault isolation.

Factory tool references include axle puller/press set C-293-M, pinion-yoke holder 6958, fuel-pressure adapters 6539 and 6631, transmission cooler flusher 6906, and A/C tool kit 6125. Related sections supply assembly-specific torque data, approved fluids, capacities, pressure-test specifications, wear limits, clearances, adjustment data, and electrical test values without reducing the manual to a list of isolated numbers.

Several repair cautions show the depth of the factory procedures. Rubber-bushed suspension arms and track bars should not receive final tightening with the axle hanging, because the resulting preload can affect ride quality and cause premature bushing wear. The axle chapters treat the collapsible pinion spacer as a one-use setup; over-crushing it can damage the bearings and requires replacement. After steering-wheel or column work, an off-center clockspring can fail as the wheel moves through its travel.

This page summarizes the publication's coverage and technical reference material rather than reproducing step-by-step repair instructions. Work involving vehicle lifting, pressurized fuel, cooling, and brake systems, refrigerant, airbag circuits, or heavy drivetrain assemblies requires correctly rated stands and lifting equipment, system depressurization or electrical isolation as applicable, and adequate ventilation.
