1988–2001 Honda SA50, SA50P Elite 50 Scooter Service Manual (P/N 61EK300)

This Honda OEM workshop manual details engine, chassis, electrical, and fuel-system specifications and repair procedures for the 1988–2001 SA50 and SA50P Elite 50 LX, SR, and S 2-stroke scooters. The introductory page carries a January 1994 issue date.

Text search and diagram access: PDF text search and embedded bookmarks are not available. Small wire-color codes and connector labels in the full wiring diagram require zooming.

• Engine repair: Engine removal and installation, cylinder-head and piston inspection, crankcase separation, crankshaft checks, and bearing replacement.

• Fuel system: Carburetor disassembly, auto bystarter testing, reed valve inspection, float-level checks, and high-altitude main jet changes.

• Lubrication: Oil pump inspection, oil-line bleeding, oil strainer service, and SA50 oil-pump control-cable adjustment.

• Automatic transmission: Overhauling the automatic centrifugal clutch, servicing drive and driven pulleys and the kickstarter, and rebuilding the final reduction gear.

• Chassis repair: Frame cover removal, front and rear brake shoe replacement, service of steering head bearings, and shock absorber disassembly.

• Electrical diagnosis: Battery charging tests, alternator inspection, ignition checks, electric starter troubleshooting, wiring diagrams, and switch-continuity charts.

This manual is suited to mechanically qualified readers with the specified service tools and electrical test equipment; its maintenance schedule recommends authorized Honda dealer service for selected tasks.

Cylinder, Piston, and Crankshaft Repair

Cylinder-head, cylinder, and piston service can be performed with the engine in the frame. Crankshaft work requires engine removal and crankcase separation, with procedures for bearing replacement, crankcase assembly, and oil-seal installation.

Technical data lists inspection limits for pistons, cylinder bores, and connecting-rod bearing clearances, along with ring end gaps, cylinder distortion, and crankshaft runout. Early and later versions have separate piston, cylinder, and crankcase specifications, including different crankcase sealing arrangements.

The piston installation notes explain how rings displaced over their locating pins can break and damage the piston and cylinder.

Carburetor and Oil-Injection Service

The fuel system documentation outlines carburetor disassembly, reed valve inspection, and high-altitude main jet replacements for U.S. models. It distinguishes PA31M carburetors from PA35J units for the SA50 and PA35K units for the SA50P, with corresponding jetting and air-screw settings.

Auto bystarter checks cover both electrical resistance and the fuel-enrichment passage. The automatic fuel valve has vacuum-operated flow checks, while float and float-valve inspections address fuel-level faults.

Oil-pump control-cable adjustment applies to the SA50; the SA50P is excluded from that procedure. Pump removal, inspection, and bleeding are covered, but internal oil-pump disassembly is prohibited. The lubrication section warns that trapped air can restrict oil flow and cause severe engine damage.

Pulleys, Clutch, and Final Reduction

Exploded assembly views distinguish the early and later pulley and crankcase-cover layouts. The repair procedures cover drive-belt and roller inspection, clutch shoe replacement, driven-face bearings, guide pins, seals, and kickstarter components.

Final reduction work extends to the driveshaft, countershaft, final gear, transmission bearings, and oil seals. Different shaft and thrust-washer arrangements are identified in the disassembly and assembly procedures.

Tool references include clutch spring compressor 07960-KM10000, its U.S. alternative 07960-KM1000A, and case puller 07935-GK80000. Component-specific torque tables, lubricant specifications, capacities, and wear limits accompany the mechanical sections.

Brakes, Steering, and Suspension

Front brake panel procedures distinguish the two brake assemblies. The chassis sections cover wheel bearings, brake cams and wear indicators, pivot-arm bushings, steering ball races, and front and rear shock springs.

Frame cover instructions show panel tabs and attachment points for access to the service areas. Always observe standard shop safety practices, including the manual's precautions for brake and clutch dust and fuel handling.

Ignition, Charging, and Starting Faults

The ICM connector test chart links wire colors to individual component checks, helping narrow a no-spark fault before replacing the ignition control module. Separate tests address the ignition coil, plug cap, alternator exciter coil, and ignition pulse generator. Ignition timing is checked rather than adjusted.

Electrical schematics show the battery/charging, ignition, and electric starter circuits. Wiring diagrams and harness routing drawings identify connector locations, wire-color codes, switch-continuity tables, and the loom's path around the frame.

Symptom-based troubleshooting charts cover hard starting, low power, poor handling, oil-level indication, fuel-gauge faults, and starter problems. Starter-motor disassembly and assembly are specifically marked for models after 1993.

PDF Contents and Included Pages

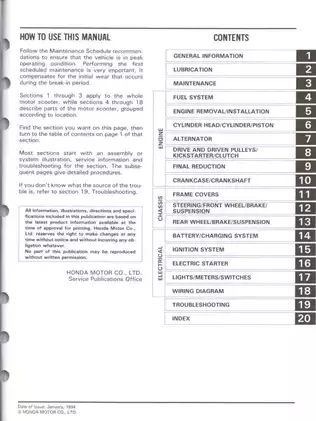

Supplied as one printable, English-language, 162-page PDF, including one cover page, one how-to-use/contents page, and the two-page index. These four pages are already included in the total.
