Honda CB700SC Nighthawk 1984–1986 Service & Repair Manual

This Honda Motor Co., Ltd. factory service manual covers the 1984–1986 Honda CB700SC Nighthawk. The October 1984 issue contains 24 sections for maintenance, diagnosis, and engine and chassis repair.

Chapter Bookmarks and Wiring Diagram Detail

Navigation and small labels: PDF text search is not available. Embedded bookmarks link to the 24 main sections. The full wiring diagram is sideways in the file; rotate the view and zoom in to read small wire-color codes and connector labels.

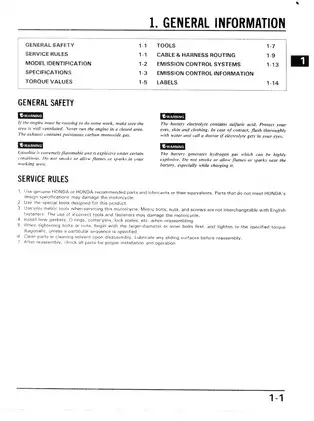

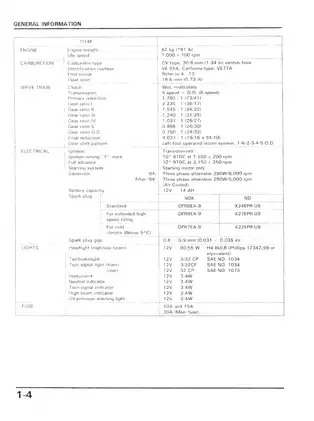

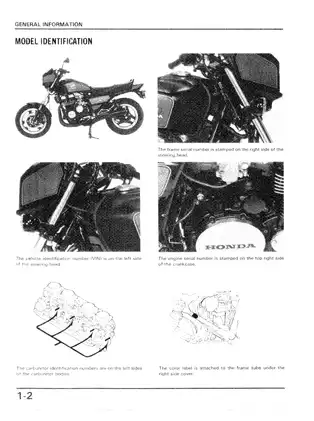

One printable PDF contains 325 pages, including one introductory contents/how-to-use page.

Powertrain, TRAC, and Electrical Repair

These coverage highlights show selected workshop topics. Further subjects include muffler removal and installation and rear-fender service.

• Engine repair: Cylinder-head and valve work, camshaft timing, cylinder and piston inspection, crankcase separation, and crankshaft bearing inspection and selection.

• Fuel system: CV carburetor disassembly, synchronization, pilot-screw adjustment, high-altitude settings, fuel-valve testing, and California evaporative-emission checks.

• Clutch and drivetrain: Hydraulic clutch service, clutch-pack inspection, transmission disassembly, output gear-case adjustment, starter-clutch repair, and shaft final-drive overhaul.

• Lubrication: Oil-pressure testing, oil-pump disassembly and inspection, pressure-relief valve checks, oil-strainer cleaning, and oil-cooler service.

• Suspension and brakes: TRAC anti-dive fork rebuilding, steering and wheel bearings, rear shocks, swing-arm service, front hydraulic brakes, and rear drum brakes.

• Electrical diagnosis: Charging and transistorized ignition tests, starter-motor inspection, switch and instrument checks, wiring schematics, and symptom-based troubleshooting charts.

Suited to mechanics experienced in engine assembly and electrical testing, with access to precision measuring equipment, dedicated service tools, and equipment to support the engine during removal.

Engine Repair and Hydraulic Tappets

The engine sections distinguish work that can be done in the frame from jobs requiring engine removal and crankcase separation. This helps establish the dismantling and equipment requirements before starting a repair.

Step-by-step procedures cover valve-guide replacement, valve-seat inspection and refacing, and camshaft installation. Bearing code tables and Plastigauge checks support selection of replacement main and connecting-rod bearing inserts.

Tappet handling: The hydraulic tappets eliminate manual valve-clearance adjustment. Their service instructions specify bleeder tool 07973-MJ00000 and kerosene priming; cautions address tappet damage from attempted disassembly or bleeding with wire.

CV Carburetors and California Emissions

Vacuum-piston and diaphragm inspection, float-valve checks, and the pilot-screw idle-drop procedure provide detail beyond routine synchronization. High-altitude guidance also explains when those settings must be reversed for lower-altitude operation.

The California section includes purge-control-valve tests and vacuum-hose routing diagrams. During carburetor separation, the manual warns that an incorrect separation direction can damage the fuel and air joint pipes and choke linkage.

Transmission and Shaft Final Drive

The output gear case and final-drive chapters include gear-tooth contact-pattern checks, backlash measurement, and shim or spacer selection. Contact-pattern illustrations connect inspection results with the adjustments for each assembly.

Hydraulic clutch coverage extends to master- and slave-cylinder inspection and bleeding. Separate inspection instructions address clutch discs, plates, springs, and starter-clutch rollers.

TRAC Forks and Brake Service

TRAC section views and the Front Suspension Adjustment Chart explain anti-dive operation under braking. Fork procedures cover bushings and seals, while steering-stem service includes bearing preload checks.

Working on motorcycle powertrain and braking systems requires specific mechanical expertise. Always rely on the complete original manufacturer documentation to ensure safe assembly and testing.

Electrical Tests and Fault Tracing

Charging-system current and output tests, stator and field-coil continuity checks, and regulator/rectifier resistance tables support fault isolation before components are replaced. Ignition diagnosis distinguishes the paired-cylinder circuits; starter-relay, clutch-diode, fuel-sender, and warning-circuit checks address related electrical faults.

The engine lubrication diagram, maintenance schedule charts, cable and harness routing views, and engine-does-not-start troubleshooting chart provide additional references for maintenance planning and tracing faults across systems.

Preview: Oil Pressure, Compression, and Tappet Checks

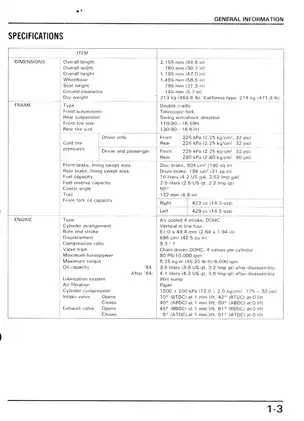

The lubrication section specifies an oil-pressure check of 630 kPa at 6,000 rpm with the oil at 80°C. Cylinder compression testing gives 12 ± 2 kg/cm² for a warm engine with the throttle fully open.

Hydraulic-tappet inspection specifies a compression stroke of 0–0.2 mm after priming and bleeding in kerosene.
