1984–1987 Suzuki LT185, LT185E, LT185F, LT185G, LT185H QuadRunner Service Manual (P/N 99500-41054-01E)

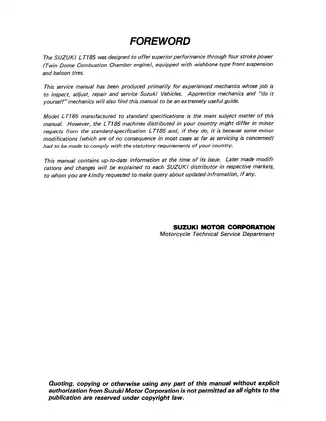

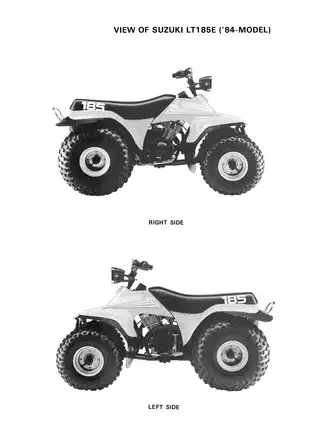

This 250-page PDF reproduces Suzuki's OEM LT185 Service Manual, Part No. 99500-41054-01E, in its fifth edition dated October 1990. It covers the 1984 LT185E, 1984 LT185FE (except U.S. model), 1985 LT185F, 1986 LT185G, and 1987 LT185H. Suzuki states that the manual was produced primarily for experienced mechanics; apprentices and do-it-yourself mechanics can also use it as a guide, although internal engine and transmission repair assumes suitable measuring equipment and the specified service tools. Before beginning related work, follow the manual's warnings for gasoline handling, secure vehicle support, tire inflation, recoil-starter spring tension, and contamination of the brake linings.

• Engine and top-end repair: Covers engine removal and remounting, complete disassembly and reassembly, cylinder-head and valve service, valve-guide replacement, valve-seat cutting, camshaft and timing-chain work, piston and ring inspection, crankshaft service, oil-pump installation, and recoil-starter overhaul.
• Clutch and transmission service: Provides centrifugal-clutch engagement and lock-up tests, clutch teardown and inspection, gear and shift-fork measurement, crankcase splitting, transmission assembly, reverse-system service, gear-position indicator setup, and final shift checks.
• Fuel and electrical diagnosis: Details the Mikuni VM22SS carburetor, vacuum-operated fuel pump, fuel cock, strainers, priming pump, float adjustment, PEI/CDI ignition tests, magneto and ignition-coil checks, lighting output, regulator diagnosis, switch continuity, and model-specific wiring diagrams.
• Chassis procedures: Addresses front wheel and hub bearings, tire and wheel service, double-wishbone steering and suspension, tie rods and toe-in adjustment, drive chain and sprockets, rear drum brake repair, rear axle removal, axle-housing bearings, and dust-seal installation.
• Workshop reference material: Supplies symptom-based troubleshooting charts, exploded assembly views, wire/cable/hose routing, component-specific torque tables, wear limits, clearances, pressure and electrical test data, lubrication information, and a factory special-tool index.

Factory Repair Coverage

The base LT185E chapters cover the 178 cc, air-cooled four-stroke OHC single, its Twin Dome Combustion Chamber, five-forward-speed transmission with reverse, automatic centrifugal wet clutch, and chassis systems. The Twin Dome section goes beyond a nameplate description, comparing combustion-chamber shapes and showing swirl, squish, and intake-flow behavior. Engine testing covers compression and oil pressure, while clutch diagnosis uses separate initial-engagement and lock-up checks before internal parts are condemned.

Routine service is documented through a periodic maintenance schedule and lubrication chart, followed by procedures for the cam-chain tensioner, valve clearance, decompression cable, oil filter and sump screen, idle speed, clutch, brake, drive chain, tires, steering, and critical fasteners. The troubleshooting section sorts symptoms across the engine, transmission, carburetor, fuel pump, electrical system, steering, suspension, and rear brake.

Model-Specific Changes and Serial Breaks

This is one integrated workshop manual. The LT185E section contains the main repair procedures; the FE, F, G, and H sections supply only the data and changes that differ from the preceding base material. The non-U.S. LT185FE section adds carrier information, its own service data, routing layouts, torque specifications, and wiring diagram. The F model introduces adjustable front-spring preload, while the G model changes the forward shift pattern to all-up and revises the transmission construction, gear ratios, shift hardware, and clutch test specifications. The H section documents relocated ignition, engine-stop, and starter controls, along with its own wiring and routing pages.

The appendix identifies three transmission production breaks at engine Nos. 101825, 103176, and 135744. It shows the affected early/late gears and shift forks, states where parts are not interchangeable, and identifies the matched components required when later replacement parts are fitted. It also records that only late-style replacement parts were available when the manual was published. These serial-specific notes matter before ordering transmission parts or mixing early and late assemblies. Carburetor identification is separated as well: the base LT185E data lists ID 24400, while the FE, F, G, and H sections list ID 24401.

Diagrams, Tools, and Service Data

Named technical illustrations include the Twin Dome chamber comparison, valve-timing diagram, transmission cross-sectional and construction views, lubrication-system flow diagram, PEI/CDI ignition schematic, and model-specific wiring and routing layouts. Exploded views cover assemblies such as the clutch, recoil starter, steering, rear brake, and rear axle.

The special-tool table identifies the crankcase separating tool/crankshaft remover 09920-13120, crankshaft installer 09910-32812, valve-spring compressor 09916-14510, and clutch pilot 09920-31810. It also catalogs compression- and oil-pressure test equipment, valve-guide reamers, rotor-removal hardware, and bearing tools with Suzuki part numbers, while flagging tools listed as unavailable in the U.S. at publication.

During crankcase separation, the crankshaft and transmission must remain in the left case half or the gearshift-cam stopper can be damaged. Suzuki also warns that hammering the crankshaft into the case can disturb its alignment; the specified installer is part of the repair method.
