1997–2003 Honda XR70R Service & Repair Manual (P/N 31494-81100)

This Honda service manual covers the 1997–2003 XR70R, with separate early and later procedures for the fuel, ignition and transmission systems.

• Engine repair: Engine removal and installation, cylinder-head and valve service, cylinder/piston inspection, crankcase separation, and crankshaft checks.

• Clutch and transmission: Centrifugal-clutch disassembly, gearshift-linkage repair, shift-drum inspection, transmission assembly, and kickstarter-spindle service.

• Fuel and lubrication: PB12H carburetor overhaul, air-screw procedures, crankcase-breather service, oil-pump inspection, and centrifugal-filter cleaning.

• Chassis service: Telescopic-fork rebuilding, steering-stem bearing replacement, wheel inspection, drum-brake service, and swingarm-pivot and shock-absorber inspection.

• Ignition diagnosis: Ignition-coil, pulse-generator and exciter-coil peak-voltage tests, switch-continuity checks, and alternator-stator removal and installation.

• Workshop references: Maintenance schedules, torque tables, wear limits, two wiring diagrams, cable/harness routing views, exploded assemblies, and symptom-based troubleshooting charts.

This manual is suited to mechanically qualified users with suitable special tools and precision measuring equipment; it assumes knowledge of standard workshop procedures.

Engine Internals and Oil Supply

Mechanics will find procedures for valve-guide replacement and seat refacing, followed by piston-ring, cylinder and crankshaft inspection. The service information separates work possible with the engine in the frame from crankshaft and transmission work requiring engine removal and crankcase separation.

Oil-pump installation drawings identify the shaft groove and cam-chain guide spindle lug. The lubrication-system diagram traces oil delivery to the camshaft, rocker arms and transmission, while the pump section provides rotor-clearance inspection criteria.

Clutch, Gearsets and Kickstarter

Clutch troubleshooting links slipping and creeping to adjustment, disc and plate condition, springs and oil-related causes. Assembly drawings identify the centrifugal weights and disc/plate arrangement.

The early and later transmission views show the different gearsets and shift-fork layouts, helping match internal parts to the correct assembly. Kickstarter coverage includes the ratchet, friction spring and return-spring arrangement.

PB12H Carburetor and Breather

The fuel chapter separates the 1997–1999 best-idle air-screw procedure from the later idle-drop procedure. Float-level inspection is covered, but the float is nonadjustable; an out-of-spec float requires replacement of the float assembly.

The carburetor section warns that forcing the air screw against its seat damages the seat. Air-cleaner housing views also show the later crankcase-breather connection.

Fork, Steering and Rear Suspension

Fork instructions cover spring and tube inspection, seal replacement, fluid filling and oil-level measurement. Steering-stem service includes bearing-race replacement and bearing adjustment.

Rear suspension coverage addresses shock-absorber removal, inspection and installation, plus swingarm-pivot bushings. Brake assembly views identify the cam, wear-indicator plate and shoe arrangement for each wheel. Body-panel drawings distinguish the later seat, rear-fender and tank-shroud arrangement.

Ignition Tests and Fault Charts

Peak-voltage tests compare readings at the ICM and at the pulse-generator or exciter-coil connector. That comparison helps distinguish a harness fault from a faulty ignition component.

Electrical service calls for a peak-voltage tester or adapter and a suitable digital multimeter. The manual warns that disconnecting ICM wiring while current flows can damage the module.

Separate wiring diagrams show the early engine-stop-switch circuit and the later circuit with an ignition switch. Hard-starting, low-power and poor-handling charts organize checks by symptom.

Fuel and ignition work involves flammable fuel and high voltage; follow the manual’s safety precautions before service.

A Sample of Compression and Valvetrain Data

These examples are a small selection of the manual’s engine inspection and adjustment data. Compression-test reference pressure is 981–1,177 kPa at 500–600 rpm, with the engine warm and the throttle fully open.

Intake and exhaust valve clearance is specified as 0.05 ± 0.02 mm with the engine cold, below 35°C, at compression TDC.

Standard cam lobe heights are 27.945 mm for the intake and 26.076 mm for the exhaust. Separate service limits support assessment of camshaft wear.

Text Search, Bookmarks and PDF Contents

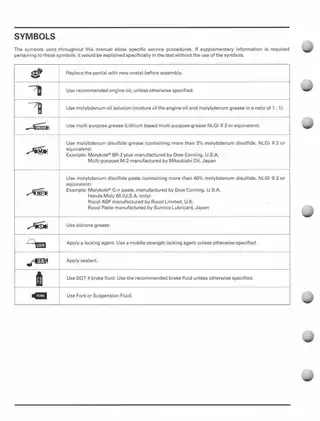

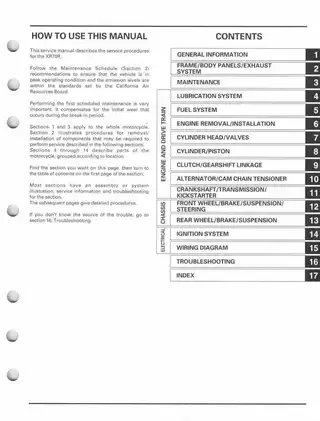

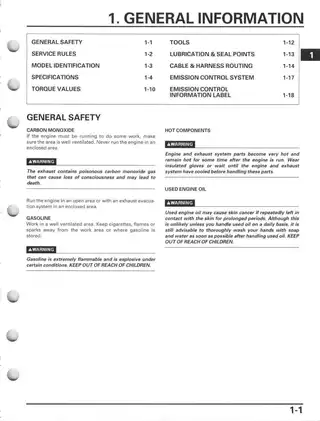

Search and diagram detail: OCR text search works across the service chapters, but some specification-table entries are not searchable. Embedded bookmarks cover the contents, chapters, wiring diagrams and index. Small wire-color codes and switch-table labels require zooming for comfortable reading.

Supplied as one printable, English-language, 218-page PDF. The total already includes the cover, three introductory pages and ten memo pages; these pages are not additional to the stated count.
