1996 Jeep Cherokee XJ SE Sport Country MPV Full Factory Service Manual, 1996 edition
Product Gallery

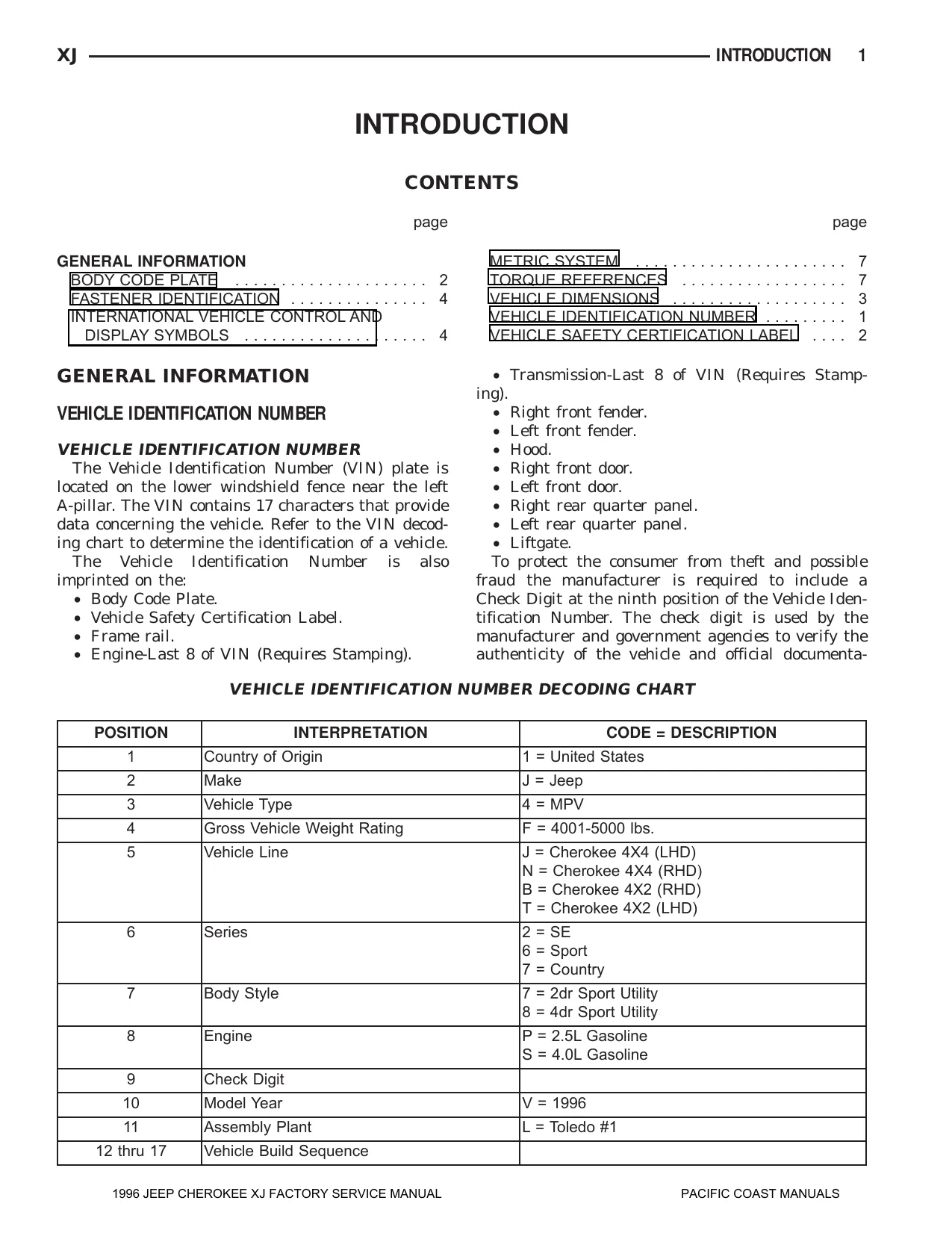

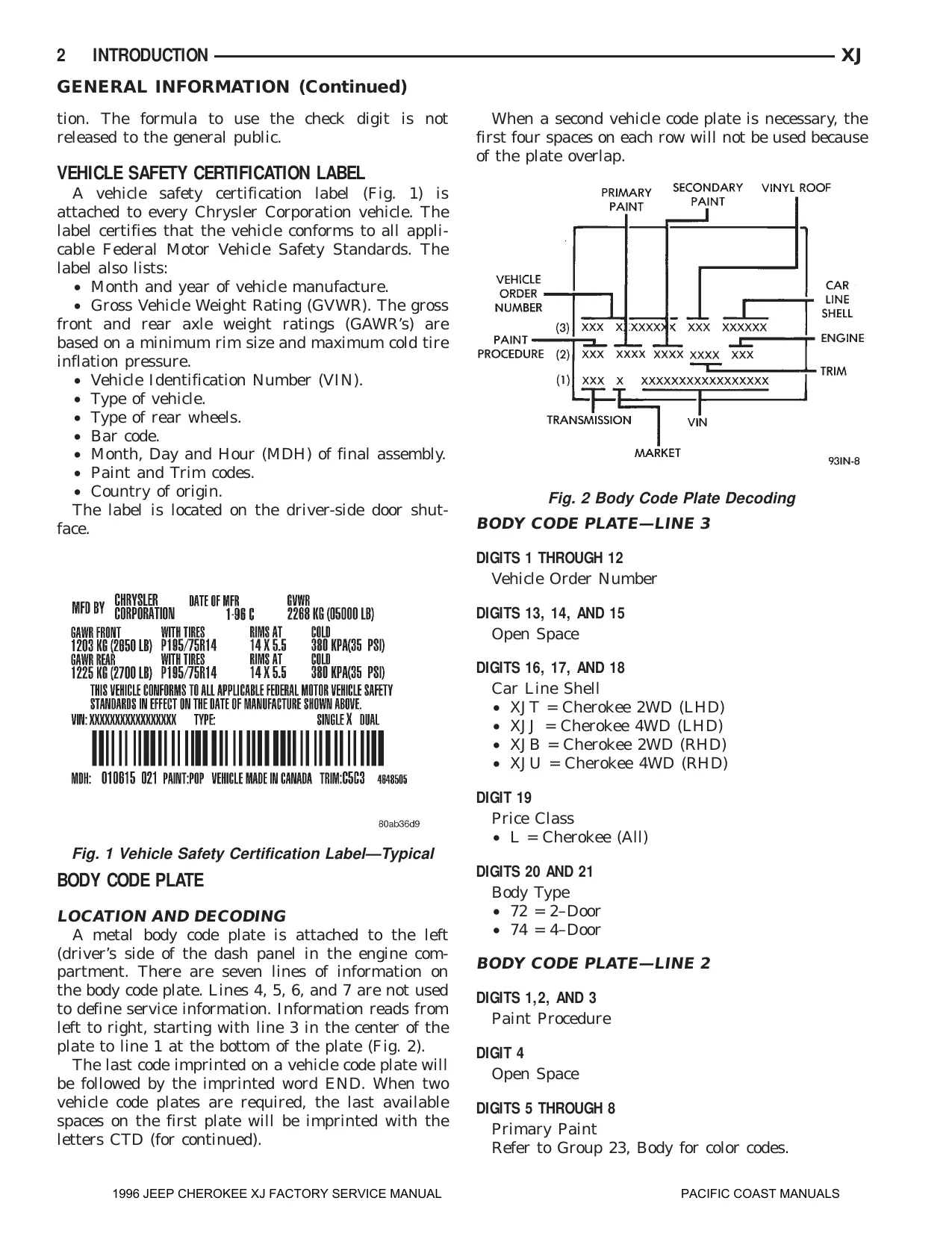

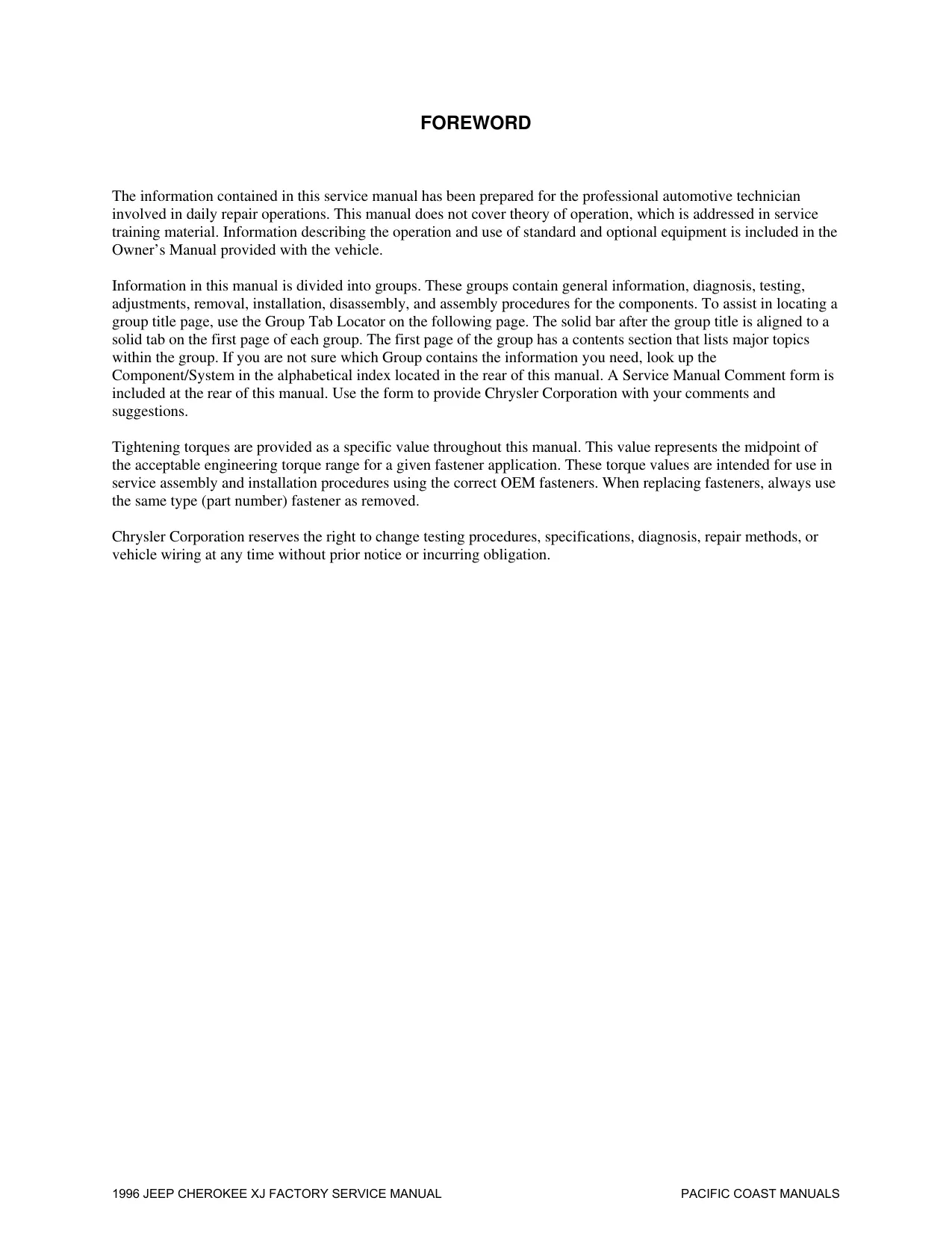

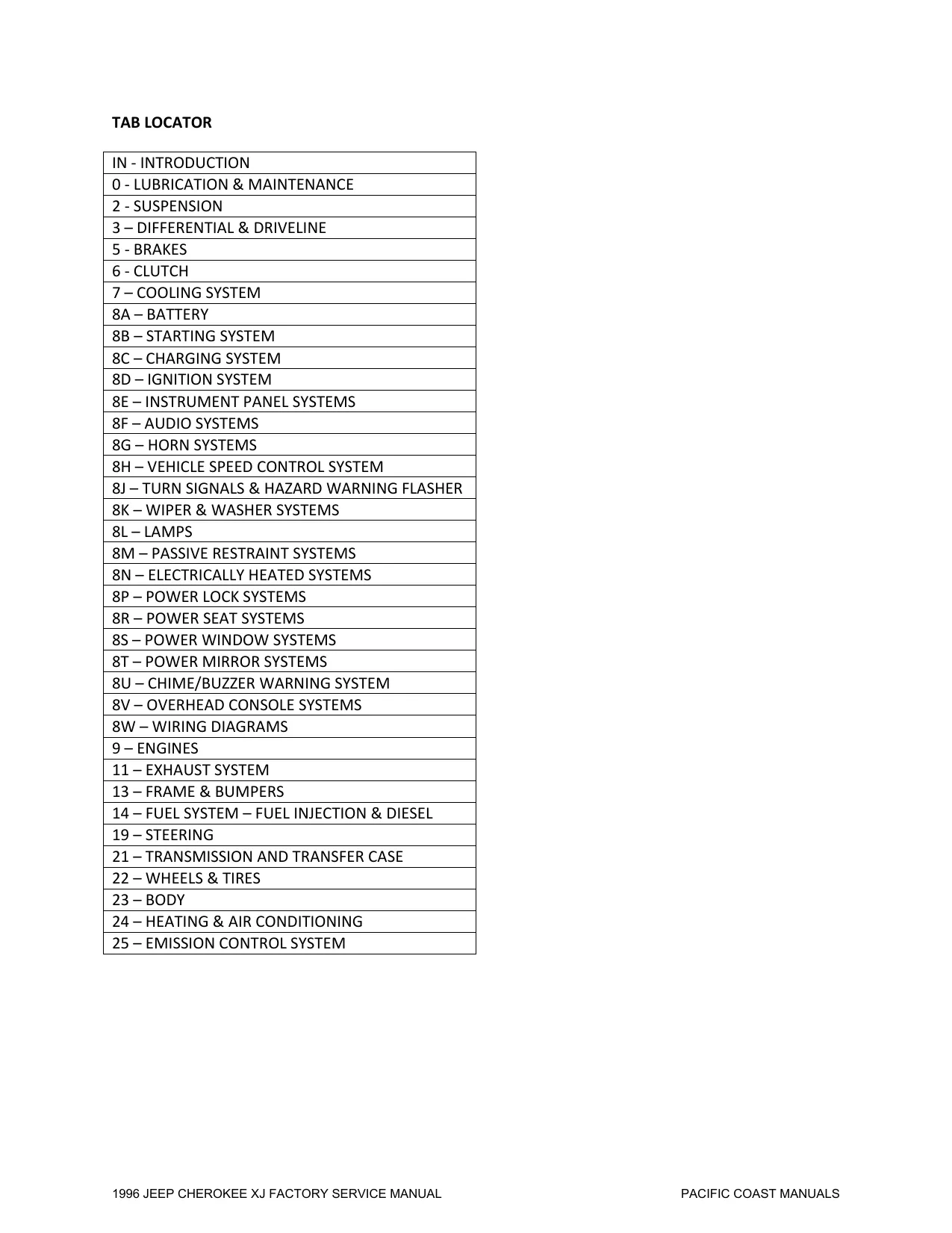

Sample pages from the 1996 Jeep Cherokee XJ SE Sport Country MPV Full Factory Service Manual, 1996 edition manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 30003 / Susan Smith
- File Size:
- 49.09 MB
- File Type:
- ZIP
- Language:
- English
- Pages:
- 2000+
- Printable:
- Yes
- Estimated Download Time:
- 1.01 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- SUV
- Brand:
- Jeep
- Reviewed and Approved:
- Dec 24, 2025
Jeep Models and Parts Covered in this SUV Manual
Jeep
- Cherokee SE 2-Door Sport Utility 2WD LHD (1996)
- Cherokee SE 2-Door Sport Utility 4WD LHD (1996)
- Cherokee SE 4-Door Sport Utility 2WD LHD (1996)
- Cherokee SE 4-Door Sport Utility 4WD LHD (1996)
- Cherokee Sport 2-Door Sport Utility 2WD LHD (1996)
- Cherokee Sport 2-Door Sport Utility 4WD LHD (1996)
- Cherokee Sport 4-Door Sport Utility 2WD LHD (1996)
- Cherokee Sport 4-Door Sport Utility 4WD LHD (1996)
- Cherokee Country 2-Door Sport Utility 2WD LHD (1996)
- Cherokee Country 2-Door Sport Utility 4WD LHD (1996)
- Cherokee Country 4-Door Sport Utility 2WD LHD (1996)
- Cherokee Country 4-Door Sport Utility 4WD LHD (1996)
- Cherokee 2-Door Sport Utility 2WD RHD (1996)
- Cherokee 2-Door Sport Utility 4WD RHD (1996)
- Cherokee 4-Door Sport Utility 2WD RHD (1996)
- Cherokee 4-Door Sport Utility 4WD RHD (1996)
Complete Manual Information
1996 Jeep Cherokee XJ Factory Service Manual - Comprehensive MPV Repair Guide
This is the definitive professional-grade technical resource for the 1996 Jeep Cherokee XJ. This is not a generic aftermarket manual; it is the Full Factory Service Manual (FSM) used by dealership technicians to diagnose, service, and overhaul every system of this iconic Multi-Purpose Vehicle (MPV). Whether you are maintaining a daily driver or performing a frame-off restoration, this manual provides the exact specifications and procedures required by the manufacturer.
The 1996 edition is specifically tailored for the Cherokee XJ lineup, covering both Gasoline and Diesel engines with detailed indexing and searchable content for fast navigation.
Detailed Model Coverage
This manual provides specific data for all 1996 model combinations, including Left Hand Drive (LHD) and Right Hand Drive (RHD) configurations. It covers the following trim levels and body styles:
- Cherokee SE 2-Door Sport Utility 2WD/4WD (1996)
- Cherokee SE 4-Door Sport Utility 2WD/4WD (1996)
- Cherokee Sport 2-Door Sport Utility 2WD/4WD (1996)
- Cherokee Sport 4-Door Sport Utility 2WD/4WD (1996)
- Cherokee Country 2-Door Sport Utility 2WD/4WD (1996)
- Cherokee Country 4-Door Sport Utility 2WD/4WD (1996)
Special attention is given to the varying chassis configurations (Vehicle Line Codes J, N, B, and I) and Gross Vehicle Weight Ratings (GVWR) typically ranging from 4001-5000 lbs (Code F).
Engine and Powertrain Specifications
Detailed teardown and assembly procedures are provided for all available powerplants, including:
- 2.5L 4-Cylinder MPI Gasoline Engine (Code PE)
- 4.0L 6-Cylinder MPI Gasoline Engine (Code ERH)
- 2.5L Diesel Engine (specific for International/Export models)
The manual includes critical data for the AW4 4-speed Automatic Transmission (Code DGS), the 30RH 3-speed Automatic (Code DGD), and the AX5 5-speed Manual (Code DDQ). You will find full hydraulic flow diagrams, solenoid testing for the AW4 transmission computer unit (TCU), and complete transfer case service for both Command-Trac 231 and Selec-Trac 242 systems.
Professional Technical Content
- Vehicle Identification: Complete VIN decoding (17 characters) and Body Code Plate interpretation to identify your exact build sequence, paint, and trim codes.
- Chassis and Suspension: Full service for the Link/Coil front suspension and leaf spring rear suspension, including exact alignment specs for Caster, Camber, and Toe.
- Electrical System: Comprehensive wiring diagrams (Group 8W), including Power Lock, Power Window, and Electrically Heated systems.
- Maintenance Schedules: Differentiated schedules for "Normal" (Schedule A) and "Severe" (Schedule B) operating conditions, ensuring your XJ stays on the road.
- Torque Specifications: Precise torque charts are provided at the end of many groups, including mid-point engineering values for OEM fasteners.
Product Specifications
- Format: Comprehensive Factory Service Manual
- Content: Indexed, Bookmarked, and Searchable
- Included Supplement: Dedicated ATSG Jeep AW-4 Transmission manual (105 pages)
- Coverage: Full vehicle (Engine, Chassis, Electrical, Body, HVAC, Emissions)
This manual is the ultimate tool for ensuring the longevity and performance of your 1996 Cherokee XJ. It eliminates guesswork by providing the same technical data used by Chrysler Corporation professionals.
