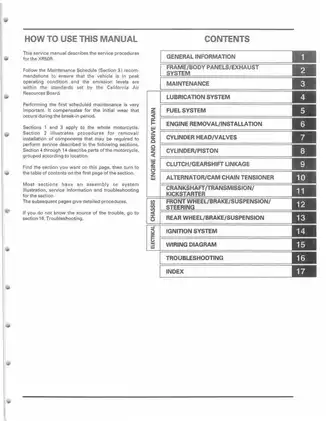

Honda XR50R 2000–2003 Service & Repair Manual (P/N 61GEL03)

• Covers 2000-2003 Honda XR50R off-road motorcycles, including the air-cooled OHC engine, PA42A carburetor, automatic centrifugal clutch, three-speed transmission, CDI ignition, drum brakes, and chassis systems.
• Engine repair coverage runs from removal and installation through oil-pump service, compression diagnosis, camshaft and cylinder-head work, valve-guide and seat repair, piston and cylinder inspection, and cam-chain tensioner service.
• Internal drivetrain procedures include clutch disassembly and inspection, gearshift-linkage service, crankcase separation, crankshaft inspection, transmission teardown and reassembly, and kickstarter repair.
• Chassis sections detail front and rear wheel service, wheel-bearing replacement, spoke lacing and hub-to-rim centering, drum-brake overhaul, fork disassembly, steering-head bearing replacement, shock inspection, and swingarm service.
• Diagnostic material includes fuel-system troubleshooting, the carburetor idle-drop adjustment, CDI peak-voltage testing, no-spark fault isolation, ignition timing inspection, and symptom charts for starting, power, idle, high-speed, and handling problems.
• The 197-page PDF includes Honda Item/Part No. 61GEL03, system-specific torque data, service limits, clearances, capacities, lubrication points, special-tool callouts, cable and harness routing views, and a full wiring diagram.

This is a repair-focused factory shop manual rather than an owner's handbook or illustrated parts catalog. It is best suited to professional technicians and mechanically qualified owners who have metric tools, precision measuring equipment, and access to the specified service tools; Honda's maintenance notes reserve some work for a dealer unless the owner has the required tools, service data, and mechanical qualifications.

Internal Engine and Drivetrain Depth

The cylinder-head chapter goes well beyond basic valve adjustment. It covers camshaft inspection, rocker arms and shafts, valve-spring removal, valve and guide measurement, guide replacement and reaming, valve-seat inspection and refacing, cylinder-head checks, cam installation, and timing alignment. The cylinder and piston section supplies bore, taper, out-of-round, piston, pin, ring-groove, and ring-end-gap inspection data, along with oversize-piston information and assembly orientation.

For lower-end repair, the manual identifies which assemblies can be serviced with the engine in the frame and which require engine removal. Crankshaft, transmission, and kickstarter work requires crankcase separation. The related chapters cover shaft and bearing inspection, gear dogs and bushings, shift forks and drum, transmission-bearing replacement, gear-stack assembly, and operational checks after installation. The automatic clutch section separately addresses the weights, discs, plates, springs, lifter parts, primary gearing, and shift mechanism.

Carburetor, Lubrication, and CDI Diagnosis

The PA42A carburetor section documents removal, disassembly, jet and passage cleaning, float-valve inspection, reassembly, float-level checking, installation, and the factory idle-drop procedure. A useful scope detail is that the float itself is not adjustable; the float assembly is replaced if its level is outside specification. Lubrication coverage includes the strainer, centrifugal filter, trochoid oil pump, rotor-clearance inspection, oil-flow diagram, and assembly lubrication and seal-point chart.

Electrical diagnosis is built around the CDI ignition system. The manual provides a system diagram and test sequence for the ignition-coil primary circuit, ignition pulse generator, alternator exciter coil, ignition control module, engine-stop switch, and ignition switch. It also makes clear that ignition timing is electronically controlled and inspected rather than adjusted. Visual references include the lubrication system diagram, cable and harness routing views, clutch assembly view, transmission and shift-drum assembly views, ignition system diagram, and wiring diagram.

Chassis Scope, Tools, and Repair Cautions

Wheel service includes axle and rim runout checks, bearing replacement, spoke replacement, hub offset setup, and front and rear drum-brake inspection. The fork chapter covers its spring, slider, piston, guide, seals, and grease quantities. Steering service includes bearing-race replacement and the factory seating and final-adjustment sequence. The rear shock is inspected and replaced as an assembly; the manual does not provide an internal shock rebuild procedure.

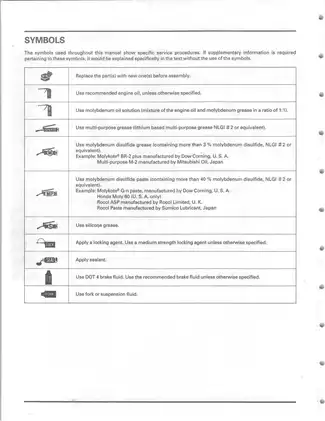

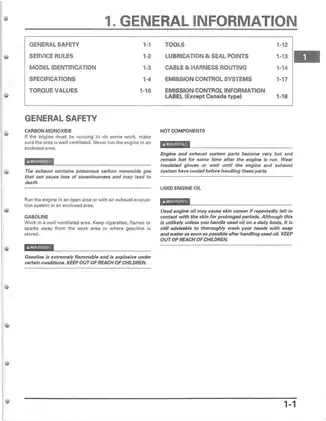

The general-information section also identifies the locations of the frame serial number, engine serial number, VIN, carburetor identification number, and color label, helping match the motorcycle and replacement parts information before repair work begins.

Named service tools include carburetor float-level gauge 07401-0010000, valve-spring compressor 07757-0010000 with attachment 07959-KM30101, clutch lock-nut wrench 07716-0020100, the U.S.-market flywheel puller 07933-0010000, and peak-voltage adapter 07HGJ-0020100 with the specified meter setup.

Two assembly cautions are especially relevant during engine repair: torch-heating the cylinder head during valve-guide replacement can warp the head, and overtightening the carburetor air screw can damage its seat. Brake linings contaminated with lubricant must be replaced rather than reused. Follow the manual's precautions for gasoline, hot exhaust parts, carbon monoxide, ignition voltage, securely supporting the motorcycle, and safety-critical brake or steering work.
