Yamaha Models Covered & Key Technical Specifications

Models: FZ8, FZ8NA, FZ8SA

Sub-models / Variants: FZ8NA (59P1), FZ8SA (1BD1)

Model Year: 2011


  • Engine displacement: 779 cm³

  • Engine type: Liquid cooled 4-stroke, DOHC, parallel 4-cylinder

  • Starter motor power output: 0.70 kW

  • Fuel system: Electronically controlled fuel injection (FI)

  • Fuel pressure: 324.0 kPa

  • Engine oil capacity: 3.80 L (total), 3.10 L (with oil filter)

  • Coolant system capacity: 2.25 L (radiator, including all routes), 0.25 L (reservoir, to maximum level)

  • Transmission type: Constant mesh 6-speed

  • Primary reduction ratio: 65/43 (1.512)

  • Secondary reduction ratio: 46/16 (2.875)

  • Tire pressure: 250 kPa (front), 290 kPa (rear), measured cold

  • Electrical system voltage: 12 V

  • Ignition system: TCI

Yamaha Manual Features & Selected Content Preview

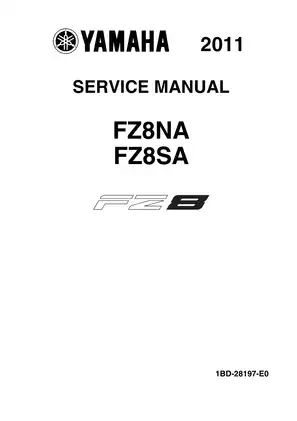

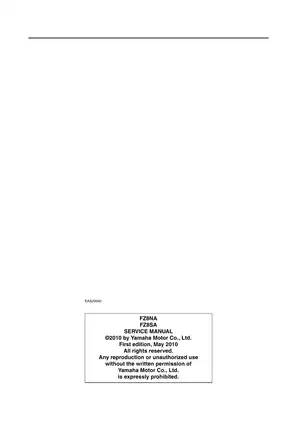

Yamaha factory service manual for the 2011 FZ8NA (59P1) and FZ8SA (1BD1), P/N 1BD-28197-E0, first edition May 2010.

PDF Search, Bookmarks, and Wiring Detail

Navigation and diagram labels: The service text is searchable, with embedded bookmarks for chapters and sections. Small wiring-diagram labels require zooming and are not consistently searchable.

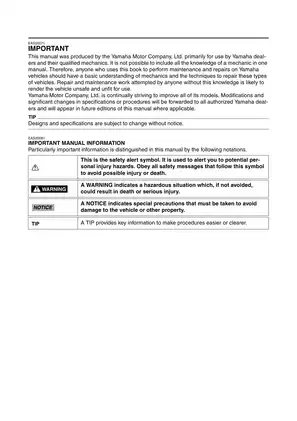

One printable, 610-page PDF in English: 606 pages of the service manual, including its original front matter, plus four large-format wiring-diagram pages.


Engine, Chassis, and ABS Workshop Coverage

These selected coverage highlights outline the main repair areas. Additional topics include exhaust-gas-volume adjustment and air-induction-system checks.

  • Engine repair: Compression testing, engine removal and installation, camshaft and timing-chain service, cylinder-head and valve work, pistons, connecting rods, crankshaft inspection, and oil-pump service.

  • Clutch and transmission: Starter-clutch and clutch repair, crankcase separation, shift-shaft inspection, and transmission disassembly and reassembly.

  • Wheels, brakes, and ABS: Front and rear wheel service, sensor rotors, static balancing, caliper and master-cylinder repair, hydraulic bleeding, and hydraulic-unit removal, installation, and operation tests.

  • Fuel and scheduled service: Throttle-body synchronization, valve-clearance adjustment, fuel- and injector-pressure testing, and throttle-position and sub-throttle-position sensor adjustment.

  • Cooling system: Radiator and cap testing, thermostat checks, and step-by-step water-pump disassembly, inspection, and assembly procedures.

  • Electrical fault isolation: Circuit diagrams and troubleshooting for ignition, starting, charging, lighting, signaling, cooling, fuel injection, fuel pump, immobilizer, and ABS, with diagnostic-mode and fault-code tables.

  • Factory reference data: Exploded job diagrams, special-tool references, component-specific torque tables, capacities, wear limits, clearances, electrical test data, lubrication charts, and cable-routing views.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes existing motorcycle-repair knowledge and access to the specified measuring equipment and service tools.

Engine Internals and Chassis Service

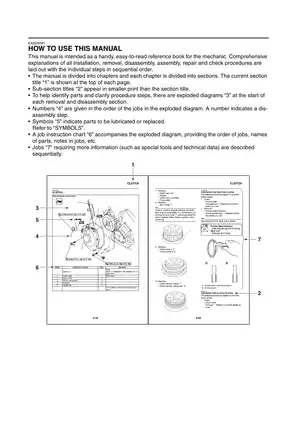

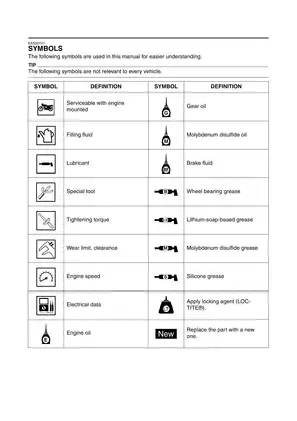

Engine work extends to valve-guide and valve-seat inspection, lower-end disassembly, bearing and journal checks, and main- and drive-axle assembly. Exploded views and job charts link parts, replacement symbols, and lubrication requirements to the relevant procedures, helping you identify service parts before disassembly.

The chassis chapter covers fork-leg overhaul, steering-head service, rear-shock and linkage inspection, swingarm removal, and chain-drive checks. The fork legs have different left/right oil requirements; rear-shock service covers inspection and assembly replacement, rather than internal overhaul.

Uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts; turning the crankshaft during camshaft installation can also cause damage or incorrect valve timing.

ABS Diagnosis and Service Limits

The ABS sections explain the ECU-integrated hydraulic unit, wheel sensors, solenoid valves, pump and motor, warning-light behavior, self-diagnosis, coupler locations, and fault-code handling. Hydraulic-unit operation tests distinguish post-service function checks from simulated ABS pulsation checks.

Hydraulic-unit scope: The integrated ABS ECU/hydraulic unit cannot be disassembled. Brake work is tied to Yamaha’s bleeding procedures, final checks, and required post-service trial run.

Contamination must be kept out of the hydraulic unit and brake plumbing; incorrectly fitted temporary plugs can deform brake-pipe seating surfaces, while brake fluid can damage electrical couplers and cause poor connections.

Variant Diagrams, Fault Codes, and Tools

Bodywork and routing: FZ8SA procedures cover the front cowling, inner and side panels, and headlight assembly. Model-specific views show the different front-end wiring and cable routing.

Illustrations range from the FI system schematic and ABS block diagram to engine-oil lubrication charts, cooling-system diagrams, and hydraulic-unit routing views. Full wiring diagrams for both models are supplied in black-and-white and color.

Fuel-injection tables connect displayed fault codes and diagnostic-mode readings to sensors, actuators, wiring, and ECU circuits. Immobilizer coverage includes component-replacement and key-code registration requirements.

Special tools: Listed examples include test coupler adapter 90890-03149, fuel injector pressure adapter 90890-03210 / YU-03210, and camshaft wrench 90890-04162 / YM-04162. Yamaha distinguishes 90890 numbers from the YM-, YU-, and ACC-prefixed numbers used in the United States and Canada.

Valve-Clearance and Synchronization Preview

Valve-clearance specifications for a cold engine at room temperature are 0.10–0.17 mm for the intake valves and 0.25–0.29 mm for the exhaust valves. The adjustment section also covers valve-pad selection.

Throttle-body synchronization is checked with the engine warmed up and idling at 1150–1250 r/min. The permitted vacuum-pressure difference between throttle bodies is no more than 1.33 kPa (10 mmHg).
