2006 Volvo Penta D2-55 A/B/C, D2-75 A Marine Diesel Workshop Manual (P/N 833038-3)

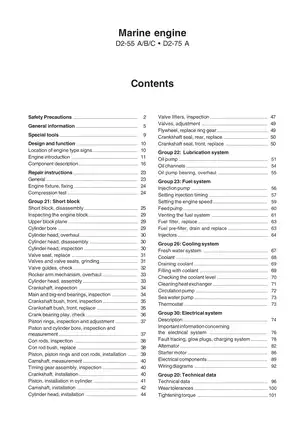

This 2006 Volvo Penta workshop manual covers D2-55 A/B/C and D2-75 A marine diesel engines, with factory repair instructions for Groups 20–23, 26, and 30.

• Short block and cylinder head: Engine disassembly and assembly, cylinder-head overhaul, valve-seat machining, rocker-arm service, and crankshaft, bearing, piston, and piston-pin inspection.

• Timing and lubrication: Camshaft and centrifugal-regulator removal, timing-gear installation, oil-pressure checks, oil-pump inspection, oil-channel cleaning, and oil-pump bearing replacement.

• Fuel injection: Injection-pump removal and installation, drop-pipe timing checks, feed-pump overhaul, fuel-system priming, and pintle-type injector testing and overhaul.

• Cooling system: Heat-exchanger cleaning, circulation-pump replacement, seawater-pump impeller replacement, thermostat testing, and coolant-flow illustrations.

• Electrical diagnosis: Glow-plug testing, battery-circuit fault tracing, alternator regulator, winding and diode checks, plus starter-motor disassembly and inspection.

• Wiring and service data: Engine and instrument-panel wiring diagrams, cylinder-head tightening-sequence drawings, component views, torque tables, and clearance and wear-limit specifications.

Written primarily for Volvo Penta workshops and service technicians, this manual assumes basic knowledge of marine drive systems and the mechanical and electrical work associated with the trade.

Engine Overhaul and Drive Configuration Scope

Mechanics will find systematic descriptions covering the disassembly, inspection, and installation of the crankshaft, camshaft, pistons, and valve gear. The inspection procedures and corresponding wear limits support decisions about component reuse or replacement during an overhaul.

Step-by-step procedures cover front crankshaft bushing replacement, valve-seat machining, flywheel ring-gear replacement, and cylinder-head installation. Valve-guide checks, connecting-rod measurements, piston-pin clearances, and piston-ring inspection extend the coverage beyond routine maintenance.

The D2-55 is naturally aspirated; the D2-75 uses a turbocharger and charge-air cooler. Coverage of those D2-75 components includes identification and removal and installation during engine teardown and assembly, rather than a dedicated internal turbocharger overhaul procedure.

MS25L/HS25A reversing gears and MS25S/130S/150S sail-drives appear in the engine configuration views. Internal transmission and sail-drive overhaul are outside this engine workshop manual’s scope.

The crankshaft-installation notes warn that timing-gear teeth can damage the front bearing. Injection-pump removal also requires care around the regulator lever, which can be bent or damaged.

Injection Timing and Fuel-System Testing

The injection-pump section explains how flange shims determine timing and when replacement engine components require a fresh timing check. Separate priming instructions distinguish D2-55 A/B from D2-55 C and D2-75 A installations.

Injector testing covers opening pressure, sealing, and spray pattern; the manual explains why spray appearance alone does not establish nozzle condition. Injector tester 999 9772 and compression-test equipment are identified for the relevant checks.

Injection-pump work that can alter settings requires specially trained personnel and suitable test equipment. For emission-certified engines, the manual reserves injection-pump and injector service for authorized Volvo Penta workshops.

Cooling-System Service and Fault Tracing

Cooling-system coverage separates the closed freshwater circuit from the seawater circuit. Overheating checks address restricted seawater flow, damaged impellers, trapped air, thermostat faults, and incorrect injection timing.

The heat-exchanger section covers insert removal, cleaning, and installation orientation. Coolant-flow drawings, a seawater-pump exploded view, and thermostat illustrations support identification of the components involved.

Charging, Starting, and Instrument Wiring

Battery-circuit tests precede alternator disassembly, allowing cable and connection faults to be investigated before the alternator is taken apart. Further checks cover the voltage regulator, rotor and stator windings, diode bridge, and glow plugs.

Engine wiring and instrument-panel alternatives A, B, and C include cable-color legends and connector identification. Starter-motor inspection requires the test equipment available to an authorized electrical workshop.

Alternator ratings differ between the electrical chapter and the technical-data table; confirm the installed unit before selecting test data.

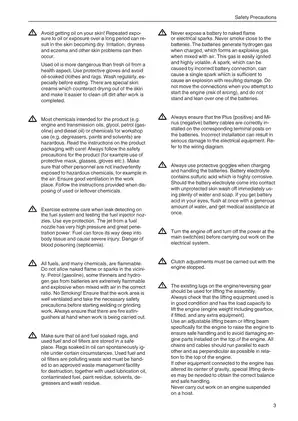

The safety sections address high-pressure fuel, hot coolant, rotating components, and hydrofluoric-acid hazards from fluorocarbon seals exposed to severe overheating or fire. Repair work requires the complete workshop instructions and the applicable safety precautions.

Valve-Clearance and Piston-Ring Data Preview

For D2-55 A/B/C and D2-75 A engines, the valve-adjustment section specifies 0.20 mm for both intake and exhaust on a stationary, cold engine.

The piston data lists an upper compression-ring gap of 0.20–0.35 mm in the cylinder, alongside separate ring-groove clearances and wear limits.

PDF Text Search and Wiring Detail

Search, navigation, and diagram labels: Main text is searchable, while some labels within wiring drawings are outside the searchable text layer. There are no embedded PDF bookmarks. Small cable codes and connector numbers in the instrument-panel diagrams are best read with zoom.

Supplied as one printable, 108-page PDF in English. The total includes the front and rear covers, one blank page, one service-bulletin reference sheet, three notes pages, and a report form.
