2003–2004 Volvo Penta 4.3GL, 4.3GXi & 4.3OSi Marine Engine Workshop Manual (P/N VPA 7743365)

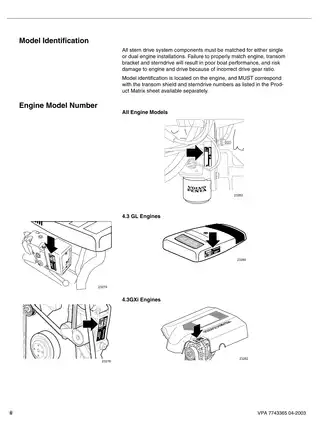

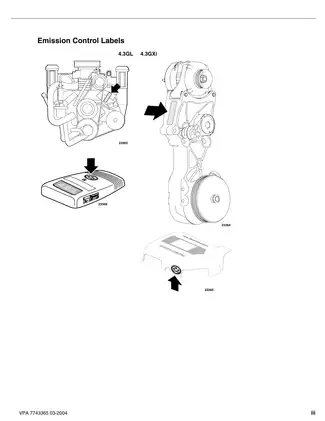

This Volvo Penta engine workshop manual, publication VPA 7743365 (03-2004), covers 2003–2004 4.3GL, 4.3GXi, and 4.3OSi marine engines in the variants listed above, including the specified F-suffix closed-cooling models.

• Engine repair: Cylinder block reconditioning, crankshaft and connecting rod bearing replacement, piston fitting, oil pump overhaul, and camshaft and balance shaft service.

• Cylinder heads and valve train: Head removal and reconditioning, valve-guide inspection and reaming, valve-seat grinding, and hydraulic roller lifter and rocker-arm procedures.

• Engine diagnosis: Compression testing, intake manifold vacuum testing, and symptom-based troubleshooting for starting problems, rough running, overheating, noise, and lubrication faults.

• Power steering: Pump pressure testing and replacement, steering-cylinder removal, pivot-bushing and clevis service, hydraulic bleeding, and steering-cable diagnosis.

• Cooling and seasonal maintenance: Raw-water pump impeller replacement, thermostat testing, cooling-fault isolation, and draining and winterization procedures for raw-water and closed-cooling systems.

• Controls and engine installation: Shift-cable stroke checks, throttle-linkage adjustment, neutral-start switch tests, engine removal and installation, and engine-coupler alignment.

This manual is suited to mechanics familiar with marine engines and equipped for precision measurement, component reconditioning, and engine lifting.

Engine Service and Mechanical Documentation

The internal-engine sections pair bore and bearing measurements with piston selection, cylinder honing, and assembly procedures. Exploded assembly views, cylinder-head bolt tightening diagrams, and component-specific torque tables support reassembly.

Cylinder-head reconditioning: Exhaust guides can be reamed for oversize-stem service valves, while excessive intake-guide clearance may require cylinder-head replacement. That distinction helps establish the repair scope before replacement valves or machining work are ordered.

Sealing and assembly: The manual distinguishes RTV sealer from anaerobic gasket eliminator and details adhesive application at the lower intake manifold. Cylinder-head tightening instructions distinguish bolt lengths and their respective torque-angle requirements.

The composite front cover has an integral gasket and requires replacement after removal; an incorrectly seated crankshaft position sensor can cause erratic operation. Improper crankshaft balancer installation can shift the rubber-bonded inertia weight and destroy its tuning; the procedure specifies the J 23523-F remover/installer.

Engine Diagnosis and Fuel-System Scope

The Compression Pressure Limit chart and Vacuum Gauge Readings table connect test results with possible ring, valve, intake-leak, and ignition-timing faults. These references help narrow the cause of poor running before engine disassembly.

Separate diagnostic publications: EFI diagnosis, fuel-pressure relief, and fuel-line quick-connect servicing refer to a separate EFI Diagnostic Workshop Manual. Further electrical, ignition, and fuel-system diagnosis refers to the Electrical/Ignition/Fuel Service Manual. Those publications are not included.

Steering, Controls, and Engine Alignment

The Power Steering System Diagnosis Chart addresses noise, kickback, surging, and increased steering effort. Hydraulic operating schematics explain the control valve and cylinder, while the troubleshooting text distinguishes cable restrictions from pump and fluid problems.

Steering-cylinder service: Procedures cover removal, pivot-bushing replacement, clevis servicing, and installation. They do not provide a complete internal cylinder overhaul.

Control instructions distinguish throttle-cable attachments between engine variants and include electrical and mechanical neutral-start switch tests. The engine installation section covers exhaust-pipe replacement, rear engine mounts, and alignment with tool 3851083-0.

Marine engine work involves heavy assemblies, gasoline vapors, and electrical circuits. Review the manual’s lifting, ventilation, and battery-isolation precautions before teardown.

Cooling Circuits and Winterization

The Sterndrive and Transom Bracket Cooling Schematic and separate engine cooling diagrams trace water flow through the drive, engine, and exhaust. The F-suffix diagram distinguishes the heat exchanger’s raw-water circuit from the closed coolant circuit.

Cooling-fault isolation covers air entering the water supply, restricted flow, thermostat problems, and possible head-gasket leakage. Seasonal storage instructions address fuel-system preservation and variant-specific draining.

The raw-water supply pump has an impeller replacement procedure. The engine circulating pump is replaced as an assembly rather than internally rebuilt.

Examples of Compression, Valve-Clearance, and Manifold Data

For compression testing at normal operating temperature, the lowest cylinder reading must be at least 75% of the highest reading to meet the manual’s comparison criterion.

The engine specifications list a service valve-stem-to-guide clearance of 0.025–0.094 mm for both intake and exhaust valves, distinguishing service limits from production clearances.

The lower intake manifold’s three-pass tightening procedure ends at 15 N·m (11 lb. ft.); the manual supplies the preceding stages and bolt sequence.

Searchable Service Text and PDF Navigation

Search, bookmarks, and diagram detail: The main service text is searchable, but cover text is not reliably searchable. Embedded bookmarks reach the service sections; many entries lack descriptive labels, and the safety section has no dedicated bookmarks. Small hydraulic-schematic labels are legible when enlarged.

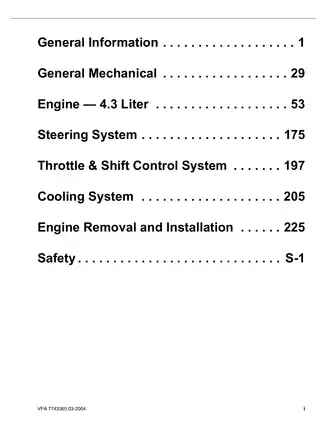

A single printable, English-language 262-page PDF contains 240 numbered service pages, including three notes pages; four preliminary pages; a 14-page safety section; two cover pages; and two blank pages.
