Volvo Penta Sterndrive Repair Manual 1968–1991 (P/N 3600)

This Seloc repair manual (P/N 3600) covers 1968–1991 Volvo Penta gasoline sterndrives with Volvo-built, General Motors, and Ford engines. It includes service procedures for the 250, 270, 275, 280, and 290 drives, with separate overhaul sections for Single Prop and DuoProp lower units.

Search, Bookmarks, and Print Format

Finding text and wiring details: Chapter bookmarks jump to the main sections and the wiring appendix. OCR supports text search across the manual, with gaps in some tables and drawings. Zoom helps with small terminal and wire-color labels, though a few labels are faint or overlap in the scan.

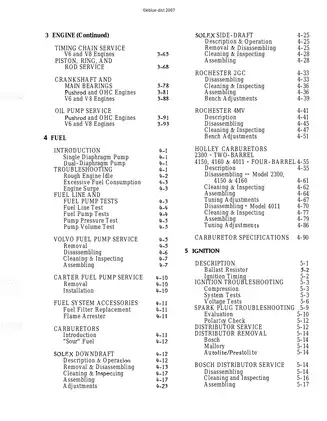

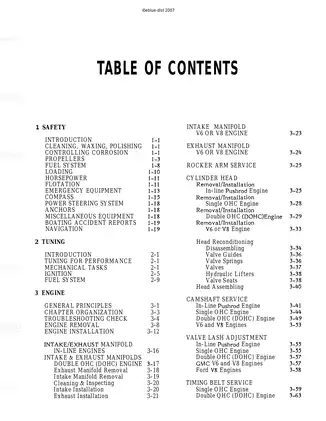

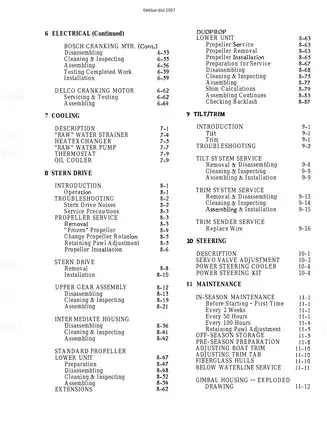

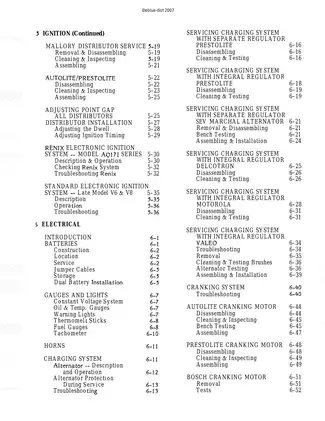

The ZIP download contains one printable PDF with 528 pages, including the Engine Finder, the five-page table of contents, and the 66-page appendix. The appendix includes 25 pages of wiring diagrams.

Gasoline Engine and Sterndrive Service

These are selected topics from the manual. It also covers off-season storage and preseason preparation.

• Engine repair: Engine removal and installation, manifold service, cylinder head reconditioning, camshafts, valve lash, timing belts and chains, piston and rod service, crankshaft bearings, and oil pumps.
• Fuel delivery: Fuel-line checks, fuel-pump pressure and volume tests, Volvo pump overhaul, Carter pump replacement, and bench work on Solex, Rochester, and Holley carburetors.
• Ignition diagnosis: Spark-plug condition checks, ignition voltage tests, distributor service, AQ171 Renix troubleshooting, and electronic ignition diagnosis for late-model V6 and V8 engines.
• Charging and cranking: Battery service, fuel-gauge fault tracing, charging-circuit checks, and alternator and starter bench tests.
• Cooling: Raw-water strainer and pump service, heat exchanger inspection, thermostat checks, and oil cooler service.
• Sterndrive overhaul: Propeller removal and rotation changes, drive removal and installation, upper gear and intermediate housing service, and separate Single Prop and DuoProp lower-unit procedures.
• Tilt, trim, and steering: Tilt and trim troubleshooting, trim sender service, and power steering servo-valve adjustment.

Routine maintenance is suited to owners familiar with marine gasoline engines. Internal drive work is suited to experienced mechanics equipped to measure bearing preload and gear backlash and use the specified service tools.

Engine Families and Tune-Up Data

The Engine Finder groups power packages by engine maker. Repair procedures distinguish Volvo in-line pushrod, single-OHC, and DOHC engines, GM V6 and V8 engines, and Ford V8s. The appendix groups tune-up settings, clearances, and torque data by engine family so the engine designation leads to the corresponding table.

The Engine Finder lists the GM 8.2L and Ford 7.5L V8s. The dedicated V8 specification tables cover the GM 305, 307, 350, and 454 cu. in. engines and Ford AQ190A and AQ240A. Volvo tool references include camshaft tool 9995021, valve-shim tools 9995022 and 9995026, and valve-adjusting kits 884516 and 884516-4.

Fuel, Ignition, and Electrical Diagnosis

Compression and vacuum checks help separate mechanical faults from fuel and ignition problems. Carburetor procedures cover Solex downdraft and side-draft units, Rochester 2GC and 4MV, and Holley 2300, 4150, 4160, and 4011 models. The ignition chapter details Bosch, Mallory, and Autolite/Prestolite distributor service.

Alternator sections distinguish Prestolite units with separate or integral regulators, along with SEV Marchal, Delcotron, Motorola, and Valeo units. Starter sections cover Autolite, Prestolite, Bosch, and Delco motors.

Gear Setup and Lower-Unit Overhaul

The noise diagnosis section helps narrow a complaint to the propeller hub, upper gears, or lower unit before teardown. Step-by-step overhaul procedures cover shim calculations, gear tooth contact, backlash, and bearing preload. Propeller reference material explains diameter, pitch, and their relationship to engine speed.

The drive chapter identifies the different hinge pins used on the 280T and calls out slide hammer 884161, drive holding tool 884264, and DuoProp seal-protection tool 884807. Damage to either DuoProp shaft or its splines can require a replacement shaft with its matched forward gear set. During standard lower-unit assembly, a displaced water-tube O-ring can admit air on the intake side of the cooling system and cause overheating.

Wiring Diagrams and Assembly Drawings

The appendix includes complete wiring layouts for AQ171A, AQ175A, and Model 740, plus engine-compartment and instrument-panel sheets for AQ200, AQ225, AQ280, and AQ290 configurations. It distinguishes U.S. and non-U.S. Power Tilt wiring and shows single- and dual-station Power Trim circuits with the trim gauge and limit switch. The maintenance chapter includes an exploded view of the complete gimbal housing.

Marine repair work involves gasoline vapor, rotating machinery, heavy engine and drive assemblies, electrical circuits, and powered tilt/trim components. Isolate electrical power, support removed assemblies correctly, ventilate the work area, and follow accepted marine-shop safety procedures during hands-on service.

Sample Gear Ratios and DuoProp Backlash

The gear-ratio chart lists 1.89:1 for the 280C and 2.15:1 for the 280D. The model suffix identifies which ratio the chart assigns to each drive.

The DuoProp lower-unit procedure distinguishes actual gear backlash from the dial-indicator reading at the propeller nut. It gives 0.006–0.013 inch of backlash at the forward gear and 0.008–0.014 inch at the aft gear.
