2004 Volvo Penta 5.0L & 5.7L Marine Engine Workshop Manual (P/N VPA 7743372)

This 2004 Volvo Penta workshop manual covers the listed 5.0L and 5.7L V-8 marine engines, including GL, Gi, GXi, OSi, OSXi and 5.7GiI variants. Publication VPA 7743372 is the October 2004 edition.

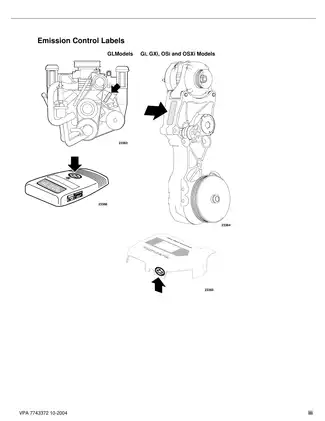

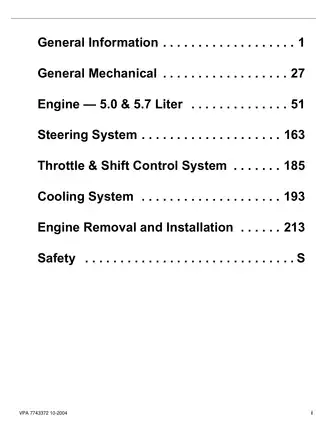

Text search and navigation: Body text is searchable. Embedded bookmarks cover model identification and all seven technical sections; the Safety section is not bookmarked.

• Engine repair: Cylinder-head reconditioning, valve grinding, cylinder boring and honing, piston and connecting-rod inspection, camshaft service, and timing-chain replacement.

• Lubrication system: Oil-pump disassembly and inspection, oil-pan service, crankshaft bearing-clearance measurements, and crankcase ventilation diagnosis.

• Engine installation: Engine removal and installation, coupler and flywheel service, rear-mount repair, alignment checks, and minimum engine-height assessment.

• Power steering: Pump pressure testing, cylinder removal and installation, steering-system bleeding, cable diagnosis, and twin-engine tie-bar adjustment.

• Throttle and shift controls: SAE cable installation and adjustment, remote-control cable-stroke checks, and electrical and mechanical neutral-start switch tests.

• Cooling system: Raw-water and closed-cooling operation, overheating diagnosis, thermostat testing, supply-pump impeller replacement, and model-specific cooling diagrams.

This manual is suited to marine technicians and experienced owners with engine-repair skills; internal overhaul assumes precision measuring equipment, special tools, and a properly equipped workshop.

Engine Overhaul, Lubrication and Installation

The engine sections cover cleaning, inspection, and assembly of engine blocks, cylinder heads, intake manifolds, and exhaust manifolds. Valve-guide reaming, valve-seat grinding, hydraulic roller-lifter inspection, and valve-lash adjustment extend the coverage beyond routine maintenance.

Bearings and seals: Crankshaft inspection includes both micrometer and plastic-gauge methods for measuring main-bearing clearances. The manual distinguishes these from connecting-rod clearance measurement, for which it favors tool J 43690. Rear crankshaft oil-seal installation uses J 35621-B.

Reassembly data: Fastener-tightening tables, torque-angle sequences, production and service clearances, wear limits, crankcase capacities, and sealant specifications accompany the repair procedures. The intake-manifold section warns that incorrect bolt tightening can distort crankshaft bearing-bore alignment and damage the bearings.

Engine installation covers front-mount adjustment and alignment with tool 3851083-0. Coupler inspection, rear-mount washer placement, exhaust-pipe replacement, and engine-height checks are also included.

Engine Diagnosis and Fuel-System Scope

The Vacuum Gauge Readings and Compression Pressure Limit charts help distinguish ring, valve, intake-leak, and exhaust-restriction problems before internal disassembly. Troubleshooting guides address starting faults, rough running, overheating, noises, vibration, and lubrication problems.

Tune-up tables distinguish carbureted GL engines from early and later fuel-injected configurations. The procedures also separate V-belt and serpentine-belt arrangements, while the intake-manifold breakdown identifies GXi-B and later applications.

Separate publications: Detailed electrical, ignition, and fuel-system repair is referred to Electric, Fuel and Ignition Workshop Manual 7743454 and EFI Diagnostic Workshop Manual 7742218. Those volumes, electrical wiring diagrams, and internal sterndrive overhaul are outside this PDF's scope.

Since working on marine powerplants involves high-pressure fuel lines and heavy components, follow the specified fuel-pressure relief and lifting precautions.

Steering and Throttle Controls

The Power Steering System Diagnosis Chart relates noise and steering behavior to possible causes and corrections. Pump-pressure testing is supported by Kent-Moore gauge J-5176-E, with separate procedures for leakage checks, cylinder service, hose connections, and air purging.

Cable guidance explains how restricted casing movement affects hydraulic assistance and why cable length matters. Throttle attachment locations differ between early and later injected engines; the control chapter also covers neutral-start switch testing.

Cooling, Storage and Water-Damage Service

The Sterndrive and Transom Bracket Cooling Schematic and 5.0/5.7GL Engine Cooling Diagram trace water routing alongside separate diagrams for injected and closed-cooled configurations. The additional F suffix identifies closed-cooling versions; revision letters vary by engine family.

Cooling diagnosis covers air or exhaust entering the water supply, restricted flow, thermostat faults, and head-gasket leakage. The engine circulating pump is treated as a replacement unit, while the raw-water supply pump has impeller service procedures. Reversing its hoses can damage the impeller and engine.

Off-season storage, return-to-service preparation, submerged-engine recovery, and PCV valve checks are included. Storage guidance distinguishes carbureted-engine fogging from the method used for fuel-injected engines.

English PDF and Included Pages

One printable 250-page PDF: 228 numbered technical pages, including four Notes pages; 14 Safety pages; four contents and identification pages; two cover pages; and two blank pages. All of these are already included in the 250-page total.
