Volvo Penta 4.3GL/GXi/OSi Engine & EGC Manual Set, 2006 (P/N VPA 7743365)

The engine volume provides mechanical workshop procedures for its listed 4.3L GL, GXi, and OSi variants. The EGC volume addresses electronic-control and driveability diagnosis across a wider engine range, with separate model coverage.

Coverage limits: Internal engine repair applies to the variants listed in the engine volume. The EGC publication does not extend that overhaul coverage to its additional models. Internal sterndrive repair is referred to the separate drive manual.

The engine volume also refers fuel-pressure relief and quick-connect fitting service to EFI Diagnostic Workshop Manual 7742218, which is not included.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: Both manuals have searchable body text and embedded PDF bookmarks. Some engine-volume bookmark labels are generic or blank, and its cover text is not reliably searchable. Small EGC wiring labels require zooming for comfortable reading. Some printed section-contents and Vodia-index page references in the EGC volume do not match this file’s pagination.

The ZIP contains two printable English PDFs with 578 pages total. These counts already include the engine volume’s 14-page safety section, five notes pages and five blank pages across the set, plus the original covers, front matter, and one-page Vodia index.

4.3L Engine Work and EGC Fault Diagnosis

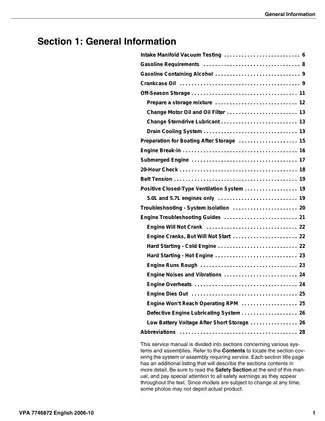

These are selected workshop topics, rather than a complete contents list. Further sections address off-season storage, recommissioning, break-in, and submerged-engine handling.

• Engine repair: Step-by-step procedures for cylinder heads, valve train, timing chain, balance shaft, lubrication components, and piston, connecting-rod, and crankshaft service.

• Steering and controls: Power-steering pump and cylinder service, air purging, pressure and leakage diagnosis, twin-engine tie-bar adjustment, SAE cables, and neutral-start-switch tests.

• Cooling systems: Raw-water and closed-cooling troubleshooting, system isolation, supply-pump and impeller service, configuration-specific draining, and thermostat replacement.

• Engine installation: Removal and reinstallation, rear mounts, alignment, minimum engine-height checks, and related exhaust, fuel, cooling, and electrical connections.

• EGC diagnostics: Scan-tool operation, symptom charts, 111 code-specific DTC sections, ECM limit tables, circuit diagrams, and displacement-specific ECM connector identification.

This set is suited to technicians familiar with engine measurement and electrical circuit testing, with access to the diagnostic equipment and specialist tools described in the manuals.

4.3L Mechanical Repair and Bench Work

The General Mechanical section supports bench and machine-shop work with cylinder-bore inspection, piston selection and pin-clearance checks, ring installation, camshaft-bearing service, valve and seat reconditioning, and crankshaft and connecting-rod bearing measurement. Gasket and sealant practices, thread repair, and block boring and honing are also covered.

Intake and timing: The engine chapter details GXi intake-manifold disassembly, distributor removal and installation, crankshaft-balancer and front-cover work, timing-chain and sprocket installation, balance-shaft setup, and camshaft inspection. Camshaft-bearing procedures identify tool J 33049.

Related procedures address exhaust manifolds, the starter, oil pan and pump, circulating and raw-water pumps, engine coupler, flywheel, and rear oil seal. Torque tables, inspection limits, clearances, lubrication data, and tune-up specifications accompany the repair sections.

Steering, Cooling, and Engine Alignment

Steering diagnosis distinguishes hydraulic pressure and leakage faults from cable-installation problems and feedback at the helm. Pump-pulley service identifies tools 9995443-0 and 9995444-8.

Cooling illustrations include the Sterndrive and Transom Bracket Cooling Schematic and 4.3GXi-BF/CF/DF/EF Engine Cooling Diagram. The troubleshooting section follows water-supply restrictions and air or exhaust-gas entry into the cooling circuit.

Engine-removal guidance relates compartment clearance and mount work to the need for sterndrive removal and realignment. Model-identification information explains engine, transom-bracket, and sterndrive matching; alignment procedures identify tool 3851083-0.

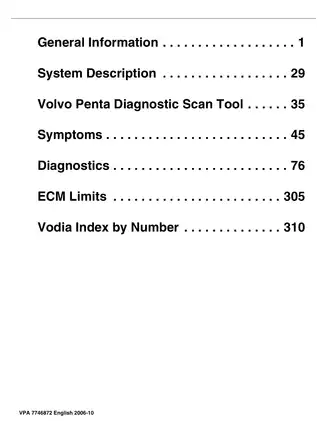

Scan-Tool Tests and Electronic Fault Isolation

The diagnostic volume covers visual inspection, electrostatic-discharge precautions, harness routing, ECM self-diagnostics, MIL operation, and the OBD system check. Its symptom charts and circuit tests help relate running problems to sensor signals, wiring condition, and mechanical checks before replacement parts are selected.

Scan-tool operation: Single- and twin-engine connections, master/slave communication, code reading, engine hours, and ECM identification are explained. Separate data lists distinguish 4.3/5.0/5.7L and 8.1L systems.

Monitor menus include ECM Data, Warning Monitor, Sea Trial Monitor, Injector Monitor, and the ETC-only Throttle Monitor. Output tests cover spark kill, injector kill, spark fire, injector fire, relay activation, compression-test mode, idle-speed control, and drive-by-wire tracking.

Symptom and circuit diagnosis: Workflows address hard starting, surging, hesitation, detonation, lack of power, missing, rough idle, stalling, backfire, dieseling, and poor fuel economy. DTC sections cover temperature and pressure sensors, TPS/TCP/IVS and electronic throttle circuits, crank/cam and knock sensors, injectors, relays, reference voltage, oil pressure, system voltage, trim and gauge outputs, the buzzer, tachometer, CAN communication, and engine-protection faults.

Supporting references include displacement-specific ECM connector charts, IAT/TMAP temperature-versus-resistance tables, CKP/CMP sensor circuits, and TPS/TCP/IVS drive-by-wire diagrams. ECM Limits tables document programmed fault criteria, and a Vodia SPN/FMI index is included.

Diagnostic equipment references identify scan tool P/N 3851228, fuel-pressure kit P/N 3855533, high-pressure EGC adapter P/N 3862357, and low-pressure adapter P/N 3855354.

Repair Cautions and Live Testing

The mechanical volume warns that abrasive gasket-face cleaning can introduce grit that damages internal engine parts, while crossed raw-water-pump hoses can damage the impeller and engine. Timing and balance-shaft instructions also address indexing and the risk of dislodging the rear camshaft expansion plug during sprocket installation.

Live EGC tests involve fuel vapor, ignition output, rotating machinery, and commanded throttle movement. Compression-test mode must be exited correctly—disconnecting the scan tool can leave fuel and ignition disabled—and spark-fire testing carries an explicit backfire and external-flame warning.

Examples of Crankshaft and Valve-Spring Specifications

For the covered 4.3L engines, the mechanical specifications list crankshaft end play of 0.050–0.20 mm (0.002–0.008 in), alongside bearing-clearance and journal-inspection data.

Cylinder-head inspection data specify a closed valve-spring load of 338–374 N at a test height of 43.2 mm. The accompanying spring-testing procedure distinguishes an acceptable spring from one requiring replacement.
