2003–2004 Volvo Penta 3.0 GL/GS Gasoline Marine Engine Workshop Manual (P/N 7743358)

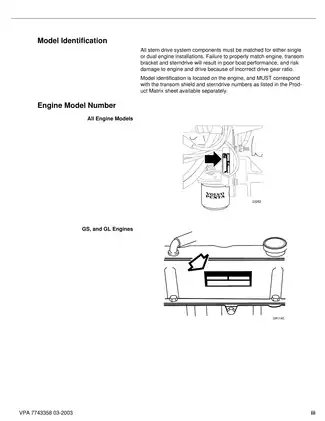

Volvo Penta workshop manual VPA 7743358 (English, 03-2004) covers 2003–2004 3.0 GS-A/B/C and 3.0 GL-A/B/C gasoline marine engines. The cooling and storage sections also reference 3.0 GL-D.

• Engine repair: Cylinder-head disassembly, valve lash adjustment, hydraulic valve lifter service, camshaft replacement, and crankshaft, piston, and connecting-rod inspection and assembly.

• Engine diagnosis: Compression and intake-vacuum testing, system isolation, and troubleshooting for hard starting, rough running, overheating, and lubrication faults.

• Power steering: Pump removal and pressure testing, steering cylinder servicing, air purging, steering cable installation, and twin-engine tie bar adjustment.

• Throttle and shift controls: SAE cable installation, shift cable stroke checks, throttle linkage adjustment, and electrical and mechanical neutral start switch tests.

• Cooling and storage: Raw water supply pump impeller replacement, circulating pump inspection, thermostat testing, high-rise exhaust elbow replacement, and off-season winterization.

• Engine installation: Removal and reinstallation, engine alignment, coupler replacement, rear engine mount servicing, and minimum engine-height checks.

This manual suits marine technicians and experienced owners equipped for engine measurement and mechanical service; internal repair procedures call for specialist tools and workshop equipment.

Engine Mechanical and Component Reference

Cylinder head evaluation includes valve-guide measurement, valve-seat reconditioning, and valve spring inspection. Camshaft and crankshaft sections cover bearing clearances, journal taper, runout, and related inspection limits.

Piston selection is supported by cylinder boring and honing procedures, with component-specific torque tables and exploded views accompanying the repair instructions. Marine assembly requirements distinguish the cylinder head gasket and circulating pump from automotive replacements.

The installation chapter identifies alignment tool 3851083-0 and explains the relationship between coupler replacement, gimbal bearing alignment, and engine mount adjustment.

Diagnostic Charts and Service Boundaries

The Vacuum Gauge Readings, Compression Pressure Limit, and System Isolation charts help separate mechanical faults from ignition or fuel-system causes before components are replaced.

Detailed ignition and fuel-system work is referred to separate documentation, including Electric, Fuel and Ignition Workshop Manual P/N 7743454, which is not included. Sterndrive removal is also referred to a separate drive and transom bracket manual.

Steering and Control System Details

The Power Steering System Diagnosis Chart addresses noise, kickback, and jerky assistance. Pump procedures distinguish V-belt and serpentine-belt installations and identify pressure gauge J-5176-E.

Steering cylinder servicing covers pivot bushings and the rod clevis. The manual warns that packing the bushing pockets with grease can hydraulically lock the anchor screws and break the transom plate.

Shift cable instructions distinguish right-hand SX/DP-S applications from left-hand SX installations, so cable direction can be matched to the drive configuration.

Cooling Flow, Winterization, and Water Ingestion

The Sterndrive and Transom Bracket Cooling Schematic and 3.0GS/GL Engine Cooling Diagram trace water flow through the drive, engine, and exhaust. The engine diagram identifies a cooling connection omitted on the 3.0 GL-C.

GS-B/C and GL flushing arrangements are described separately. Running a GS-B/C during its specified flushing procedure can damage the raw water pump impeller because that connection does not supply water to the pump.

The circulating pump is inspected and replaced as a unit. Storage and recovery coverage also includes recommissioning, submerged engines, and water ingestion into the cylinders.

Marine fuel-system work requires ventilation and ignition precautions because gasoline vapor can accumulate in the bilge.

Clearance and Oil Pressure Examples

These examples are a small selection of the manual's engine inspection and operating specifications.

Intake valve stem clearance has a listed limit of 0.0037 in (0.09398 mm). Camshaft end play is specified at 0.003–0.008 in (0.0762–0.2032 mm).

Minimum oil pressure with the engine hot is 24.0 psig (165.5 kPa) at 4,000 RPM. The specification table also lists minimum pressures at lower engine speeds.

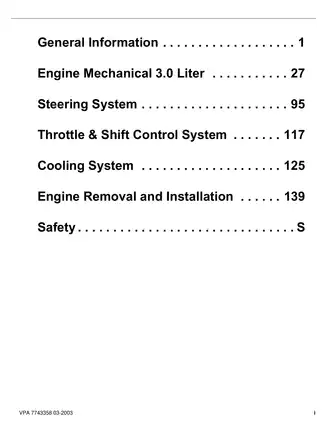

PDF Navigation and Page Breakdown

Text search and diagram detail: Main-section text is searchable; cover lettering is not reliably searchable. There are no embedded PDF bookmarks. Small steering schematic callouts are clear when enlarged.

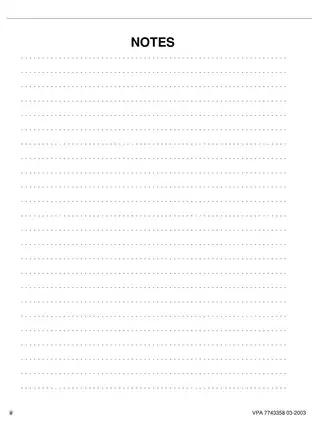

Supplied as one printable 176-page PDF in English: 154 numbered service pages, 14 safety pages, four preliminary pages, two covers, and two blank pages. The two notes pages are already counted within the service and preliminary sections.
