1988–1997 John Deere GT242, GT262, GT275 Lawn and Garden Tractors Technical Manual (P/N TM1582)

Covers 1988–1997 John Deere GT242, GT262, and GT275 lawn and garden tractors, including gear and hydrostatic transmission models. John Deere technical manual TM1582 (15JUL97) supersedes the December 1994 revision and TM1515 (01SEPT92).

Text search and diagram navigation: The PDF has searchable text and bookmarks for sections, subtopics, and the index. Some labels within illustrations are not searchable. Small wire codes and connector numbers are best read with zoom.

• Engine repair: Kawasaki FC420V and FC540V removal, internal overhaul, valve service, crankshaft end-play adjustment, and automatic compression release testing.

• Fuel system: Carburetor rebuilding, fuel-pump pressure and flow tests, governor adjustment, and separate procedures for non-CARB/EPA and CARB/EPA carburetors.

• Electrical diagnosis: Early and later wiring diagrams, interlock connector charts, starting and charging tests, and electric PTO clutch testing and air-gap adjustment.

• Powertrain repair: Separate gear and hydrostatic transmission teardown, differential inspection, drive-belt adjustment, and GT275 neutral-creep correction.

• Steering and brakes: Steering linkage alignment, sector-gear replacement, wet-brake inspection, parking-brake linkage adjustment, and neutral-start interlock checks.

• Mower decks: Service for the 38-inch, 44-inch rear-discharge, and 48-inch decks, including spindles, sheaves, gauge wheels, and uneven-cut diagnosis.

John Deere wrote this technical manual for experienced technicians.

Engine Overhaul and Fuel-System Diagnosis

The engine sections cover the cylinder head assembly, piston and connecting rod, camshaft and tappets, reciprocating balancer, crankshaft bearings, and oil pump. Repair specifications include piston-pin and rod-bearing clearances, camshaft wear limits, valve-clearance settings, fluid capacities, and cylinder-head tightening sequences.

Chasing an erratic running condition or a hard-start? The Engine and Fuel System Troubleshooting Chart connects those symptoms to fuel, ignition, compression, lubrication, and cooling checks, helping narrow the cause before engine teardown.

Valve-guide replacement calls for the JDG504 driver. Carburetor coverage distinguishes early horizontal and later vertical fuel-shutoff solenoids. The emissions-carburetor instructions specify factory-trained technicians authorized to service CARB/EPA carburetors for repair, jet replacement, and adjustment.

Ignition Variants and Circuit Fault Tracing

Early engines use separate ignition coils and ignitor modules; later engines use an integrated assembly. The later unit cannot directly replace the early arrangement because the flywheel magnet polarity differs.

The Standard Electrical Schematic and W1 Main Wiring Harness drawings show early and later configurations. Connector charts identify circuit numbers, wire colors, and termination points. Diagnostic tables pair test locations with normal readings and follow-up checks for starting, charging, PTO, lighting, and fuel-shutoff faults.

Gear and Hydrostatic Transmission Repair

GT242 and GT262 gear-transaxle procedures cover shifter-key tension checks using the JDST28 belt tension gauge, reduction-shaft shimming, input-gear backlash, and differential assembly. The Transaxle Cross Section shows how the shift keys, reverse chain, and reduction gears fit together.

GT275 coverage extends to the charge pump, pump and motor rotating groups, valve plates, freewheel valves, and internal filter. The Hydrostatic System Operation schematic explains the oil circuits; symptom charts address lost drive, erratic speed, and neutral creep, including checks for air in the system.

The hydrostatic repair notes warn that scratched center-case, valve-plate, or cylinder-block mating surfaces can cause early transmission failure.

Steering Alignment and Wet Brakes

Steering repair includes drag-link adjustment, sector-and-pinion alignment, and the left-turn stop modification. Brake procedures distinguish the gear models from the GT275, whose internal brake assembly requires transmission disassembly for inspection and repair.

Mower Spindles and Lift Linkage

The spindle cross-sections distinguish early single-blade-with-spacer and dual-blade arrangements on 44-inch decks from later dual-blade rear-discharge mulching versions. Repair notes warn that clamping the hex end of a spindle shaft in a vise can damage the shaft and impair blade operation.

Deck coverage also includes draft arms, primary and secondary belt drives, bearing and seal installation, and lift-assist/depth-stop linkage. Always verify current shop safety protocols and properly secure the tractor and mower deck before hands-on diagnostic work.

Printable PDF and Included Pages

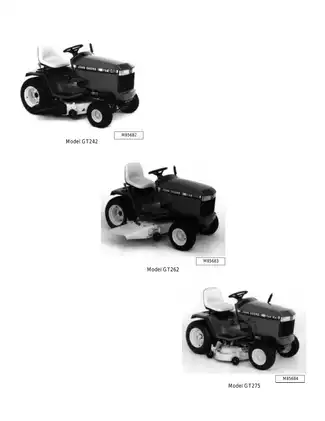

The ZIP contains one English-language, printable 429-page PDF. That total includes the cover and model-photo page (2 pages), 14 additional split-page views of seven wide electrical illustrations, 12 intentionally blank pages, and the five-page index; these pages are already included in the total.
