Fiat 780, 780 DT, 880, 880 DT Tractor Workshop Manual – 1979 (P/N 603.54.201)

Fiat factory workshop manual P/N 603.54.201, October 1979 edition, for the 780, 780 DT, 880 and 880 DT tractors. It covers engine and power train repair, front axles, steering, hydraulic lift systems and electrical reference data.

PDF Access and Diagram Detail

Search, navigation and wiring labels: Manual text is not searchable, and there are no embedded PDF bookmarks. The two wiring diagrams are sideways; small terminal numbers and wire-color codes require page rotation and zooming.

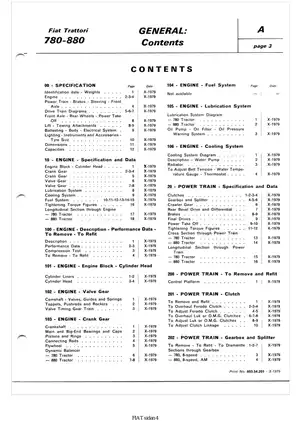

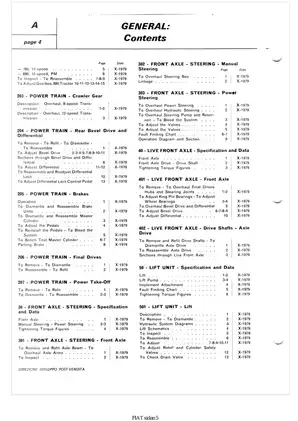

One printable, English-language 251-page PDF, including the original cover, one foreword page, three contents pages and 27 blank or header-only pages. These pages are already included in the total.

Engine, Drivetrain and Hydraulic Workshop Coverage

The following selected topics show the repair coverage; they are not a complete contents list. Further subjects include three-point linkage leveling-box service and auxiliary lift-cylinder specifications.

• Engine repair: Engine removal and installation, compression testing, cylinder-liner and cylinder-head work, crankshaft inspection, valve gear, pistons, rings and dynamic balancers.

• Clutch and transmission: Tractor splitting, Ferodo, LUK and O.M.G. clutch overhaul and adjustment, gearbox and splitter rebuilding, and crawler-gear service.

• Rear axle and brakes: Bevel-drive and differential adjustment, differential-lock setup, final-drive repair, wet-disc brake service, master-cylinder bench tests and hydraulic bleeding.

• Front axle and steering: Conventional and live-front-axle overhaul, wheel-bearing and kingpin adjustment, manual steering-box repair, hydraulic steering tests and fault-finding charts.

• Hydraulic lift: Lift-unit rebuilding, draft and position-control adjustment, pump output tests, relief and safety-valve checks, and remote-control-valve leakage tests.

• Fuel-system data: Bosch and C.A.V. injection-pump calibration tables, test conditions and engine-number distinctions; the separate fuel-system overhaul chapter is unavailable.

• Electrical reference: Wiring diagrams with and without accessories, cable-color keys, Bosch and Marelli alternator and starter test data, and C.A.V. start-retard linkage adjustment.

This manual is suited to mechanics experienced in tractor overhaul, with access to lifting equipment, measuring instruments and the special tools specified for assembly and testing.

Engine Overhaul and Fuel-System Limits

Engine construction: The dry-liner Fiat engine in the 780 differs from the wet-liner OM engine in the 880. Cylinder-head work includes injector protrusion checks, valve-seat dimensions, gasket positioning and staged fastener tightening. Crank-gear sections cover connecting rods, bearing clearances, flywheel positioning and model-specific balancer timing. Longitudinal engine sections show the two builds.

Lubrication and cooling-system diagrams accompany oil-pressure warning checks, water-pump overhaul, radiator leakage testing, belt-tension adjustment and thermostat checks. The 880 oil-pump section specifies complete-pump replacement if defective.

Injection equipment: Calibration sheets specify bench-test equipment, delivery and leakage checks for the identified pumps. These are reference data, not a substitute for the missing Section 104 fuel-system overhaul instructions.

Clutch, Gearbox and Brake Work

Step-by-step procedures cover control-platform removal and refitting, tractor separation for clutch access, and internal gearbox disassembly and reassembly. Clutch sections distinguish bench adjustment from adjustment on the flywheel and identify fixtures such as universal clutch tool 293650.

Serial-specific gearbox bearing procedures and rear bevel-drive shim calculations help a shop select the correct setup for the assembly being serviced. Power train schematics and sectional views show the associated shafts and gears.

The 880 gearbox removal instructions identify a bearing-damage risk during drive-shaft withdrawal. Brake coverage goes beyond pedal adjustment, with hydraulic circuit diagrams, check-valve leakage tests, compensating-valve checks and parking-brake service.

Steering and Hydraulic Lift Diagnosis

Steering variants: Manual recirculating-ball steering and Danfoss Orbitrol hydraulic steering receive separate treatment. The hydraulic chapter distinguishes fully dismantlable Weber cylinders from Calzoni/Sima units with limited disassembly, and pairs valve tests with symptom/cause/remedy charts.

Lift diagnosis: Hydraulic lift system diagrams and control-linkage schematics explain draft, position, float and combined control. Troubleshooting covers weak lifting, erratic movement and failure to hold a raised load, supported by pump-output charts and unload-valve leakage testing.

Pump sections distinguish A25X and A22X lift pumps from the C18X steering pump. The lift-pump refitting instructions flag seizure during initial service if the pump is left unprimed. Remote-valve coverage includes single-acting, double-acting and trailer-brake applications, with spool-return and leakage tests.

Tractor splitting and hydraulic testing require suitable supports, lifting equipment and precautions against pressurized fluid.

Examples of Engine Clearance Data

The engine tables list normal intake-valve clearance at 0.25 mm for both engine families, cold or warm. Exhaust clearances differ: 0.35 mm for the 780 and 0.30 mm for the 880.

For the 780, the piston-to-liner clearance specification is 0.175–0.205 mm; the separate maximum wear clearance is 0.30 mm. The liner inspection and piston-measurement sections supply the related measurement locations.
